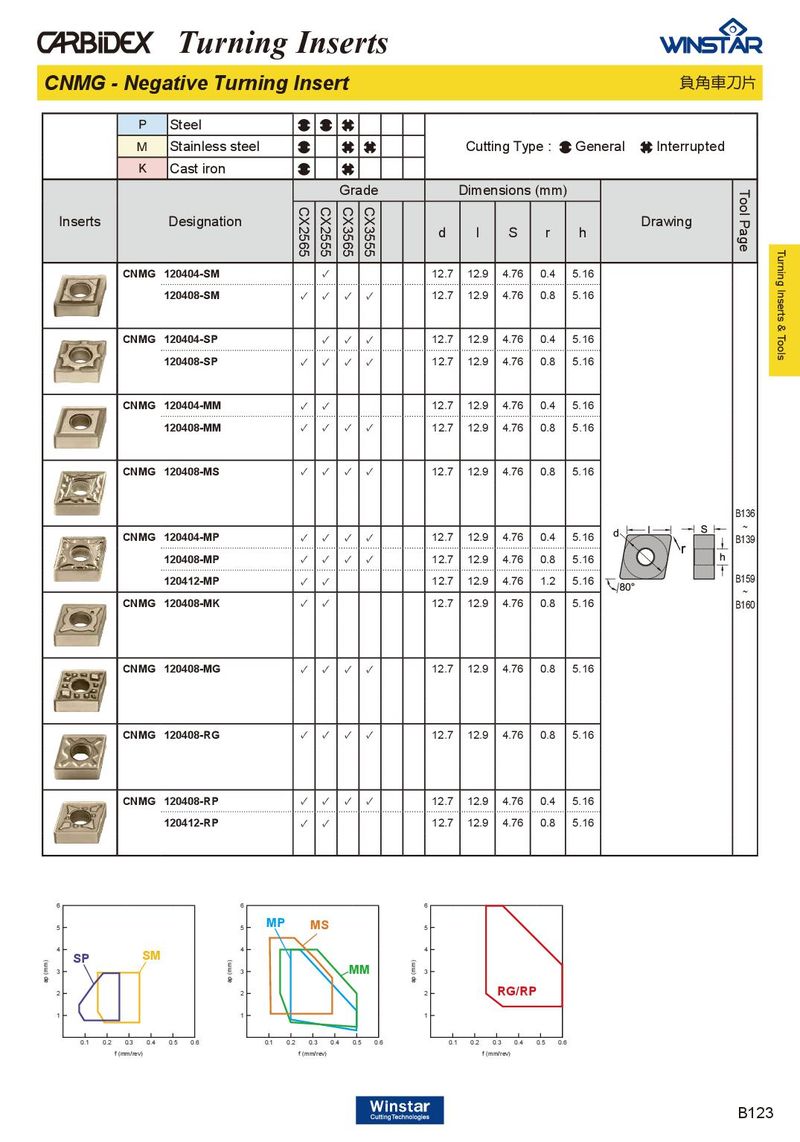

CNMG - Negative Turning Insert 負角車刀片
| P | Steel | ||||||||||||
| M | Stainless steel | Cutti | ng Ty | pe : | Gen | eral Interrupted | |||||||
| K | Cast iron | ||||||||||||
| C | C | Gr C | ade C | Dime | nsions | (mm | ) | Tool | |||||
| Inserts | Designation | X2565 | X2555 | X3565 | X3555 | d | l | S | r | h | Drawing | Page | |
| CNMG | 120404-SM | ✓ | 12.7 | 12.9 | 4.76 | 0.4 | 5.16 | ||||||
| 120408-SM | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | ||||
| CNMG | 120404-SP | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.4 | 5.16 | ||||
| 120408-SP | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | ||||
| CNMG | 120404-MM | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.4 | 5.16 | |||||
| 120408-MM | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | ||||
| CNMG | 120408-MS | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | |||
| B136 | |||||||||||||
| CNMG | 120404-MP | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.4 | 5.16 | ~ B139 | ||
| 120408-MP | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | ||||
| 120412-MP | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 1.2 | 5.16 | B159 ~ | |||||
| CNMG | 120408-MK | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | B160 | ||||
| CNMG | 120408-MG | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | |||
| CNMG | 120408-RG | ✓ | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.16 | |||
| CNMG | 120408-RP 120412-RP | ✓ ✓ | ✓ ✓ | ✓ | ✓ | 12.7 12.7 | 12.9 12.9 | 4.76 4.76 | 0.4 0.8 | 5.16 5.16 |
| 6 | 6 | 6 |
| MS MP | ||
| 5 | 5 | 5 |
| 4 | SM SP 4 | 4 |
| MM | ||
| 3 | 3 | 3 |
| RG/RP | ||
| 2 | 2 | 2 |
| 1 | 1 | 1 |
f (mm/rev) f (mm/rev) f (mm/rev)
