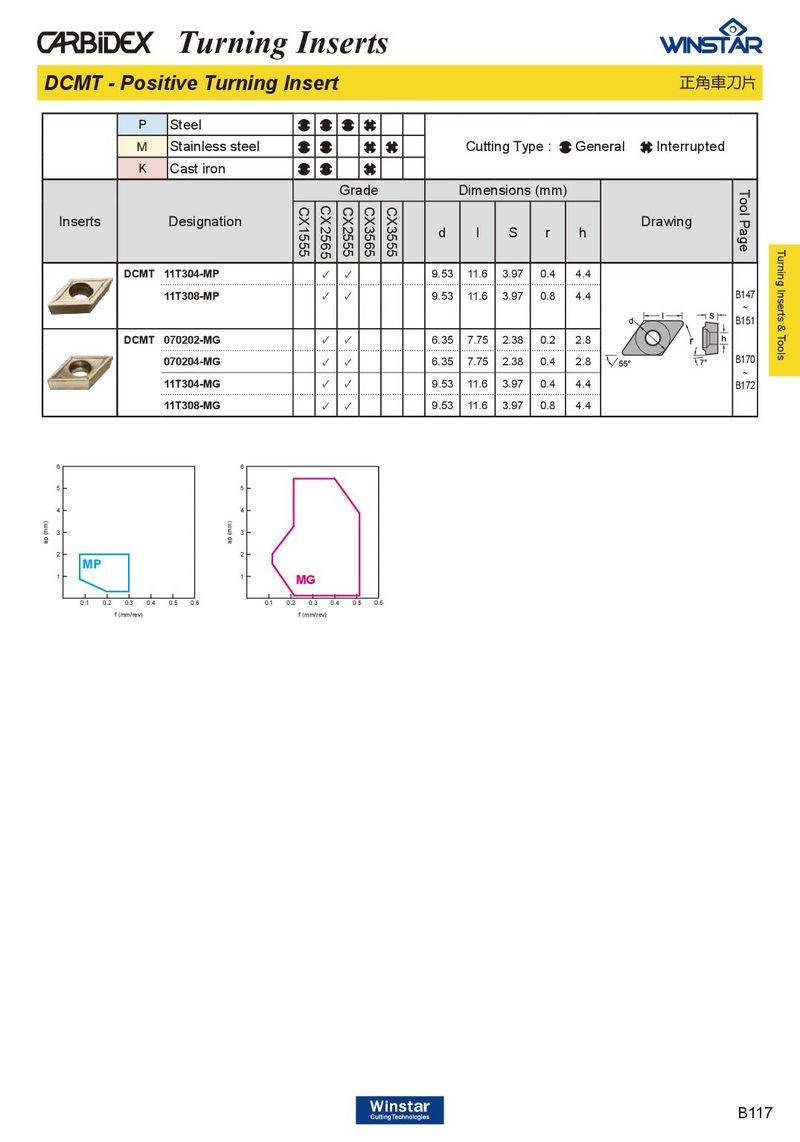

| DCMT - | Pos | itive Turning | Inse | r | t | 正角車 | 刀片 | |||||||
| P | Steel | |||||||||||||
| M | Stainless steel | Cutti | ng Ty | pe : | Gen | eral Inte | rrupted | |||||||
| K | Cast iron | |||||||||||||
| Grade | Dimen | sions | (mm | ) | To | |||||||||
| Inserts | Designation | CX1555 | CX2565 | CX2555 CX3565 | CX3555 | d | l | S | r | h | Drawi | ng | ol Page | |
| DCMT | 11T304-MP 11T308-MP | ✓ ✓ | ✓ ✓ | 9.53 9.53 | 11.6 11.6 | 3.97 3.97 | 0.4 0.8 | 4.4 4.4 | B147 ~ B151 | |||||
| DCMT | 070202-MG | ✓ | ✓ | 6.35 | 7.75 | 2.38 | 0.2 | 2.8 | ||||||
| 070204-MG | ✓ | ✓ | 6.35 | 7.75 | 2.38 | 0.4 | 2.8 | B170 ~ | ||||||
| 11T304-MG | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | B172 | ||||||
| 11T308-MG | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.8 | 4.4 |
| 6 | 6 |
| 5 | 5 |
| 4 | 4 |
| 3 | 3 |
| 2 | MP 2 |
| 1 | MG 1 |
0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6
f (mm/rev) f (mm/rev)
