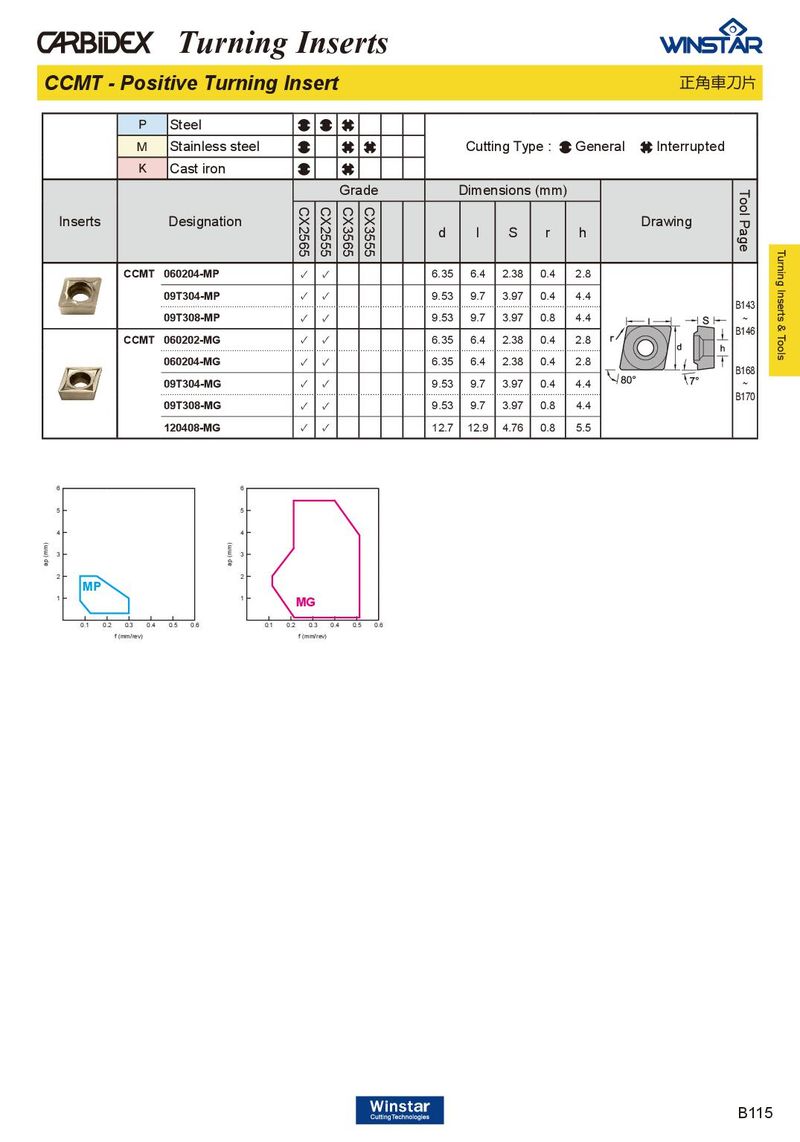

Turning Inserts CCMT - Positive Turning Insert 正角車刀片 P Steel M Stainless steel Cutting Type : General Interrupted K Cast iron Tool Page Grade Dimensions (mm) CX2565 CX2555 CX3565 CX3555 Inserts Designation Drawing d l S r h Turning Inserts & Tools CCMT 060204-MP ✓ ✓ 6.35 6.4 2.38 0.4 2.8 09T304-MP ✓ ✓ 9.53 9.7 3.97 0.4 4.4 B143 09T308-MP ✓ ✓ 9.53 9.7 3.97 0.8 4.4 ~ B146 CCMT 060202-MG ✓ ✓ 6.35 6.4 2.38 0.4 2.8 060204-MG ✓ ✓ 6.35 6.4 2.38 0.4 2.8 B168 09T304-MG ✓ ✓ 9.53 9.7 3.97 0.4 4.4 ~ B170 09T308-MG ✓ ✓ 9.53 9.7 3.97 0.8 4.4 120408-MG ✓ ✓ 12.7 12.9 4.76 0.8 5.5 6 6 5 5 4 4 3 3 ap (mm) ap (mm) 2 2 MP 1 1 MG 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) B115
