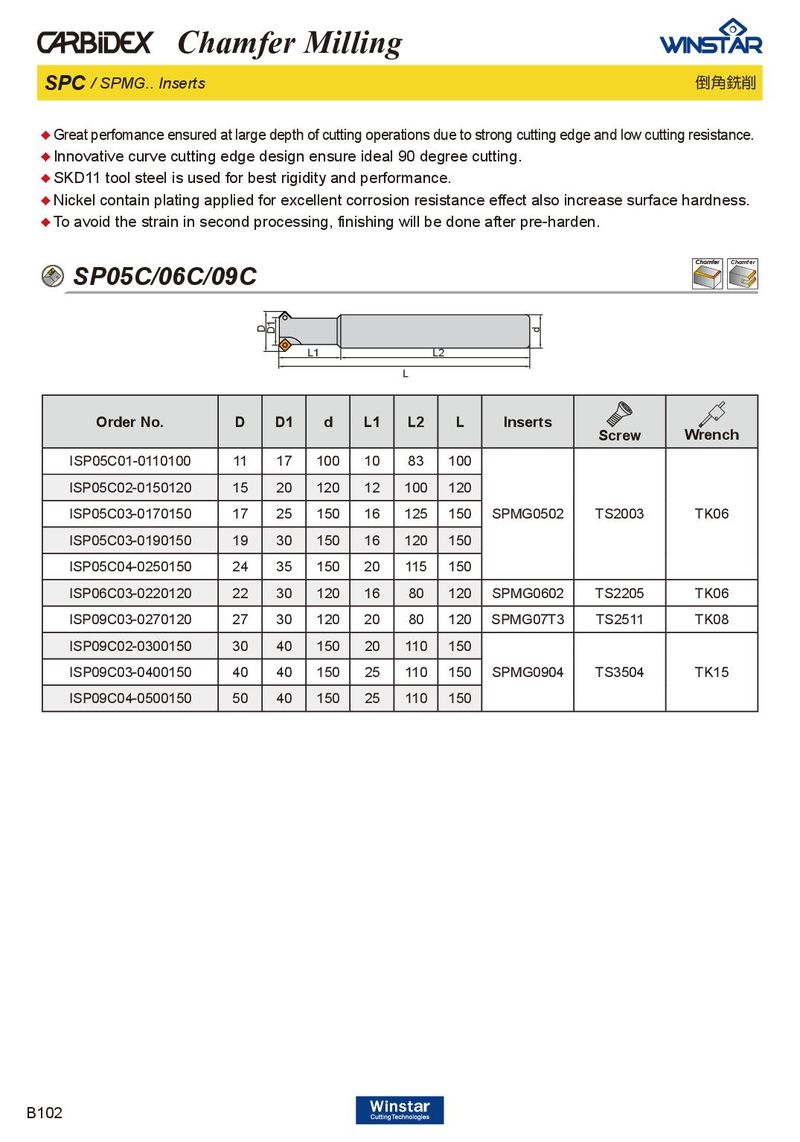

Chamfer Milling SPC / SPMG.. Inserts 倒角銑削 ♦ Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance. ♦ Innovative curve cutting edge design ensure ideal 90 degree cutting. ♦ SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. Chamfer SP05C/06C/09C D D1 d L1 L2 L Order No. D D1 d L1 L2 L Inserts Screw Wrench ISP05C01-0110100 11 17 100 10 83 100 ISP05C02-0150120 15 20 120 12 100 120 ISP05C03-0170150 17 25 150 16 125 150 SPMG0502 TS2003 TK06 ISP05C03-0190150 19 30 150 16 120 150 ISP05C04-0250150 24 35 150 20 115 150 ISP06C03-0220120 22 30 120 16 80 120 SPMG0602 TS2205 TK06 ISP09C03-0270120 27 30 120 20 80 120 SPMG07T3 TS2511 TK08 ISP09C02-0300150 30 40 150 20 110 150 ISP09C03-0400150 40 40 150 25 110 150 SPMG0904 TS3504 TK15 ISP09C04-0500150 50 40 150 25 110 150 B102
