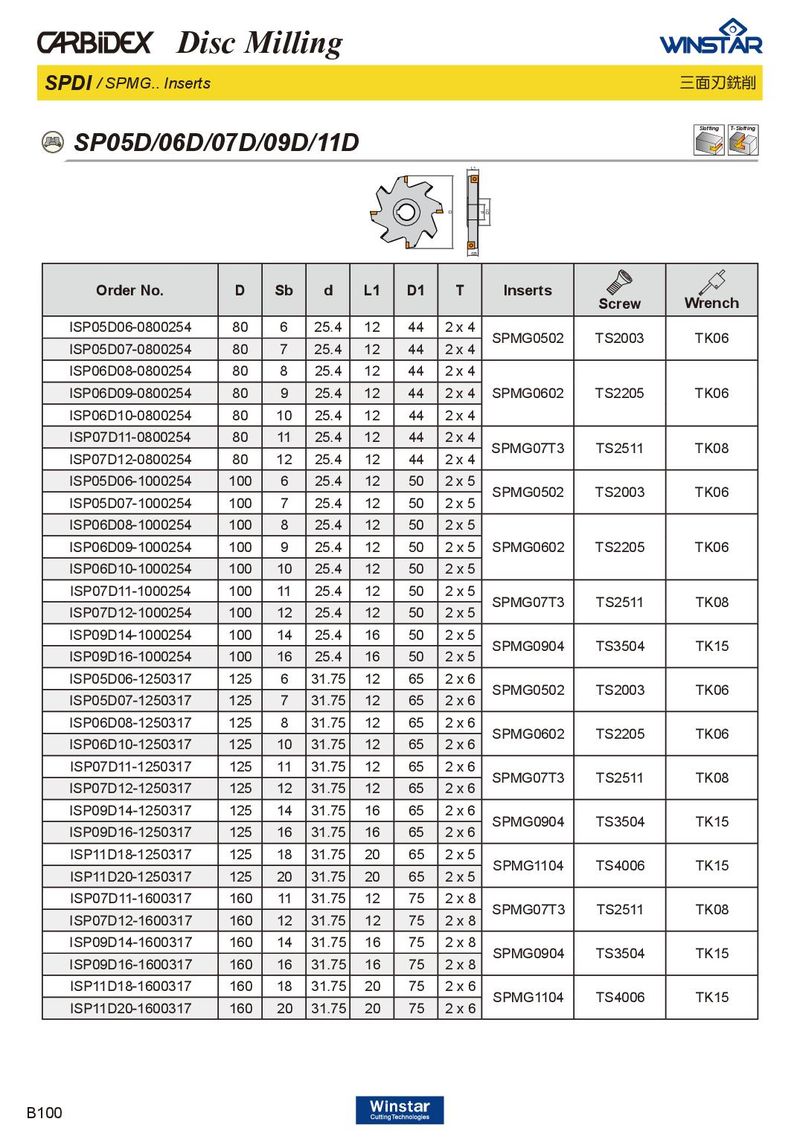

Disc Milling SPDI / SPMG.. Inserts 三面刃銑削 Slotting T-Slotting SP05D/06D/07D/09D/11D L1 D d D1 SB Order No. D Sb d L1 D1 T Inserts Screw Wrench ISP05D06-0800254 80 6 25.4 12 44 2 x 4 SPMG0502 TS2003 TK06 ISP05D07-0800254 80 7 25.4 12 44 2 x 4 ISP06D08-0800254 80 8 25.4 12 44 2 x 4 ISP06D09-0800254 80 9 25.4 12 44 2 x 4 SPMG0602 TS2205 TK06 ISP06D10-0800254 80 10 25.4 12 44 2 x 4 ISP07D11-0800254 80 11 25.4 12 44 2 x 4 SPMG07T3 TS2511 TK08 ISP07D12-0800254 80 12 25.4 12 44 2 x 4 ISP05D06-1000254 100 6 25.4 12 50 2 x 5 SPMG0502 TS2003 TK06 ISP05D07-1000254 100 7 25.4 12 50 2 x 5 ISP06D08-1000254 100 8 25.4 12 50 2 x 5 ISP06D09-1000254 100 9 25.4 12 50 2 x 5 SPMG0602 TS2205 TK06 ISP06D10-1000254 100 10 25.4 12 50 2 x 5 ISP07D11-1000254 100 11 25.4 12 50 2 x 5 SPMG07T3 TS2511 TK08 ISP07D12-1000254 100 12 25.4 12 50 2 x 5 ISP09D14-1000254 100 14 25.4 16 50 2 x 5 SPMG0904 TS3504 TK15 ISP09D16-1000254 100 16 25.4 16 50 2 x 5 ISP05D06-1250317 125 6 31.75 12 65 2 x 6 SPMG0502 TS2003 TK06 ISP05D07-1250317 125 7 31.75 12 65 2 x 6 ISP06D08-1250317 125 8 31.75 12 65 2 x 6 SPMG0602 TS2205 TK06 ISP06D10-1250317 125 10 31.75 12 65 2 x 6 ISP07D11-1250317 125 11 31.75 12 65 2 x 6 SPMG07T3 TS2511 TK08 ISP07D12-1250317 125 12 31.75 12 65 2 x 6 ISP09D14-1250317 125 14 31.75 16 65 2 x 6 SPMG0904 TS3504 TK15 ISP09D16-1250317 125 16 31.75 16 65 2 x 6 ISP11D18-1250317 125 18 31.75 20 65 2 x 5 SPMG1104 TS4006 TK15 ISP11D20-1250317 125 20 31.75 20 65 2 x 5 ISP07D11-1600317 160 11 31.75 12 75 2 x 8 SPMG07T3 TS2511 TK08 ISP07D12-1600317 160 12 31.75 12 75 2 x 8 ISP09D14-1600317 160 14 31.75 16 75 2 x 8 SPMG0904 TS3504 TK15 ISP09D16-1600317 160 16 31.75 16 75 2 x 8 ISP11D18-1600317 160 18 31.75 20 75 2 x 6 SPMG1104 TS4006 TK15 ISP11D20-1600317 160 20 31.75 20 75 2 x 6 B100
