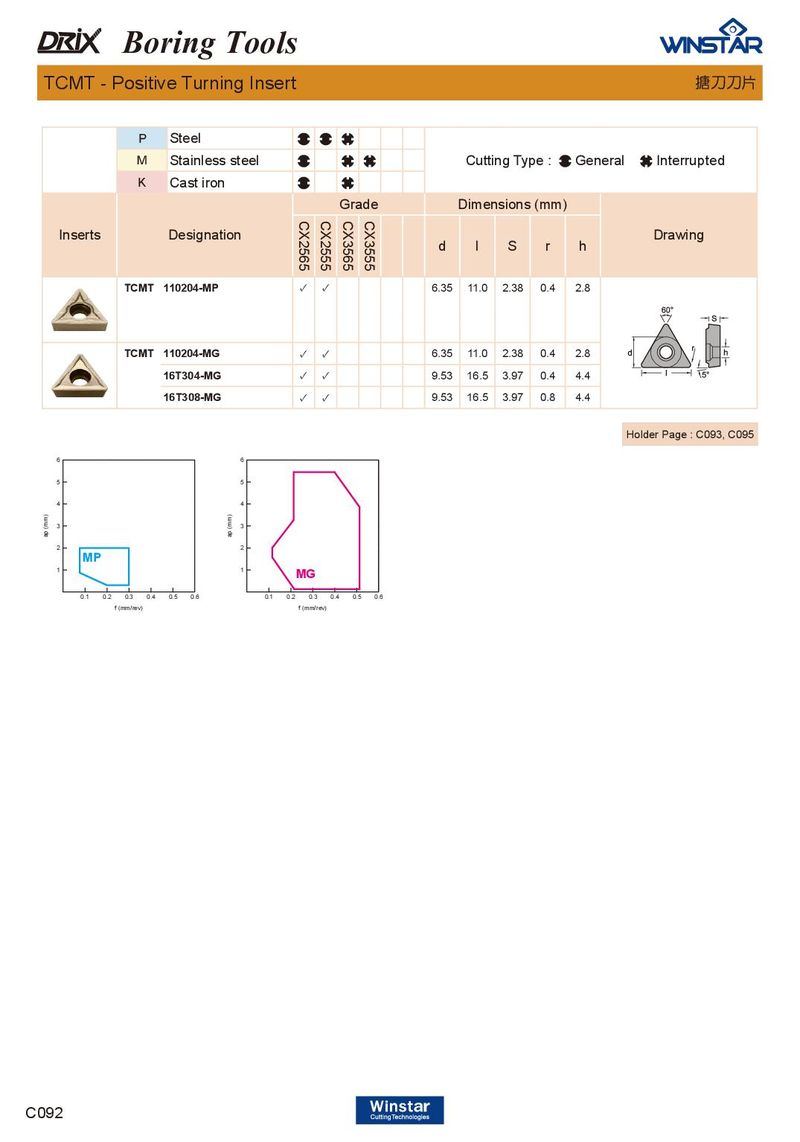

| TCMT - | Positi | ve Turning Ins | ert | 搪刀刀片 | |||||||
| P | Steel | ||||||||||
| M | Stainless steel | Cutti | ng Typ | e : | General | Interrupted | |||||
| K | Cast iron | ||||||||||
| Grade | Dimen | sions | (mm) | ||||||||
| Inserts | Designation | CX2565 | CX2555 | CX3565 CX3555 | d | l | S | r | h | Drawing | |
| TCMT | 110204-MP | ✓ | ✓ | 6.35 | 11.0 | 2.38 | 0.4 | 2.8 | |||
| TCMT | 110204-MG | ✓ | ✓ | 6.35 | 11.0 | 2.38 | 0.4 | 2.8 | |||
| 16T304-MG | ✓ | ✓ | 9.53 | 16.5 | 3.97 | 0.4 | 4.4 | ||||
| 16T308-MG | ✓ | ✓ | 9.53 | 16.5 | 3.97 | 0.8 | 4.4 | ||||
| Holder Page : C093, C095 |
| 6 | 6 |
| 5 | 5 |
| 4 | 4 |
| 3 | 3 |
| 2 | MP 2 |
| 1 | MG 1 |
0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6
f (mm/rev) f (mm/rev)
