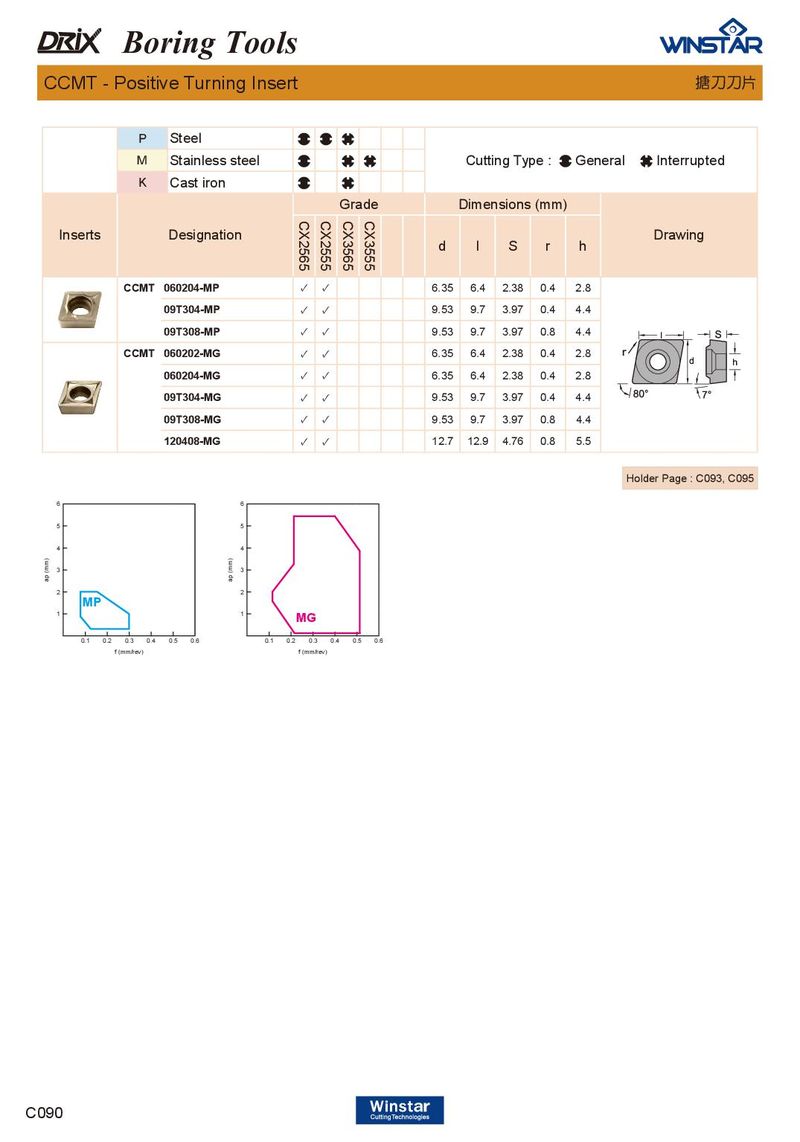

| CCMT - | Positi | ve Turning Ins | ert | 搪刀刀片 | ||||||
| P | Steel | |||||||||
| M | Stainless steel | Cutti | ng Ty | pe : | Gen | eral Interrupted | ||||
| K | Cast iron | |||||||||
| Grade | Dime | nsions | (mm | ) | ||||||
| Inserts | Designation | CX2565 | CX2555 CX3565 CX3555 | d | l | S | r | h | Drawing | |
| CCMT | 060204-MP | ✓ | ✓ | 6.35 | 6.4 | 2.38 | 0.4 | 2.8 | ||
| 09T304-MP | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.4 | 4.4 | |||
| 09T308-MP | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.8 | 4.4 | |||
| CCMT | 060202-MG | ✓ | ✓ | 6.35 | 6.4 | 2.38 | 0.4 | 2.8 | ||
| 060204-MG | ✓ | ✓ | 6.35 | 6.4 | 2.38 | 0.4 | 2.8 | |||
| 09T304-MG | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.4 | 4.4 | |||
| 09T308-MG | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.8 | 4.4 | |||
| 120408-MG | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.5 | |||
| Holder Page : C093, C095 |
| 6 | 6 |
| 5 | 5 |
| 4 | 4 |
| 3 | 3 |
| 2 | MP 2 |
| 1 | MG 1 |
0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6
f (mm/rev) f (mm/rev)
