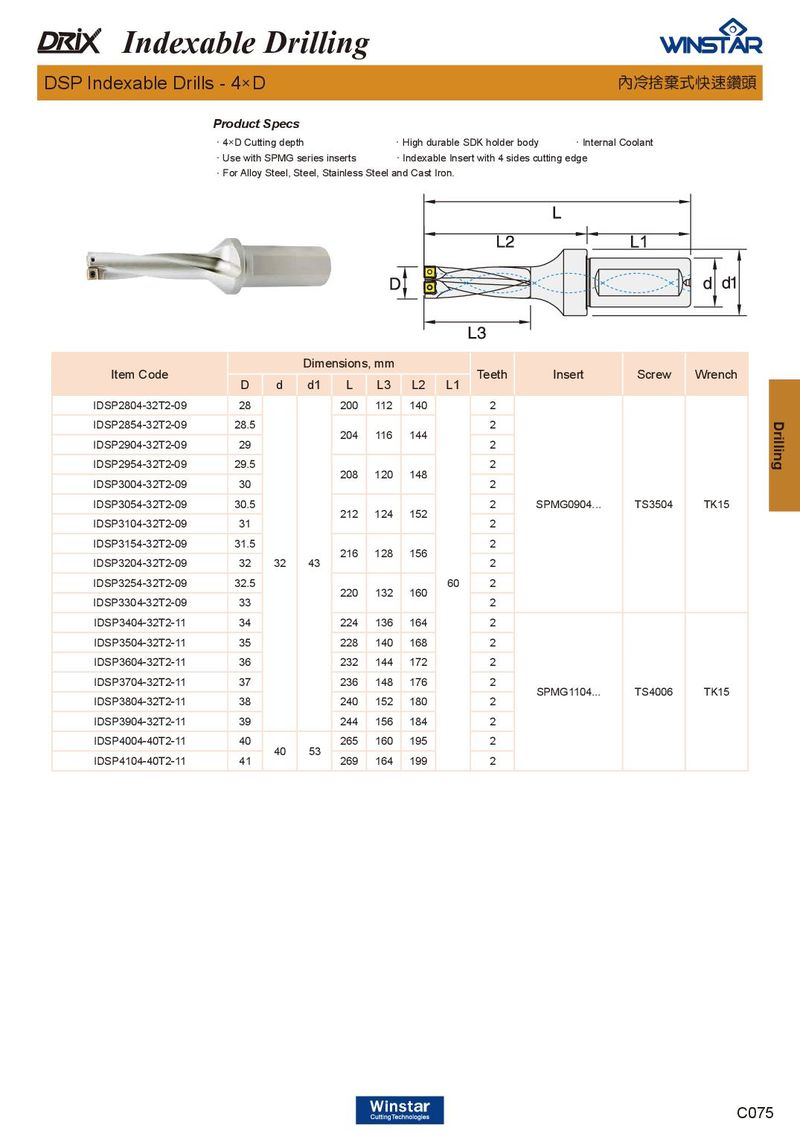

Product Specs
．4×D Cutting depth ．High durable SDK holder body ．Internal Coolant
．Use with SPMG series inserts ．Indexable Insert with 4 sides cutting edge ．For Alloy Steel, Steel, Stainless Steel and Cast Iron.
| Dime | nsions | , mm | |||||||||
| Item Code | Teeth | Insert | Screw | Wrench | |||||||
| D | d | d1 | L | L3 | L2 | L1 | |||||
| IDSP2804-32T2-09 | 28 | 200 | 112 | 140 | 2 | ||||||
| IDSP2854-32T2-09 | 28.5 | 204 | 116 | 144 | 2 | ||||||
| IDSP2904-32T2-09 | 29 | 2 | |||||||||
| IDSP2954-32T2-09 | 29.5 | 208 | 120 | 148 | 2 | ||||||
| IDSP3004-32T2-09 | 30 | 2 | |||||||||
| IDSP3054-32T2-09 | 30.5 | 212 | 124 | 12 | 2 | SPMG0904... | TS3504 | TK15 | |||
| IDSP3104-32T2-09 | 31 | 5 | 2 | ||||||||
| IDSP3154-32T2-09 | 31.5 | 216 | 128 | 156 | 2 | ||||||
| IDSP3204-32T2-09 | 32 | 32 | 43 | 2 | |||||||
| IDSP3254-32T2-09 | 32.5 | 220 | 132 | 160 | 60 | 2 | |||||
| IDSP3304-32T2-09 | 33 | 2 | |||||||||
| IDSP3404-32T2-11 | 34 | 224 | 136 | 164 | 2 | ||||||
| IDSP3504-32T2-11 | 35 | 228 | 140 | 168 | 2 | ||||||
| IDSP3604-32T2-11 | 36 | 232 | 144 | 172 | 2 | ||||||
| IDSP3704-32T2-11 | 37 | 236 | 148 | 176 | 2 | ||||||
| IDSP3804-32T2-11 | 38 | 240 | 152 | 180 | 2 | SPMG1104... | TS4006 | TK15 | |||
| IDSP3904-32T2-11 | 39 | 244 | 156 | 184 | 2 | ||||||
| IDSP4004-40T2-11 | 40 | 265 | 160 | 195 | 2 | ||||||
| IDSP4104-40T2-11 | 41 | 40 | 53 | 269 | 164 | 199 | 2 |
