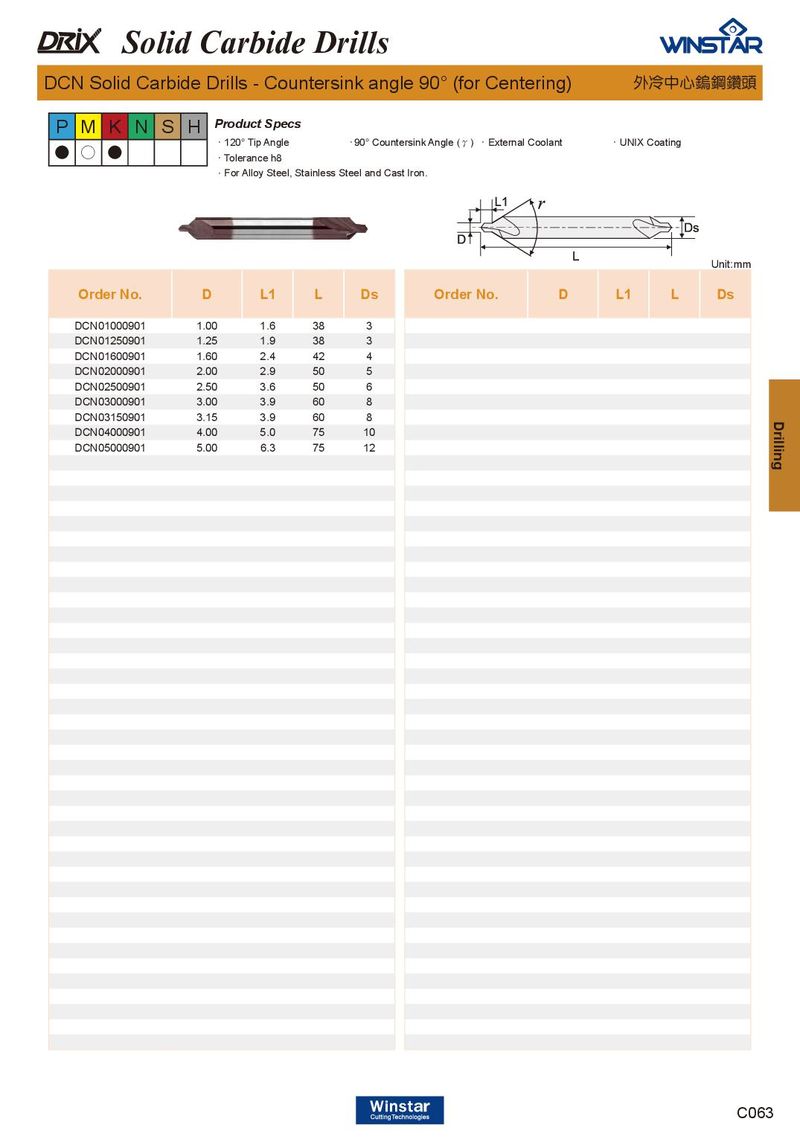

DCN Solid Carbide Drills - Countersink angle 90° (for Centering) 外冷中心鎢鋼鑽頭
PMKNSH Product Specs
．120° Tip Angle ．90° Countersink Angle (γ) ．External Coolant ．UNIX Coating
- ○ Tolerance h8
．For Alloy Steel, Stainless Steel and Cast Iron.
| Unit:mm | |||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds |
| DCN01000901 | 1.00 | 1.6 | 38 | 3 | |||||
| DCN01250901 | 1.25 | 1.9 | 38 | 3 | |||||
| DCN01600901 | 1.60 | 2.4 | 42 | 4 | |||||
| DCN02000901 | 2.00 | 2.9 | 50 | 5 | |||||
| DCN02500901 | 2.50 | 3.6 | 50 | 6 | |||||
| DCN03000901 | 3.00 | 3.9 | 60 | 8 | |||||
| DCN03150901 | 3.15 | 3.9 | 60 | 8 | |||||
| DCN04000901 | 4.00 | 5.0 | 75 | 10 | |||||
| DCN05000901 | 5.00 | 6.3 | 75 | 12 |
