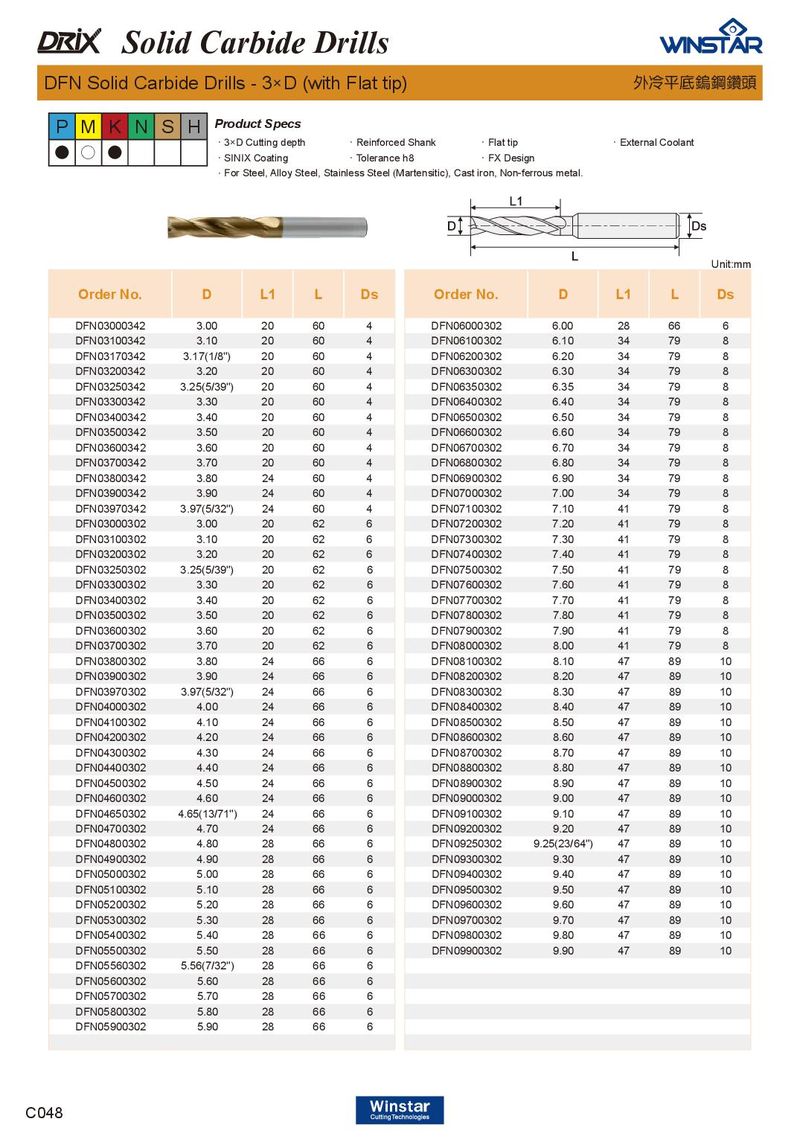

Каталог Winstar сверление - страница 54
Навигация
Каталог Winstar инструмент со сменными пластинами 2020
Брошюра Winstar основная номенклатура 2021
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar пластины 2021
Каталог Winstar твердосплавные пластины и вставки
PMKNSH Product Specs
．3×D Cutting depth ．Reinforced Shank ．Flat tip ．External Coolant
- ○ SINIX Coating Tolerance h8 FX Design
．For Steel, Alloy Steel, Stainless Steel (Martensitic), Cast iron, Non-ferrous metal.
| Unit:mm | |||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds |
| DFN03000342 | 3.00 | 20 | 60 | 4 | DFN06000302 | 6.00 | 28 | 66 | 6 |
| DFN03100342 | 3.10 | 20 | 60 | 4 | DFN06100302 | 6.10 | 34 | 79 | 8 |
| DFN03170342 | 3.17(1/8") | 20 | 60 | 4 | DFN06200302 | 6.20 | 34 | 79 | 8 |
| DFN03200342 | 3.20 | 20 | 60 | 4 | DFN06300302 | 6.30 | 34 | 79 | 8 |
| DFN03250342 | 3.25(5/39") | 20 | 60 | 4 | DFN06350302 | 6.35 | 34 | 79 | 8 |
| DFN03300342 | 3.30 | 20 | 60 | 4 | DFN06400302 | 6.40 | 34 | 79 | 8 |
| DFN03400342 | 3.40 | 20 | 60 | 4 | DFN06500302 | 6.50 | 34 | 79 | 8 |
| DFN03500342 | 3.50 | 20 | 60 | 4 | DFN06600302 | 6.60 | 34 | 79 | 8 |
| DFN03600342 | 3.60 | 20 | 60 | 4 | DFN06700302 | 6.70 | 34 | 79 | 8 |
| DFN03700342 | 3.70 | 20 | 60 | 4 | DFN06800302 | 6.80 | 34 | 79 | 8 |
| DFN03800342 | 3.80 | 24 | 60 | 4 | DFN06900302 | 6.90 | 34 | 79 | 8 |
| DFN03900342 | 3.90 | 24 | 60 | 4 | DFN07000302 | 7.00 | 34 | 79 | 8 |
| DFN03970342 | 3.97(5/32") | 24 | 60 | 4 | DFN07100302 | 7.10 | 41 | 79 | 8 |
| DFN03000302 | 3.00 | 20 | 62 | 6 | DFN07200302 | 7.20 | 41 | 79 | 8 |
| DFN03100302 | 3.10 | 20 | 62 | 6 | DFN07300302 | 7.30 | 41 | 79 | 8 |
| DFN03200302 | 3.20 | 20 | 62 | 6 | DFN07400302 | 7.40 | 41 | 79 | 8 |
| DFN03250302 | 3.25(5/39") | 20 | 62 | 6 | DFN07500302 | 7.50 | 41 | 79 | 8 |
| DFN03300302 | 3.30 | 20 | 62 | 6 | DFN07600302 | 7.60 | 41 | 79 | 8 |
| DFN03400302 | 3.40 | 20 | 62 | 6 | DFN07700302 | 7.70 | 41 | 79 | 8 |
| DFN03500302 | 3.50 | 20 | 62 | 6 | DFN07800302 | 7.80 | 41 | 79 | 8 |
| DFN03600302 | 3.60 | 20 | 62 | 6 | DFN07900302 | 7.90 | 41 | 79 | 8 |
| DFN03700302 | 3.70 | 20 | 62 | 6 | DFN08000302 | 8.00 | 41 | 79 | 8 |
| DFN03800302 | 3.80 | 24 | 66 | 6 | DFN08100302 | 8.10 | 47 | 89 | 10 |
| DFN03900302 | 3.90 | 24 | 66 | 6 | DFN08200302 | 8.20 | 47 | 89 | 10 |
| DFN03970302 | 3.97(5/32") | 24 | 66 | 6 | DFN08300302 | 8.30 | 47 | 89 | 10 |
| DFN04000302 | 4.00 | 24 | 66 | 6 | DFN08400302 | 8.40 | 47 | 89 | 10 |
| DFN04100302 | 4.10 | 24 | 66 | 6 | DFN08500302 | 8.50 | 47 | 89 | 10 |
| DFN04200302 | 4.20 | 24 | 66 | 6 | DFN08600302 | 8.60 | 47 | 89 | 10 |
| DFN04300302 | 4.30 | 24 | 66 | 6 | DFN08700302 | 8.70 | 47 | 89 | 10 |
| DFN04400302 | 4.40 | 24 | 66 | 6 | DFN08800302 | 8.80 | 47 | 89 | 10 |
| DFN04500302 | 4.50 | 24 | 66 | 6 | DFN08900302 | 8.90 | 47 | 89 | 10 |
| DFN04600302 | 4.60 | 24 | 66 | 6 | DFN09000302 | 9.00 | 47 | 89 | 10 |
| DFN04650302 | 4.65(13/71") | 24 | 66 | 6 | DFN09100302 | 9.10 | 47 | 89 | 10 |
| DFN04700302 | 4.70 | 24 | 66 | 6 | DFN09200302 | 9.20 | 47 | 89 | 10 |
| DFN04800302 | 4.80 | 28 | 66 | 6 | DFN09250302 | 9.25(23/64") | 47 | 89 | 10 |
| DFN04900302 | 4.90 | 28 | 66 | 6 | DFN09300302 | 9.30 | 47 | 89 | 10 |
| DFN05000302 | 5.00 | 28 | 66 | 6 | DFN09400302 | 9.40 | 47 | 89 | 10 |
| DFN05100302 | 5.10 | 28 | 66 | 6 | DFN09500302 | 9.50 | 47 | 89 | 10 |
| DFN05200302 | 5.20 | 28 | 66 | 6 | DFN09600302 | 9.60 | 47 | 89 | 10 |
| DFN05300302 | 5.30 | 28 | 66 | 6 | DFN09700302 | 9.70 | 47 | 89 | 10 |
| DFN05400302 | 5.40 | 28 | 66 | 6 | DFN09800302 | 9.80 | 47 | 89 | 10 |
| DFN05500302 | 5.50 | 28 | 66 | 6 | DFN09900302 | 9.90 | 47 | 89 | 10 |
| DFN05560302 | 5.56(7/32") | 28 | 66 | 6 | |||||
| DFN05600302 | 5.60 | 28 | 66 | 6 | |||||
| DFN05700302 | 5.70 | 28 | 66 | 6 | |||||
| DFN05800302 | 5.80 | 28 | 66 | 6 | |||||
| DFN05900302 | 5.90 | 28 | 66 | 6 |
