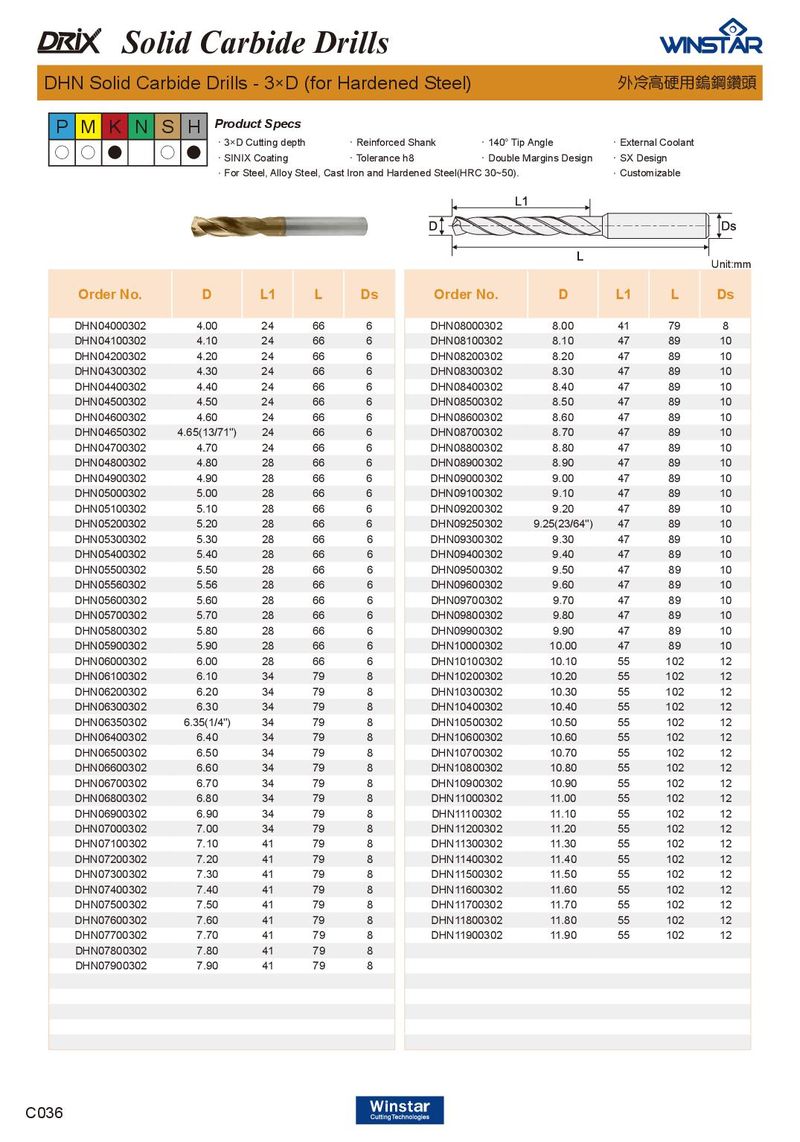

DHN Solid Carbide Drills - 3×D (for Hardened Steel) 外冷高硬用鎢鋼鑽頭
PMKNSH Product Specs
| ．3×D Cutting depth | ．Reinforced Shank | ．140° Tip Angle | ．External Coolant | ||
| ○ ○ ● | ○ ● | SINIX Coating | Tolerance h8 | Double Margins Design | SX Design |
．For Steel, Alloy Steel, Cast Iron and Hardened Steel(HRC 30~50). ．Customizable
| Unit:mm | |||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds |
| DHN04000302 | 4.00 | 24 | 66 | 6 | DHN08000302 | 8.00 | 41 | 79 | 8 |
| DHN04100302 | 4.10 | 24 | 66 | 6 | DHN08100302 | 8.10 | 47 | 89 | 10 |
| DHN04200302 | 4.20 | 24 | 66 | 6 | DHN08200302 | 8.20 | 47 | 89 | 10 |
| DHN04300302 | 4.30 | 24 | 66 | 6 | DHN08300302 | 8.30 | 47 | 89 | 10 |
| DHN04400302 | 4.40 | 24 | 66 | 6 | DHN08400302 | 8.40 | 47 | 89 | 10 |
| DHN04500302 | 4.50 | 24 | 66 | 6 | DHN08500302 | 8.50 | 47 | 89 | 10 |
| DHN04600302 | 4.60 | 24 | 66 | 6 | DHN08600302 | 8.60 | 47 | 89 | 10 |
| DHN04650302 | 4.65(13/71") | 24 | 66 | 6 | DHN08700302 | 8.70 | 47 | 89 | 10 |
| DHN04700302 | 4.70 | 24 | 66 | 6 | DHN08800302 | 8.80 | 47 | 89 | 10 |
| DHN04800302 | 4.80 | 28 | 66 | 6 | DHN08900302 | 8.90 | 47 | 89 | 10 |
| DHN04900302 | 4.90 | 28 | 66 | 6 | DHN09000302 | 9.00 | 47 | 89 | 10 |
| DHN05000302 | 5.00 | 28 | 66 | 6 | DHN09100302 | 9.10 | 47 | 89 | 10 |
| DHN05100302 | 5.10 | 28 | 66 | 6 | DHN09200302 | 9.20 | 47 | 89 | 10 |
| DHN05200302 | 5.20 | 28 | 66 | 6 | DHN09250302 | 9.25(23/64") | 47 | 89 | 10 |
| DHN05300302 | 5.30 | 28 | 66 | 6 | DHN09300302 | 9.30 | 47 | 89 | 10 |
| DHN05400302 | 5.40 | 28 | 66 | 6 | DHN09400302 | 9.40 | 47 | 89 | 10 |
| DHN05500302 | 5.50 | 28 | 66 | 6 | DHN09500302 | 9.50 | 47 | 89 | 10 |
| DHN05560302 | 5.56 | 28 | 66 | 6 | DHN09600302 | 9.60 | 47 | 89 | 10 |
| DHN05600302 | 5.60 | 28 | 66 | 6 | DHN09700302 | 9.70 | 47 | 89 | 10 |
| DHN05700302 | 5.70 | 28 | 66 | 6 | DHN09800302 | 9.80 | 47 | 89 | 10 |
| DHN05800302 | 5.80 | 28 | 66 | 6 | DHN09900302 | 9.90 | 47 | 89 | 10 |
| DHN05900302 | 5.90 | 28 | 66 | 6 | DHN10000302 | 10.00 | 47 | 89 | 10 |
| DHN06000302 | 6.00 | 28 | 66 | 6 | DHN10100302 | 10.10 | 55 | 102 | 12 |
| DHN06100302 | 6.10 | 34 | 79 | 8 | DHN10200302 | 10.20 | 55 | 102 | 12 |
| DHN06200302 | 6.20 | 34 | 79 | 8 | DHN10300302 | 10.30 | 55 | 102 | 12 |
| DHN06300302 | 6.30 | 34 | 79 | 8 | DHN10400302 | 10.40 | 55 | 102 | 12 |
| DHN06350302 | 6.35(1/4") | 34 | 79 | 8 | DHN10500302 | 10.50 | 55 | 102 | 12 |
| DHN06400302 | 6.40 | 34 | 79 | 8 | DHN10600302 | 10.60 | 55 | 102 | 12 |
| DHN06500302 | 6.50 | 34 | 79 | 8 | DHN10700302 | 10.70 | 55 | 102 | 12 |
| DHN06600302 | 6.60 | 34 | 79 | 8 | DHN10800302 | 10.80 | 55 | 102 | 12 |
| DHN06700302 | 6.70 | 34 | 79 | 8 | DHN10900302 | 10.90 | 55 | 102 | 12 |
| DHN06800302 | 6.80 | 34 | 79 | 8 | DHN11000302 | 11.00 | 55 | 102 | 12 |
| DHN06900302 | 6.90 | 34 | 79 | 8 | DHN11100302 | 11.10 | 55 | 102 | 12 |
| DHN07000302 | 7.00 | 34 | 79 | 8 | DHN11200302 | 11.20 | 55 | 102 | 12 |
| DHN07100302 | 7.10 | 41 | 79 | 8 | DHN11300302 | 11.30 | 55 | 102 | 12 |
| DHN07200302 | 7.20 | 41 | 79 | 8 | DHN11400302 | 11.40 | 55 | 102 | 12 |
| DHN07300302 | 7.30 | 41 | 79 | 8 | DHN11500302 | 11.50 | 55 | 102 | 12 |
| DHN07400302 | 7.40 | 41 | 79 | 8 | DHN11600302 | 11.60 | 55 | 102 | 12 |
| DHN07500302 | 7.50 | 41 | 79 | 8 | DHN11700302 | 11.70 | 55 | 102 | 12 |
| DHN07600302 | 7.60 | 41 | 79 | 8 | DHN11800302 | 11.80 | 55 | 102 | 12 |
| DHN07700302 | 7.70 | 41 | 79 | 8 | DHN11900302 | 11.90 | 55 | 102 | 12 |
| DHN07800302 DHN07900302 | 7.80 7.90 | 41 41 | 79 79 | 8 8 |
