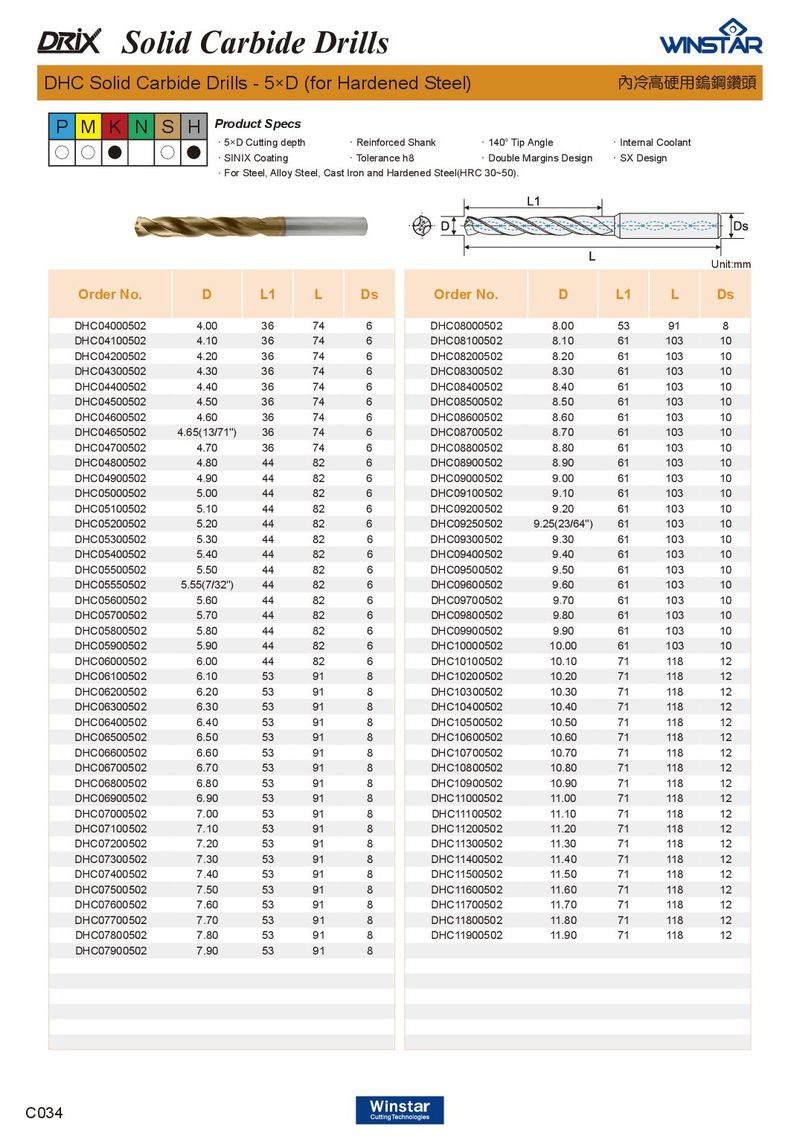

PMKNSH Product Specs
| | ．5×D Cutting depth | ．Reinforced Shank | ．140° Tip Angle | ．Internal Coolant |
| ○ ○ ● | ○ ● | SINIX Coating | Tolerance h8 | Double Margins Design | SX Design |
．For Steel, Alloy Steel, Cast Iron and Hardened Steel(HRC 30~50).
| Order No. | D | L1 | L | Ds Unit:mm |
| DHC08000502 | 8.00 | 53 | 91 | 8 |
| DHC08100502 | 8.10 | 61 | 103 | 10 |
| DHC08200502 | 8.20 | 61 | 103 | 10 |
| DHC08300502 | 8.30 | 61 | 103 | 10 |
| DHC08400502 | 8.40 | 61 | 103 | 10 |
| DHC08500502 | 8.50 | 61 | 103 | 10 |
| DHC08600502 | 8.60 | 61 | 103 | 10 |
| DHC08700502 | 8.70 | 61 | 103 | 10 |
| DHC08800502 | 8.80 | 61 | 103 | 10 |
| DHC08900502 | 8.90 | 61 | 103 | 10 |
| DHC09000502 | 9.00 | 61 | 103 | 10 |
| DHC09100502 | 9.10 | 61 | 103 | 10 |
| DHC09200502 | 9.20 | 61 | 103 | 10 |
| DHC09250502 | 9.25(23/64") | 61 | 103 | 10 |
| DHC09300502 | 9.30 | 61 | 103 | 10 |
| DHC09400502 | 9.40 | 61 | 103 | 10 |
| DHC09500502 | 9.50 | 61 | 103 | 10 |
| DHC09600502 | 9.60 | 61 | 103 | 10 |
| DHC09700502 | 9.70 | 61 | 103 | 10 |
| DHC09800502 | 9.80 | 61 | 103 | 10 |
| DHC09900502 | 9.90 | 61 | 103 | 10 |
| DHC10000502 | 10.00 | 61 | 103 | 10 |
| DHC10100502 | 10.10 | 71 | 118 | 12 |
| DHC10200502 | 10.20 | 71 | 118 | 12 |
| DHC10300502 | 10.30 | 71 | 118 | 12 |
| DHC10400502 | 10.40 | 71 | 118 | 12 |
| DHC10500502 | 10.50 | 71 | 118 | 12 |
| DHC10600502 | 10.60 | 71 | 118 | 12 |
| DHC10700502 | 10.70 | 71 | 118 | 12 |
| DHC10800502 | 10.80 | 71 | 118 | 12 |
| DHC10900502 | 10.90 | 71 | 118 | 12 |
| DHC11000502 | 11.00 | 71 | 118 | 12 |
| DHC11100502 | 11.10 | 71 | 118 | 12 |
| DHC11200502 | 11.20 | 71 | 118 | 12 |
| DHC11300502 | 11.30 | 71 | 118 | 12 |
| DHC11400502 | 11.40 | 71 | 118 | 12 |
| DHC11500502 | 11.50 | 71 | 118 | 12 |
| DHC11600502 | 11.60 | 71 | 118 | 12 |
| DHC11700502 | 11.70 | 71 | 118 | 12 |
| DHC11800502 | 11.80 | 71 | 118 | 12 |
| DHC11900502 | 11.90 | 71 | 118 | 12 |
| Order No. | D | L1 | L | Ds |
| DHC04000502 | 4.00 | 36 | 74 | 6 |
| DHC04100502 | 4.10 | 36 | 74 | 6 |
| DHC04200502 | 4.20 | 36 | 74 | 6 |
| DHC04300502 | 4.30 | 36 | 74 | 6 |
| DHC04400502 | 4.40 | 36 | 74 | 6 |
| DHC04500502 | 4.50 | 36 | 74 | 6 |
| DHC04600502 | 4.60 | 36 | 74 | 6 |
| DHC04650502 | 4.65(13/71") | 36 | 74 | 6 |
| DHC04700502 | 4.70 | 36 | 74 | 6 |
| DHC04800502 | 4.80 | 44 | 82 | 6 |
| DHC04900502 | 4.90 | 44 | 82 | 6 |
| DHC05000502 | 5.00 | 44 | 82 | 6 |
| DHC05100502 | 5.10 | 44 | 82 | 6 |
| DHC05200502 | 5.20 | 44 | 82 | 6 |
| DHC05300502 | 5.30 | 44 | 82 | 6 |
| DHC05400502 | 5.40 | 44 | 82 | 6 |
| DHC05500502 | 5.50 | 44 | 82 | 6 |
| DHC05550502 | 5.55(7/32") | 44 | 82 | 6 |
| DHC05600502 | 5.60 | 44 | 82 | 6 |
| DHC05700502 | 5.70 | 44 | 82 | 6 |
| DHC05800502 | 5.80 | 44 | 82 | 6 |
| DHC05900502 | 5.90 | 44 | 82 | 6 |
| DHC06000502 | 6.00 | 44 | 82 | 6 |
| DHC06100502 | 6.10 | 53 | 91 | 8 |
| DHC06200502 | 6.20 | 53 | 91 | 8 |
| DHC06300502 | 6.30 | 53 | 91 | 8 |
| DHC06400502 | 6.40 | 53 | 91 | 8 |
| DHC06500502 | 6.50 | 53 | 91 | 8 |
| DHC06600502 | 6.60 | 53 | 91 | 8 |
| DHC06700502 | 6.70 | 53 | 91 | 8 |
| DHC06800502 | 6.80 | 53 | 91 | 8 |
| DHC06900502 | 6.90 | 53 | 91 | 8 |
| DHC07000502 | 7.00 | 53 | 91 | 8 |
| DHC07100502 | 7.10 | 53 | 91 | 8 |
| DHC07200502 | 7.20 | 53 | 91 | 8 |
| DHC07300502 | 7.30 | 53 | 91 | 8 |
| DHC07400502 | 7.40 | 53 | 91 | 8 |
| DHC07500502 | 7.50 | 53 | 91 | 8 |
| DHC07600502 | 7.60 | 53 | 91 | 8 |
| DHC07700502 | 7.70 | 53 | 91 | 8 |
| DHC07800502 | 7.80 | 53 | 91 | 8 |
| DHC07900502 | 7.90 | 53 | 91 | 8 |
