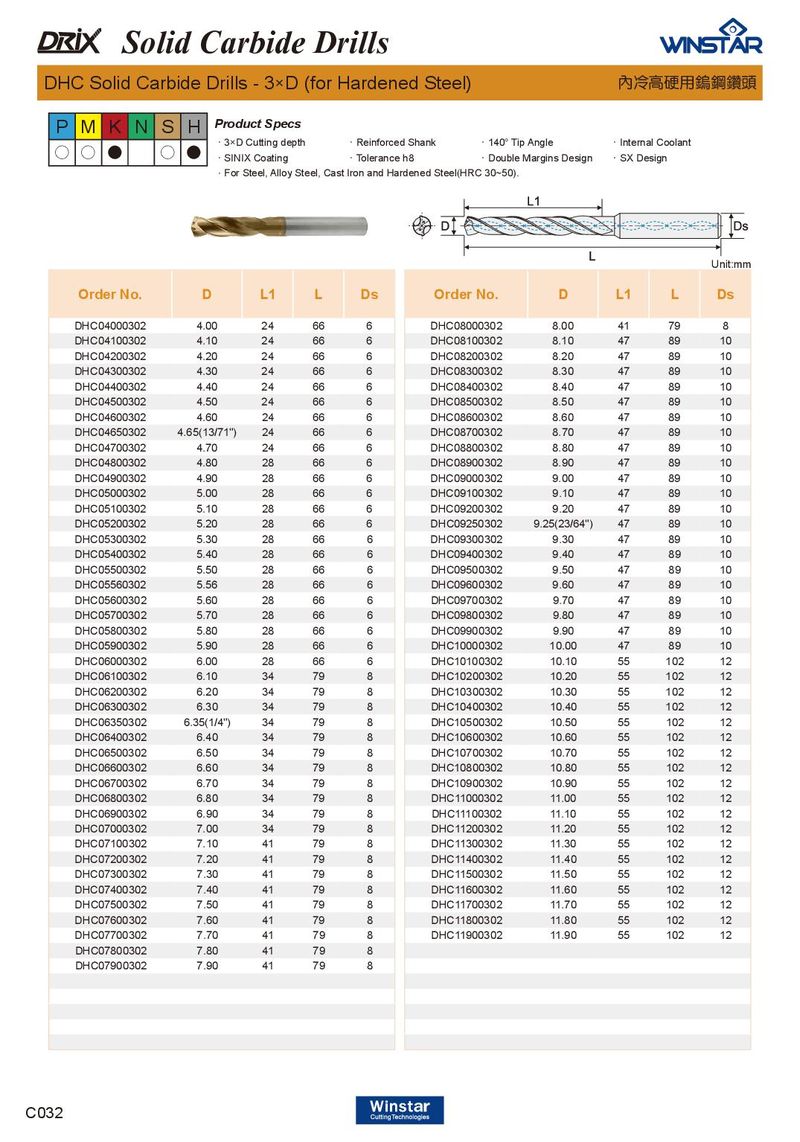

PMKNSH Product Specs

		．3×D Cutting depth	．Reinforced Shank	．140° Tip Angle	．Internal Coolant
○ ○ ●	○ ●	SINIX Coating	Tolerance h8	Double Margins Design	SX Design

．For Steel, Alloy Steel, Cast Iron and Hardened Steel(HRC 30~50).

									Unit:mm
Order No.	D	L1	L	Ds	Order No.	D	L1	L	Ds
DHC04000302	4.00	24	66	6	DHC08000302	8.00	41	79	8
DHC04100302	4.10	24	66	6	DHC08100302	8.10	47	89	10
DHC04200302	4.20	24	66	6	DHC08200302	8.20	47	89	10
DHC04300302	4.30	24	66	6	DHC08300302	8.30	47	89	10
DHC04400302	4.40	24	66	6	DHC08400302	8.40	47	89	10
DHC04500302	4.50	24	66	6	DHC08500302	8.50	47	89	10
DHC04600302	4.60	24	66	6	DHC08600302	8.60	47	89	10
DHC04650302	4.65(13/71")	24	66	6	DHC08700302	8.70	47	89	10
DHC04700302	4.70	24	66	6	DHC08800302	8.80	47	89	10
DHC04800302	4.80	28	66	6	DHC08900302	8.90	47	89	10
DHC04900302	4.90	28	66	6	DHC09000302	9.00	47	89	10
DHC05000302	5.00	28	66	6	DHC09100302	9.10	47	89	10
DHC05100302	5.10	28	66	6	DHC09200302	9.20	47	89	10
DHC05200302	5.20	28	66	6	DHC09250302	9.25(23/64")	47	89	10
DHC05300302	5.30	28	66	6	DHC09300302	9.30	47	89	10
DHC05400302	5.40	28	66	6	DHC09400302	9.40	47	89	10
DHC05500302	5.50	28	66	6	DHC09500302	9.50	47	89	10
DHC05560302	5.56	28	66	6	DHC09600302	9.60	47	89	10
DHC05600302	5.60	28	66	6	DHC09700302	9.70	47	89	10
DHC05700302	5.70	28	66	6	DHC09800302	9.80	47	89	10
DHC05800302	5.80	28	66	6	DHC09900302	9.90	47	89	10
DHC05900302	5.90	28	66	6	DHC10000302	10.00	47	89	10
DHC06000302	6.00	28	66	6	DHC10100302	10.10	55	102	12
DHC06100302	6.10	34	79	8	DHC10200302	10.20	55	102	12
DHC06200302	6.20	34	79	8	DHC10300302	10.30	55	102	12
DHC06300302	6.30	34	79	8	DHC10400302	10.40	55	102	12
DHC06350302	6.35(1/4")	34	79	8	DHC10500302	10.50	55	102	12
DHC06400302	6.40	34	79	8	DHC10600302	10.60	55	102	12
DHC06500302	6.50	34	79	8	DHC10700302	10.70	55	102	12
DHC06600302	6.60	34	79	8	DHC10800302	10.80	55	102	12
DHC06700302	6.70	34	79	8	DHC10900302	10.90	55	102	12
DHC06800302	6.80	34	79	8	DHC11000302	11.00	55	102	12
DHC06900302	6.90	34	79	8	DHC11100302	11.10	55	102	12
DHC07000302	7.00	34	79	8	DHC11200302	11.20	55	102	12
DHC07100302	7.10	41	79	8	DHC11300302	11.30	55	102	12
DHC07200302	7.20	41	79	8	DHC11400302	11.40	55	102	12
DHC07300302	7.30	41	79	8	DHC11500302	11.50	55	102	12
DHC07400302	7.40	41	79	8	DHC11600302	11.60	55	102	12
DHC07500302	7.50	41	79	8	DHC11700302	11.70	55	102	12
DHC07600302	7.60	41	79	8	DHC11800302	11.80	55	102	12
DHC07700302	7.70	41	79	8	DHC11900302	11.90	55	102	12
DHC07800302 DHC07900302	7.80 7.90	41 41	79 79	8 8
