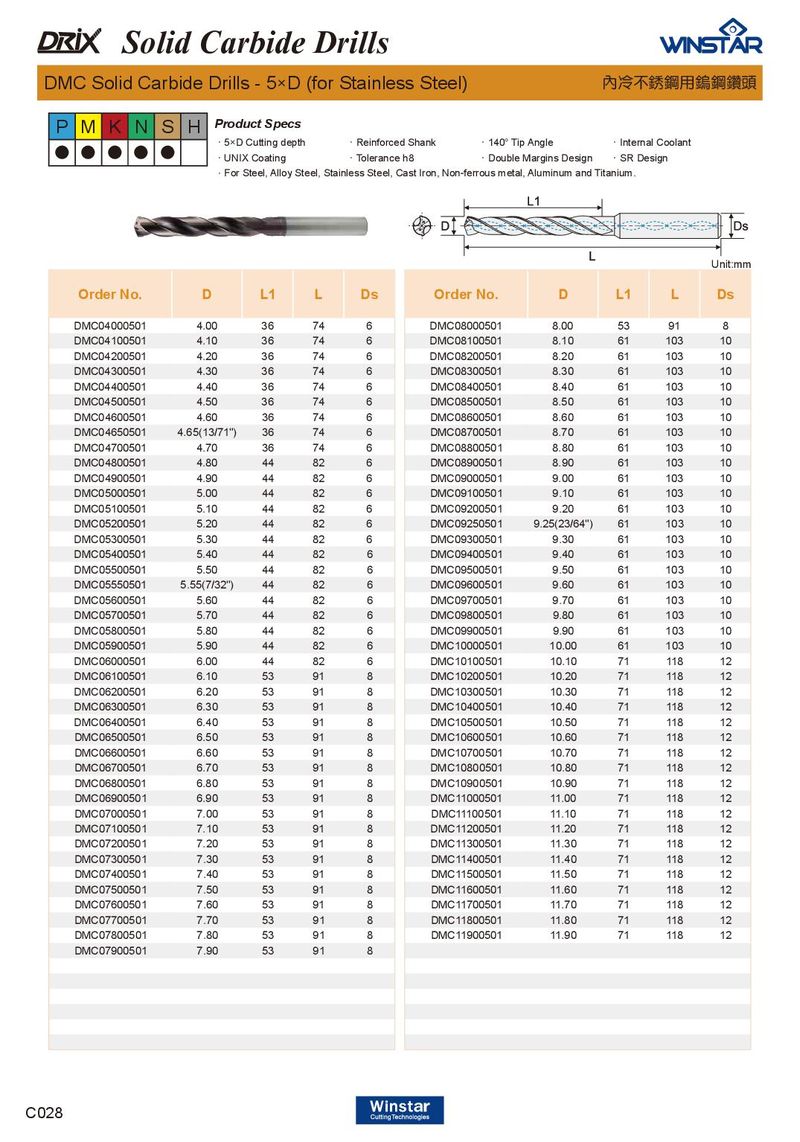

Каталог Winstar сверление - страница 34
Навигация
Каталог Winstar инструмент со сменными пластинами 2020
Брошюра Winstar основная номенклатура 2021
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar пластины 2021
Каталог Winstar твердосплавные пластины и вставки
PMKNSH Product Specs
．5×D Cutting depth ．Reinforced Shank ．140° Tip Angle ．Internal Coolant
- UNIX Coating Tolerance h8 Double Margins Design SR Design
．For Steel, Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous metal, Aluminum and Titanium.
| Order No. | D | L1 | L | Ds Unit:mm |
| DMC08000501 | 8.00 | 53 | 91 | 8 |
| DMC08100501 | 8.10 | 61 | 103 | 10 |
| DMC08200501 | 8.20 | 61 | 103 | 10 |
| DMC08300501 | 8.30 | 61 | 103 | 10 |
| DMC08400501 | 8.40 | 61 | 103 | 10 |
| DMC08500501 | 8.50 | 61 | 103 | 10 |
| DMC08600501 | 8.60 | 61 | 103 | 10 |
| DMC08700501 | 8.70 | 61 | 103 | 10 |
| DMC08800501 | 8.80 | 61 | 103 | 10 |
| DMC08900501 | 8.90 | 61 | 103 | 10 |
| DMC09000501 | 9.00 | 61 | 103 | 10 |
| DMC09100501 | 9.10 | 61 | 103 | 10 |
| DMC09200501 | 9.20 | 61 | 103 | 10 |
| DMC09250501 | 9.25(23/64") | 61 | 103 | 10 |
| DMC09300501 | 9.30 | 61 | 103 | 10 |
| DMC09400501 | 9.40 | 61 | 103 | 10 |
| DMC09500501 | 9.50 | 61 | 103 | 10 |
| DMC09600501 | 9.60 | 61 | 103 | 10 |
| DMC09700501 | 9.70 | 61 | 103 | 10 |
| DMC09800501 | 9.80 | 61 | 103 | 10 |
| DMC09900501 | 9.90 | 61 | 103 | 10 |
| DMC10000501 | 10.00 | 61 | 103 | 10 |
| DMC10100501 | 10.10 | 71 | 118 | 12 |
| DMC10200501 | 10.20 | 71 | 118 | 12 |
| DMC10300501 | 10.30 | 71 | 118 | 12 |
| DMC10400501 | 10.40 | 71 | 118 | 12 |
| DMC10500501 | 10.50 | 71 | 118 | 12 |
| DMC10600501 | 10.60 | 71 | 118 | 12 |
| DMC10700501 | 10.70 | 71 | 118 | 12 |
| DMC10800501 | 10.80 | 71 | 118 | 12 |
| DMC10900501 | 10.90 | 71 | 118 | 12 |
| DMC11000501 | 11.00 | 71 | 118 | 12 |
| DMC11100501 | 11.10 | 71 | 118 | 12 |
| DMC11200501 | 11.20 | 71 | 118 | 12 |
| DMC11300501 | 11.30 | 71 | 118 | 12 |
| DMC11400501 | 11.40 | 71 | 118 | 12 |
| DMC11500501 | 11.50 | 71 | 118 | 12 |
| DMC11600501 | 11.60 | 71 | 118 | 12 |
| DMC11700501 | 11.70 | 71 | 118 | 12 |
| DMC11800501 | 11.80 | 71 | 118 | 12 |
| DMC11900501 | 11.90 | 71 | 118 | 12 |
| Order No. | D | L1 | L | Ds |
| DMC04000501 | 4.00 | 36 | 74 | 6 |
| DMC04100501 | 4.10 | 36 | 74 | 6 |
| DMC04200501 | 4.20 | 36 | 74 | 6 |
| DMC04300501 | 4.30 | 36 | 74 | 6 |
| DMC04400501 | 4.40 | 36 | 74 | 6 |
| DMC04500501 | 4.50 | 36 | 74 | 6 |
| DMC04600501 | 4.60 | 36 | 74 | 6 |
| DMC04650501 | 4.65(13/71") | 36 | 74 | 6 |
| DMC04700501 | 4.70 | 36 | 74 | 6 |
| DMC04800501 | 4.80 | 44 | 82 | 6 |
| DMC04900501 | 4.90 | 44 | 82 | 6 |
| DMC05000501 | 5.00 | 44 | 82 | 6 |
| DMC05100501 | 5.10 | 44 | 82 | 6 |
| DMC05200501 | 5.20 | 44 | 82 | 6 |
| DMC05300501 | 5.30 | 44 | 82 | 6 |
| DMC05400501 | 5.40 | 44 | 82 | 6 |
| DMC05500501 | 5.50 | 44 | 82 | 6 |
| DMC05550501 | 5.55(7/32") | 44 | 82 | 6 |
| DMC05600501 | 5.60 | 44 | 82 | 6 |
| DMC05700501 | 5.70 | 44 | 82 | 6 |
| DMC05800501 | 5.80 | 44 | 82 | 6 |
| DMC05900501 | 5.90 | 44 | 82 | 6 |
| DMC06000501 | 6.00 | 44 | 82 | 6 |
| DMC06100501 | 6.10 | 53 | 91 | 8 |
| DMC06200501 | 6.20 | 53 | 91 | 8 |
| DMC06300501 | 6.30 | 53 | 91 | 8 |
| DMC06400501 | 6.40 | 53 | 91 | 8 |
| DMC06500501 | 6.50 | 53 | 91 | 8 |
| DMC06600501 | 6.60 | 53 | 91 | 8 |
| DMC06700501 | 6.70 | 53 | 91 | 8 |
| DMC06800501 | 6.80 | 53 | 91 | 8 |
| DMC06900501 | 6.90 | 53 | 91 | 8 |
| DMC07000501 | 7.00 | 53 | 91 | 8 |
| DMC07100501 | 7.10 | 53 | 91 | 8 |
| DMC07200501 | 7.20 | 53 | 91 | 8 |
| DMC07300501 | 7.30 | 53 | 91 | 8 |
| DMC07400501 | 7.40 | 53 | 91 | 8 |
| DMC07500501 | 7.50 | 53 | 91 | 8 |
| DMC07600501 | 7.60 | 53 | 91 | 8 |
| DMC07700501 | 7.70 | 53 | 91 | 8 |
| DMC07800501 | 7.80 | 53 | 91 | 8 |
| DMC07900501 | 7.90 | 53 | 91 | 8 |
