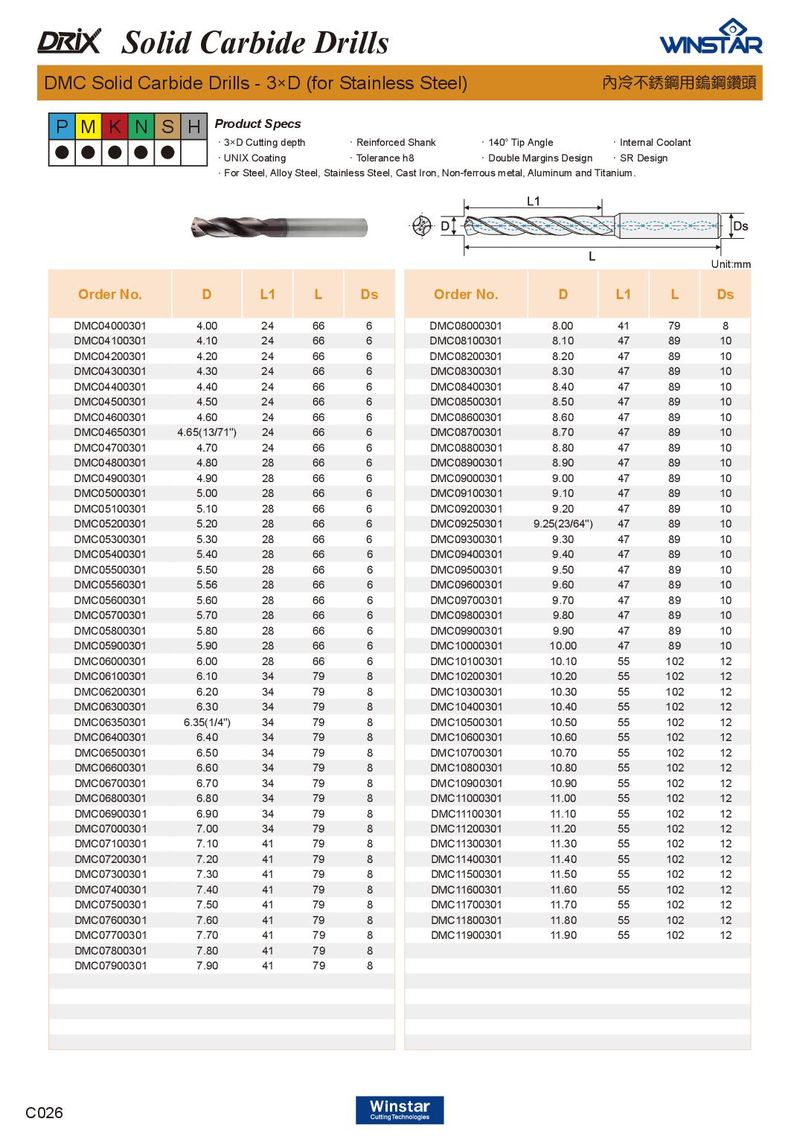

PMKNSH Product Specs
．3×D Cutting depth ．Reinforced Shank ．140° Tip Angle ．Internal Coolant
- UNIX Coating Tolerance h8 Double Margins Design SR Design
．For Steel, Alloy Steel, Stainless Steel, Cast Iron, Non-ferrous metal, Aluminum and Titanium.
| Unit:mm | |||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds |
| DMC04000301 | 4.00 | 24 | 66 | 6 | DMC08000301 | 8.00 | 41 | 79 | 8 |
| DMC04100301 | 4.10 | 24 | 66 | 6 | DMC08100301 | 8.10 | 47 | 89 | 10 |
| DMC04200301 | 4.20 | 24 | 66 | 6 | DMC08200301 | 8.20 | 47 | 89 | 10 |
| DMC04300301 | 4.30 | 24 | 66 | 6 | DMC08300301 | 8.30 | 47 | 89 | 10 |
| DMC04400301 | 4.40 | 24 | 66 | 6 | DMC08400301 | 8.40 | 47 | 89 | 10 |
| DMC04500301 | 4.50 | 24 | 66 | 6 | DMC08500301 | 8.50 | 47 | 89 | 10 |
| DMC04600301 | 4.60 | 24 | 66 | 6 | DMC08600301 | 8.60 | 47 | 89 | 10 |
| DMC04650301 | 4.65(13/71") | 24 | 66 | 6 | DMC08700301 | 8.70 | 47 | 89 | 10 |
| DMC04700301 | 4.70 | 24 | 66 | 6 | DMC08800301 | 8.80 | 47 | 89 | 10 |
| DMC04800301 | 4.80 | 28 | 66 | 6 | DMC08900301 | 8.90 | 47 | 89 | 10 |
| DMC04900301 | 4.90 | 28 | 66 | 6 | DMC09000301 | 9.00 | 47 | 89 | 10 |
| DMC05000301 | 5.00 | 28 | 66 | 6 | DMC09100301 | 9.10 | 47 | 89 | 10 |
| DMC05100301 | 5.10 | 28 | 66 | 6 | DMC09200301 | 9.20 | 47 | 89 | 10 |
| DMC05200301 | 5.20 | 28 | 66 | 6 | DMC09250301 | 9.25(23/64") | 47 | 89 | 10 |
| DMC05300301 | 5.30 | 28 | 66 | 6 | DMC09300301 | 9.30 | 47 | 89 | 10 |
| DMC05400301 | 5.40 | 28 | 66 | 6 | DMC09400301 | 9.40 | 47 | 89 | 10 |
| DMC05500301 | 5.50 | 28 | 66 | 6 | DMC09500301 | 9.50 | 47 | 89 | 10 |
| DMC05560301 | 5.56 | 28 | 66 | 6 | DMC09600301 | 9.60 | 47 | 89 | 10 |
| DMC05600301 | 5.60 | 28 | 66 | 6 | DMC09700301 | 9.70 | 47 | 89 | 10 |
| DMC05700301 | 5.70 | 28 | 66 | 6 | DMC09800301 | 9.80 | 47 | 89 | 10 |
| DMC05800301 | 5.80 | 28 | 66 | 6 | DMC09900301 | 9.90 | 47 | 89 | 10 |
| DMC05900301 | 5.90 | 28 | 66 | 6 | DMC10000301 | 10.00 | 47 | 89 | 10 |
| DMC06000301 | 6.00 | 28 | 66 | 6 | DMC10100301 | 10.10 | 55 | 102 | 12 |
| DMC06100301 | 6.10 | 34 | 79 | 8 | DMC10200301 | 10.20 | 55 | 102 | 12 |
| DMC06200301 | 6.20 | 34 | 79 | 8 | DMC10300301 | 10.30 | 55 | 102 | 12 |
| DMC06300301 | 6.30 | 34 | 79 | 8 | DMC10400301 | 10.40 | 55 | 102 | 12 |
| DMC06350301 | 6.35(1/4") | 34 | 79 | 8 | DMC10500301 | 10.50 | 55 | 102 | 12 |
| DMC06400301 | 6.40 | 34 | 79 | 8 | DMC10600301 | 10.60 | 55 | 102 | 12 |
| DMC06500301 | 6.50 | 34 | 79 | 8 | DMC10700301 | 10.70 | 55 | 102 | 12 |
| DMC06600301 | 6.60 | 34 | 79 | 8 | DMC10800301 | 10.80 | 55 | 102 | 12 |
| DMC06700301 | 6.70 | 34 | 79 | 8 | DMC10900301 | 10.90 | 55 | 102 | 12 |
| DMC06800301 | 6.80 | 34 | 79 | 8 | DMC11000301 | 11.00 | 55 | 102 | 12 |
| DMC06900301 | 6.90 | 34 | 79 | 8 | DMC11100301 | 11.10 | 55 | 102 | 12 |
| DMC07000301 | 7.00 | 34 | 79 | 8 | DMC11200301 | 11.20 | 55 | 102 | 12 |
| DMC07100301 | 7.10 | 41 | 79 | 8 | DMC11300301 | 11.30 | 55 | 102 | 12 |
| DMC07200301 | 7.20 | 41 | 79 | 8 | DMC11400301 | 11.40 | 55 | 102 | 12 |
| DMC07300301 | 7.30 | 41 | 79 | 8 | DMC11500301 | 11.50 | 55 | 102 | 12 |
| DMC07400301 | 7.40 | 41 | 79 | 8 | DMC11600301 | 11.60 | 55 | 102 | 12 |
| DMC07500301 | 7.50 | 41 | 79 | 8 | DMC11700301 | 11.70 | 55 | 102 | 12 |
| DMC07600301 | 7.60 | 41 | 79 | 8 | DMC11800301 | 11.80 | 55 | 102 | 12 |
| DMC07700301 | 7.70 | 41 | 79 | 8 | DMC11900301 | 11.90 | 55 | 102 | 12 |
| DMC07800301 DMC07900301 | 7.80 7.90 | 41 41 | 79 79 | 8 8 |
