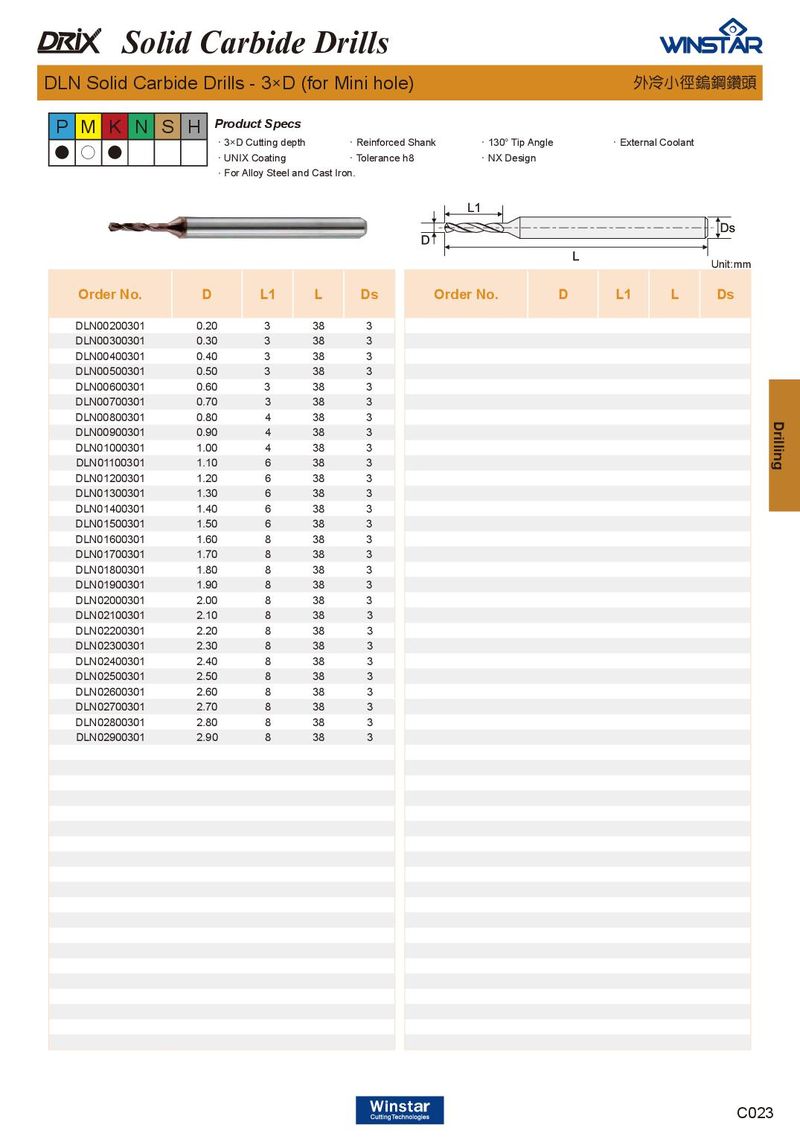

DLN Solid Ca	rbide Drills - 3×D	(for M	ini hol	e) 外冷小徑鎢鋼鑽頭
PMKN	S H Product Spec	s
●○●	．3×D Cutting de ．UNIX Coating	pth	．Reinforce ．Tolerance	d Shank ．130° Tip Angle ．External Coolant h8 ．NX Design
	．For Alloy Steel	and Cast Ir	on.
				Unit:mm
Order No.	D L1	L	Ds	Order No. D L1 L Ds
DLN00200301	0.20 3	38	3
DLN00300301	0.30 3	38	3
DLN00400301	0.40 3	38	3
DLN00500301	0.50 3	38	3
DLN00600301	0.60 3	38	3
DLN00700301	0.70 3	38	3
DLN00800301	0.80 4	38	3
DLN00900301	0.90 4	38	3
DLN01000301	1.00 4	38	3
DLN01100301	1.10 6	38	3
DLN01200301	1.20 6	38	3
DLN01300301	1.30 6	38	3
DLN01400301	1.40 6	38	3
DLN01500301	1.50 6	38	3
DLN01600301	1.60 8	38	3
DLN01700301	1.70 8	38	3
DLN01800301	1.80 8	38	3
DLN01900301	1.90 8	38	3
DLN02000301	2.00 8	38	3
DLN02100301	2.10 8	38	3
DLN02200301	2.20 8	38	3
DLN02300301	2.30 8	38	3
DLN02400301	2.40 8	38	3
DLN02500301	2.50 8	38	3
DLN02600301	2.60 8	38	3
DLN02700301	2.70 8	38	3
DLN02800301	2.80 8	38	3
DLN02900301	2.90 8	38	3
