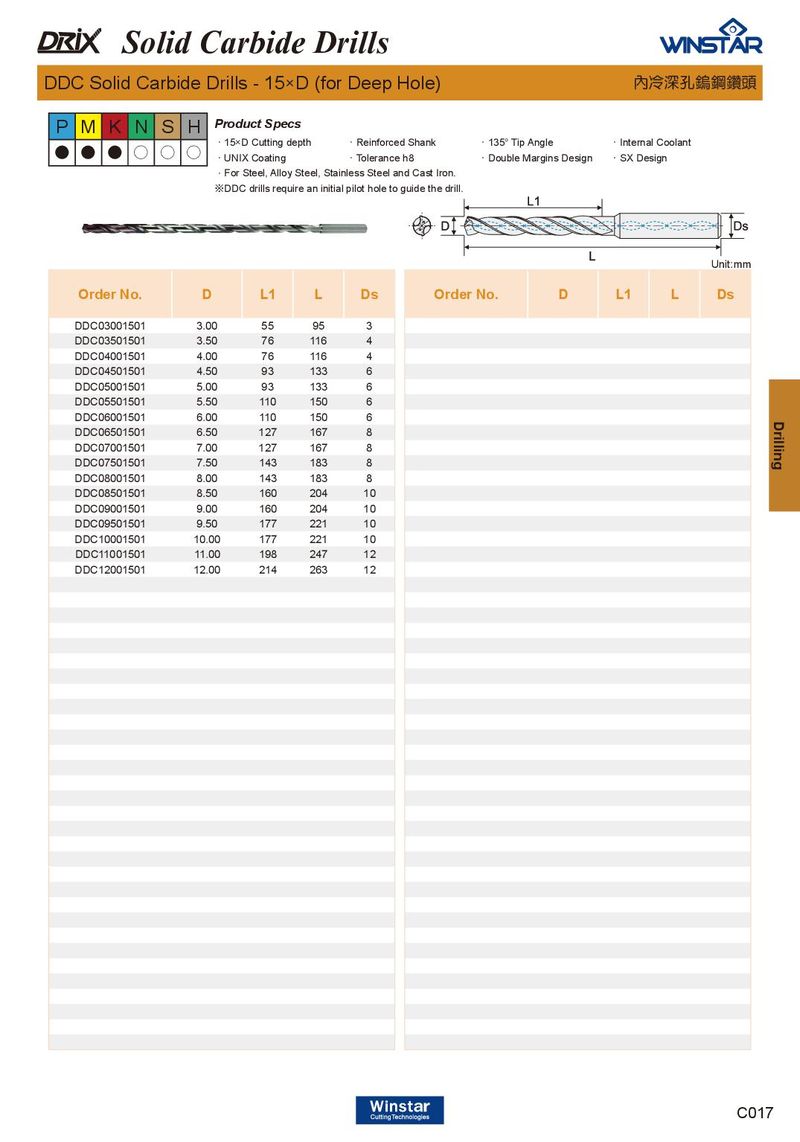

DDC Solid C	arbide Drill	s - 15×	D (for	Deep	Hole) 內冷深孔	鎢鋼鑽頭
PMKN	S H Pro	duct Spec	s
●●●○	○○ ．15 ．UN	×D Cutting d IX Coating	epth	．Reinforc ．Toleranc	ed Shank ．135° Tip Angle ．Internal Coolant e h8 ．Double Margins Design ．SX Design
	．For ※DD	Steel, Alloy C drills requ	Steel, Stai ire an initia	nless Steel l pilot hole t	and Cast Iron. o guide the drill.
						Unit:mm
Order No.	D	L1	L	Ds	Order No. D L1 L	Ds
DDC03001501	3.00	55	95	3
DDC03501501	3.50	76	116	4
DDC04001501	4.00	76	116	4
DDC04501501	4.50	93	133	6
DDC05001501	5.00	93	133	6
DDC05501501	5.50	110	150	6
DDC06001501	6.00	110	150	6
DDC06501501	6.50	127	167	8
DDC07001501	7.00	127	167	8
DDC07501501	7.50	143	183	8
DDC08001501	8.00	143	183	8
DDC08501501	8.50	160	204	10
DDC09001501	9.00	160	204	10
DDC09501501	9.50	177	221	10
DDC10001501	10.00	177	221	10
DDC11001501	11.00	198	247	12
DDC12001501	12.00	214	263	12
