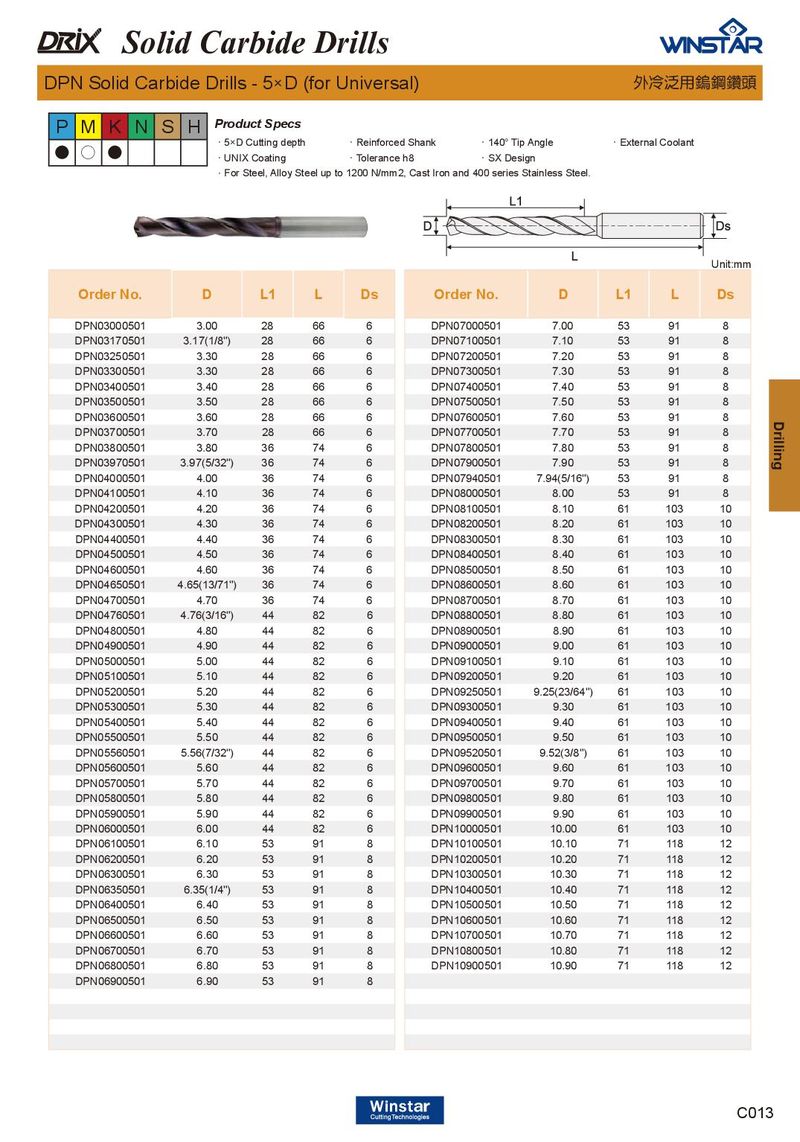

PMKNSH Product Specs
．5×D Cutting depth ．Reinforced Shank ．140° Tip Angle ．External Coolant
- ○ UNIX Coating Tolerance h8 SX Design
．For Steel, Alloy Steel up to 1200 N/mm2, Cast Iron and 400 series Stainless Steel.
| Unit:mm | |||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds |
| DPN03000501 | 3.00 | 28 | 66 | 6 | DPN07000501 | 7.00 | 53 | 91 | 8 |
| DPN03170501 | 3.17(1/8") | 28 | 66 | 6 | DPN07100501 | 7.10 | 53 | 91 | 8 |
| DPN03250501 | 3.30 | 28 | 66 | 6 | DPN07200501 | 7.20 | 53 | 91 | 8 |
| DPN03300501 | 3.30 | 28 | 66 | 6 | DPN07300501 | 7.30 | 53 | 91 | 8 |
| DPN03400501 | 3.40 | 28 | 66 | 6 | DPN07400501 | 7.40 | 53 | 91 | 8 |
| DPN03500501 | 3.50 | 28 | 66 | 6 | DPN07500501 | 7.50 | 53 | 91 | 8 |
| DPN03600501 | 3.60 | 28 | 66 | 6 | DPN07600501 | 7.60 | 53 | 91 | 8 |
| DPN03700501 | 3.70 | 28 | 66 | 6 | DPN07700501 | 7.70 | 53 | 91 | 8 |
| DPN03800501 | 3.80 | 36 | 74 | 6 | DPN07800501 | 7.80 | 53 | 91 | 8 |
| DPN03970501 | 3.97(5/32") | 36 | 74 | 6 | DPN07900501 | 7.90 | 53 | 91 | 8 |
| DPN04000501 | 4.00 | 36 | 74 | 6 | DPN07940501 | 7.94(5/16") | 53 | 91 | 8 |
| DPN04100501 | 4.10 | 36 | 74 | 6 | DPN08000501 | 8.00 | 53 | 91 | 8 |
| DPN04200501 | 4.20 | 36 | 74 | 6 | DPN08100501 | 8.10 | 61 | 103 | 10 |
| DPN04300501 | 4.30 | 36 | 74 | 6 | DPN08200501 | 8.20 | 61 | 103 | 10 |
| DPN04400501 | 4.40 | 36 | 74 | 6 | DPN08300501 | 8.30 | 61 | 103 | 10 |
| DPN04500501 | 4.50 | 36 | 74 | 6 | DPN08400501 | 8.40 | 61 | 103 | 10 |
| DPN04600501 | 4.60 | 36 | 74 | 6 | DPN08500501 | 8.50 | 61 | 103 | 10 |
| DPN04650501 | 4.65(13/71") | 36 | 74 | 6 | DPN08600501 | 8.60 | 61 | 103 | 10 |
| DPN04700501 | 4.70 | 36 | 74 | 6 | DPN08700501 | 8.70 | 61 | 103 | 10 |
| DPN04760501 | 4.76(3/16") | 44 | 82 | 6 | DPN08800501 | 8.80 | 61 | 103 | 10 |
| DPN04800501 | 4.80 | 44 | 82 | 6 | DPN08900501 | 8.90 | 61 | 103 | 10 |
| DPN04900501 | 4.90 | 44 | 82 | 6 | DPN09000501 | 9.00 | 61 | 103 | 10 |
| DPN05000501 | 5.00 | 44 | 82 | 6 | DPN09100501 | 9.10 | 61 | 103 | 10 |
| DPN05100501 | 5.10 | 44 | 82 | 6 | DPN09200501 | 9.20 | 61 | 103 | 10 |
| DPN05200501 | 5.20 | 44 | 82 | 6 | DPN09250501 | 9.25(23/64") | 61 | 103 | 10 |
| DPN05300501 | 5.30 | 44 | 82 | 6 | DPN09300501 | 9.30 | 61 | 103 | 10 |
| DPN05400501 | 5.40 | 44 | 82 | 6 | DPN09400501 | 9.40 | 61 | 103 | 10 |
| DPN05500501 | 5.50 | 44 | 82 | 6 | DPN09500501 | 9.50 | 61 | 103 | 10 |
| DPN05560501 | 5.56(7/32") | 44 | 82 | 6 | DPN09520501 | 9.52(3/8") | 61 | 103 | 10 |
| DPN05600501 | 5.60 | 44 | 82 | 6 | DPN09600501 | 9.60 | 61 | 103 | 10 |
| DPN05700501 | 5.70 | 44 | 82 | 6 | DPN09700501 | 9.70 | 61 | 103 | 10 |
| DPN05800501 | 5.80 | 44 | 82 | 6 | DPN09800501 | 9.80 | 61 | 103 | 10 |
| DPN05900501 | 5.90 | 44 | 82 | 6 | DPN09900501 | 9.90 | 61 | 103 | 10 |
| DPN06000501 | 6.00 | 44 | 82 | 6 | DPN10000501 | 10.00 | 61 | 103 | 10 |
| DPN06100501 | 6.10 | 53 | 91 | 8 | DPN10100501 | 10.10 | 71 | 118 | 12 |
| DPN06200501 | 6.20 | 53 | 91 | 8 | DPN10200501 | 10.20 | 71 | 118 | 12 |
| DPN06300501 | 6.30 | 53 | 91 | 8 | DPN10300501 | 10.30 | 71 | 118 | 12 |
| DPN06350501 | 6.35(1/4") | 53 | 91 | 8 | DPN10400501 | 10.40 | 71 | 118 | 12 |
| DPN06400501 | 6.40 | 53 | 91 | 8 | DPN10500501 | 10.50 | 71 | 118 | 12 |
| DPN06500501 | 6.50 | 53 | 91 | 8 | DPN10600501 | 10.60 | 71 | 118 | 12 |
| DPN06600501 | 6.60 | 53 | 91 | 8 | DPN10700501 | 10.70 | 71 | 118 | 12 |
| DPN06700501 | 6.70 | 53 | 91 | 8 | DPN10800501 | 10.80 | 71 | 118 | 12 |
| DPN06800501 | 6.80 | 53 | 91 | 8 | DPN10900501 | 10.90 | 71 | 118 | 12 |
| DPN06900501 | 6.90 | 53 | 91 | 8 |
