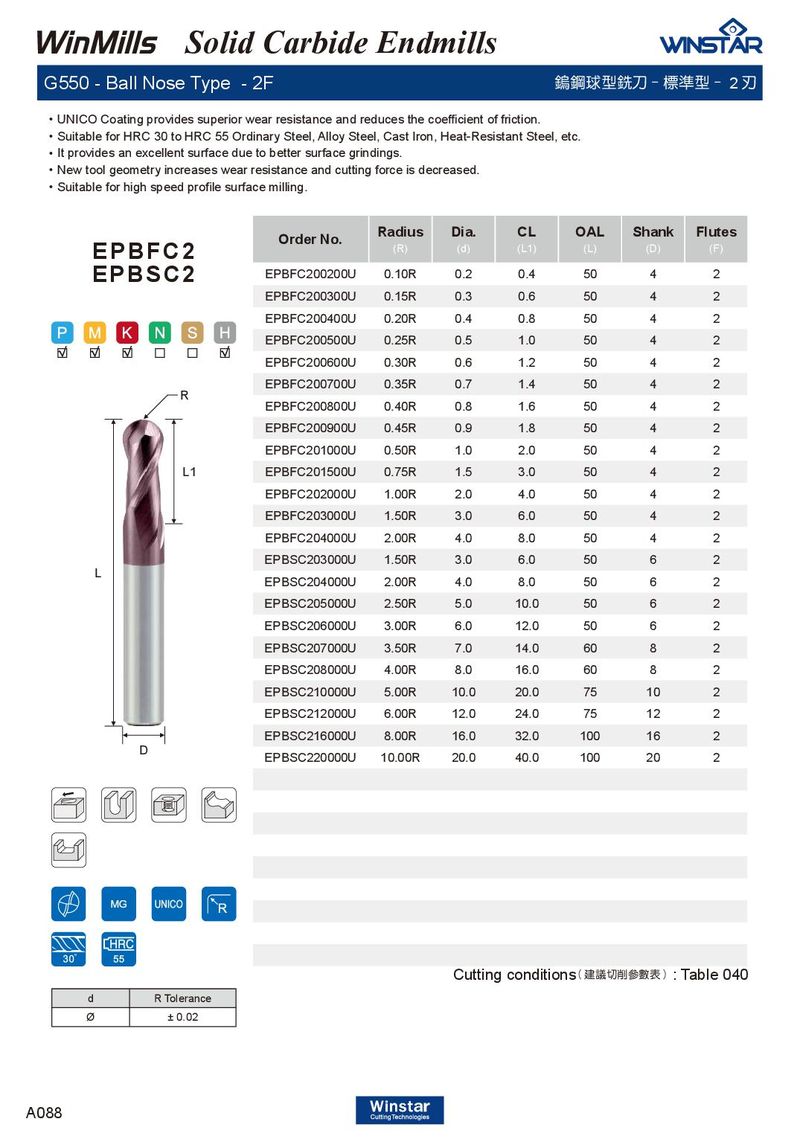

G550 - Ball Nose Type - 2F 鎢鋼球型銑刀 - 標準型 - 2 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．It provides an excellent surface due to better surface grindings. ．New tool geometry increases wear resistance and cutting force is decreased. ．Suitable for high speed profile surface milling.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPBFC200200U | 0.10R | 0.2 | 0.4 | 50 | 4 | 2 |
| EPBFC200300U | 0.15R | 0.3 | 0.6 | 50 | 4 | 2 |
| EPBFC200400U | 0.20R | 0.4 | 0.8 | 50 | 4 | 2 |
| EPBFC200500U | 0.25R | 0.5 | 1.0 | 50 | 4 | 2 |
| EPBFC200600U | 0.30R | 0.6 | 1.2 | 50 | 4 | 2 |
| EPBFC200700U | 0.35R | 0.7 | 1.4 | 50 | 4 | 2 |
| EPBFC200800U | 0.40R | 0.8 | 1.6 | 50 | 4 | 2 |
| EPBFC200900U | 0.45R | 0.9 | 1.8 | 50 | 4 | 2 |
| EPBFC201000U | 0.50R | 1.0 | 2.0 | 50 | 4 | 2 |
| EPBFC201500U | 0.75R | 1.5 | 3.0 | 50 | 4 | 2 |
| EPBFC202000U | 1.00R | 2.0 | 4.0 | 50 | 4 | 2 |
| EPBFC203000U | 1.50R | 3.0 | 6.0 | 50 | 4 | 2 |
| EPBFC204000U | 2.00R | 4.0 | 8.0 | 50 | 4 | 2 |
| EPBSC203000U | 1.50R | 3.0 | 6.0 | 50 | 6 | 2 |
| EPBSC204000U | 2.00R | 4.0 | 8.0 | 50 | 6 | 2 |
| EPBSC205000U | 2.50R | 5.0 | 10.0 | 50 | 6 | 2 |
| EPBSC206000U | 3.00R | 6.0 | 12.0 | 50 | 6 | 2 |
| EPBSC207000U | 3.50R | 7.0 | 14.0 | 60 | 8 | 2 |
| EPBSC208000U | 4.00R | 8.0 | 16.0 | 60 | 8 | 2 |
| EPBSC210000U | 5.00R | 10.0 | 20.0 | 75 | 10 | 2 |
| EPBSC212000U | 6.00R | 12.0 | 24.0 | 75 | 12 | 2 |
| EPBSC216000U | 8.00R | 16.0 | 32.0 | 100 | 16 | 2 |
| EPBSC220000U | 10.00R | 20.0 | 40.0 | 100 | 20 | 2 |
EPBSC2
R
L
D
d R Tolerance Ø ± 0.02
Cutting conditions : Table 040
( 建議切削參數表 )
