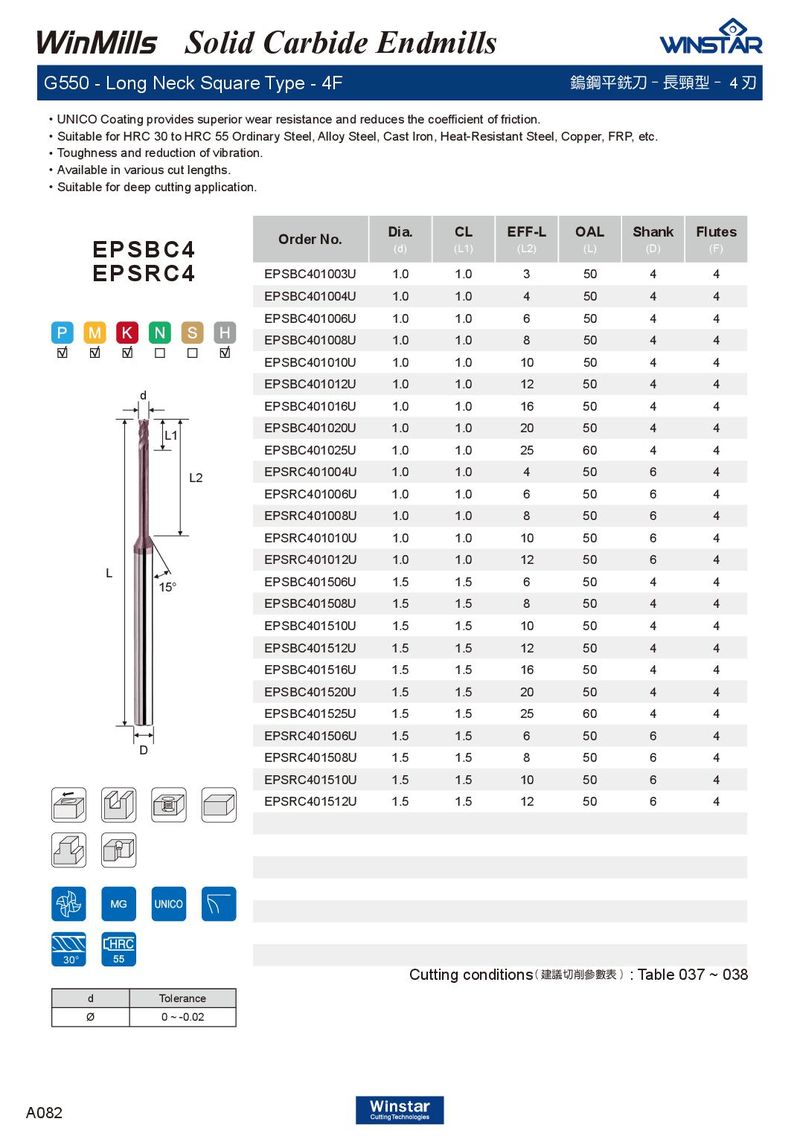

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc. ．Toughness and reduction of vibration. ．Available in various cut lengths. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSBC401003U | 1.0 | 1.0 | 3 | 50 | 4 | 4 |
| EPSBC401004U | 1.0 | 1.0 | 4 | 50 | 4 | 4 |
| EPSBC401006U | 1.0 | 1.0 | 6 | 50 | 4 | 4 |
| EPSBC401008U | 1.0 | 1.0 | 8 | 50 | 4 | 4 |
| EPSBC401010U | 1.0 | 1.0 | 10 | 50 | 4 | 4 |
| EPSBC401012U | 1.0 | 1.0 | 12 | 50 | 4 | 4 |
| EPSBC401016U | 1.0 | 1.0 | 16 | 50 | 4 | 4 |
| EPSBC401020U | 1.0 | 1.0 | 20 | 50 | 4 | 4 |
| EPSBC401025U | 1.0 | 1.0 | 25 | 60 | 4 | 4 |
| EPSRC401004U | 1.0 | 1.0 | 4 | 50 | 6 | 4 |
| EPSRC401006U | 1.0 | 1.0 | 6 | 50 | 6 | 4 |
| EPSRC401008U | 1.0 | 1.0 | 8 | 50 | 6 | 4 |
| EPSRC401010U | 1.0 | 1.0 | 10 | 50 | 6 | 4 |
| EPSRC401012U | 1.0 | 1.0 | 12 | 50 | 6 | 4 |
| EPSBC401506U | 1.5 | 1.5 | 6 | 50 | 4 | 4 |
| EPSBC401508U | 1.5 | 1.5 | 8 | 50 | 4 | 4 |
| EPSBC401510U | 1.5 | 1.5 | 10 | 50 | 4 | 4 |
| EPSBC401512U | 1.5 | 1.5 | 12 | 50 | 4 | 4 |
| EPSBC401516U | 1.5 | 1.5 | 16 | 50 | 4 | 4 |
| EPSBC401520U | 1.5 | 1.5 | 20 | 50 | 4 | 4 |
| EPSBC401525U | 1.5 | 1.5 | 25 | 60 | 4 | 4 |
| EPSRC401506U | 1.5 | 1.5 | 6 | 50 | 6 | 4 |
| EPSRC401508U | 1.5 | 1.5 | 8 | 50 | 6 | 4 |
| EPSRC401510U | 1.5 | 1.5 | 10 | 50 | 6 | 4 |
| EPSRC401512U | 1.5 | 1.5 | 12 | 50 | 6 | 4 |
EPSRC4
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 037 ~ 038
( 建議切削參數表 )
