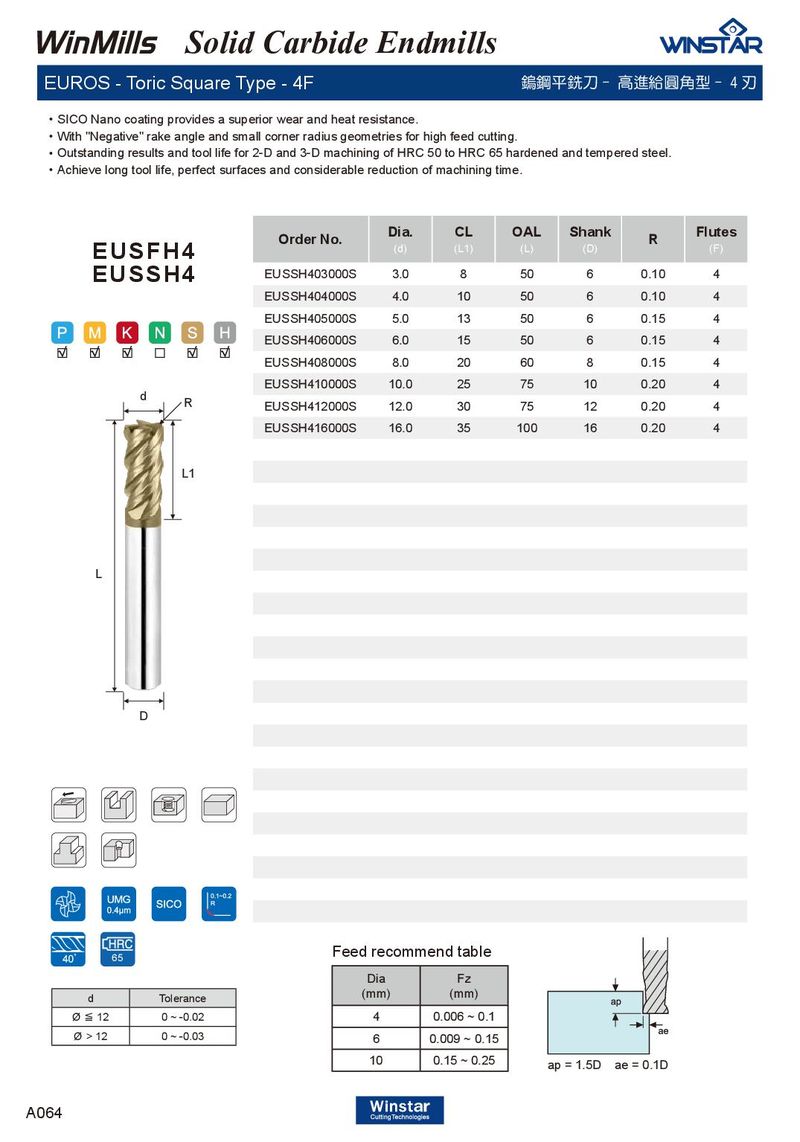

EUROS - Toric Square Type - 4F 鎢鋼平銑刀 - 高進給圓角型 - 4 刃
．SICO Nano coating provides a superior wear and heat resistance. ．With "Negative" rake angle and small corner radius geometries for high feed cutting. ．Outstanding results and tool life for 2-D and 3-D machining of HRC 50 to HRC 65 hardened and tempered steel. ．Achieve long tool life, perfect surfaces and considerable reduction of machining time.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | R | Flutes (F) |
| EUSSH403000S | 3.0 | 8 | 50 | 6 | 0.10 | 4 |
| EUSSH404000S | 4.0 | 10 | 50 | 6 | 0.10 | 4 |
| EUSSH405000S | 5.0 | 13 | 50 | 6 | 0.15 | 4 |
| EUSSH406000S | 6.0 | 15 | 50 | 6 | 0.15 | 4 |
| EUSSH408000S | 8.0 | 20 | 60 | 8 | 0.15 | 4 |
| EUSSH410000S | 10.0 | 25 | 75 | 10 | 0.20 | 4 |
| EUSSH412000S | 12.0 | 30 | 75 | 12 | 0.20 | 4 |
| EUSSH416000S | 16.0 | 35 | 100 | 16 | 0.20 | 4 |
EUSSH4
d
L1
L
D
Feed recommend table
65
| Dia | Fz |
| (mm) | (mm) |
| 4 | 0.006 ~ 0.1 |
| 6 | 0.009 ~ 0.15 |
| 10 | 0.15 ~ 0.25 |
| d | Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
