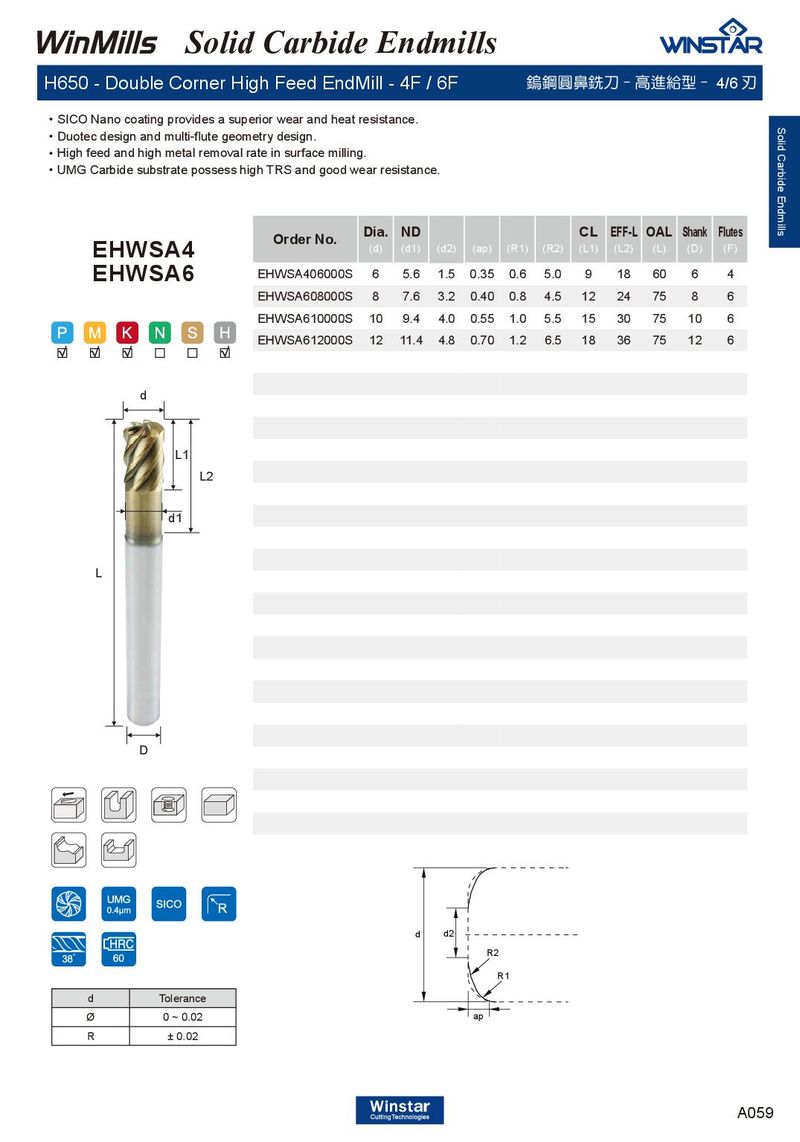

H650 - Double Corner High Feed EndMill - 4F / 6F 鎢鋼圓鼻銑刀 - 高進給型 - 4/6 刃
．SICO Nano coating provides a superior wear and heat resistance. ．Duotec design and multi-flute geometry design. ．High feed and high metal removal rate in surface milling. ．UMG Carbide substrate possess high TRS and good wear resistance.
| Order No. | Dia. (d) | ND (d1) | (d2) | (ap) | (R1) | (R2) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHWSA406000S | 6 | 5.6 | 1.5 | 0.35 | 0.6 | 5.0 | 9 | 18 | 60 | 6 | 4 |
| EHWSA608000S | 8 | 7.6 | 3.2 | 0.40 | 0.8 | 4.5 | 12 | 24 | 75 | 8 | 6 |
| EHWSA610000S | 10 | 9.4 | 4.0 | 0.55 | 1.0 | 5.5 | 15 | 30 | 75 | 10 | 6 |
| EHWSA612000S | 12 | 11.4 | 4.8 | 0.70 | 1.2 | 6.5 | 18 | 36 | 75 | 12 | 6 |
EHWSA6
d
L1 L2 d1
L
D
d d2 R2 R1
| d | Tolerance |
| Ø | 0 ~ 0.02 |
| R | ± 0.02 |
