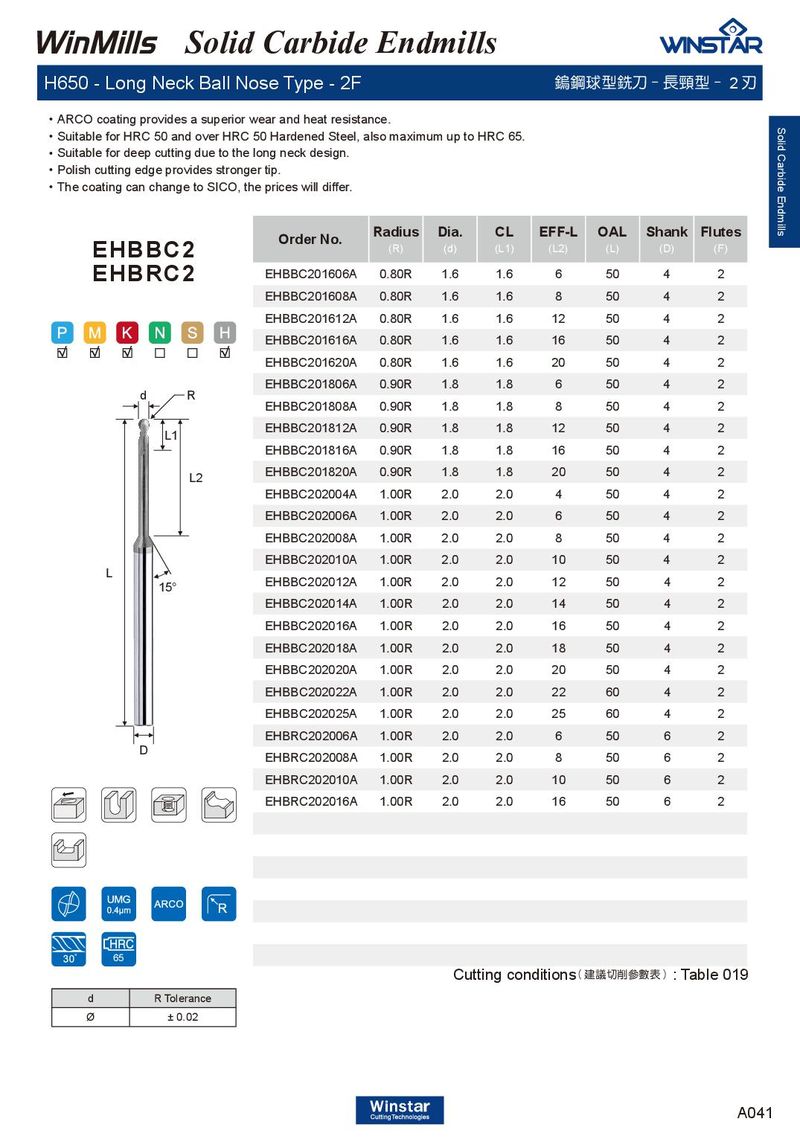

．ARCO coating provides a superior wear and heat resistance. ．Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ．Suitable for deep cutting due to the long neck design. ．Polish cutting edge provides stronger tip. ．The coating can change to SICO, the prices will differ.

Order No.Radius (R)Dia. (d)CL (L1)EFF-L (L2)OAL (L)Shank (D)Flutes (F)
EHBBC201606A0.80R1.61.665042
EHBBC201608A0.80R1.61.685042
EHBBC201612A0.80R1.61.6125042
EHBBC201616A0.80R1.61.6165042
EHBBC201620A0.80R1.61.6205042
EHBBC201806A0.90R1.81.865042
EHBBC201808A0.90R1.81.885042
EHBBC201812A0.90R1.81.8125042
EHBBC201816A0.90R1.81.8165042
EHBBC201820A0.90R1.81.8205042
EHBBC202004A1.00R2.02.045042
EHBBC202006A1.00R2.02.065042
EHBBC202008A1.00R2.02.085042
EHBBC202010A1.00R2.02.0105042
EHBBC202012A1.00R2.02.0125042
EHBBC202014A1.00R2.02.0145042
EHBBC202016A1.00R2.02.0165042
EHBBC202018A1.00R2.02.0185042
EHBBC202020A1.00R2.02.0205042
EHBBC202022A1.00R2.02.0226042
EHBBC202025A1.00R2.02.0256042
EHBRC202006A1.00R2.02.065062
EHBRC202008A1.00R2.02.085062
EHBRC202010A1.00R2.02.0105062
EHBRC202016A1.00R2.02.0165062

EHBRC2

d R L1

L

D

65 d R Tolerance Ø ± 0.02

Cutting conditions : Table 019

( 建議切削參數表 )
