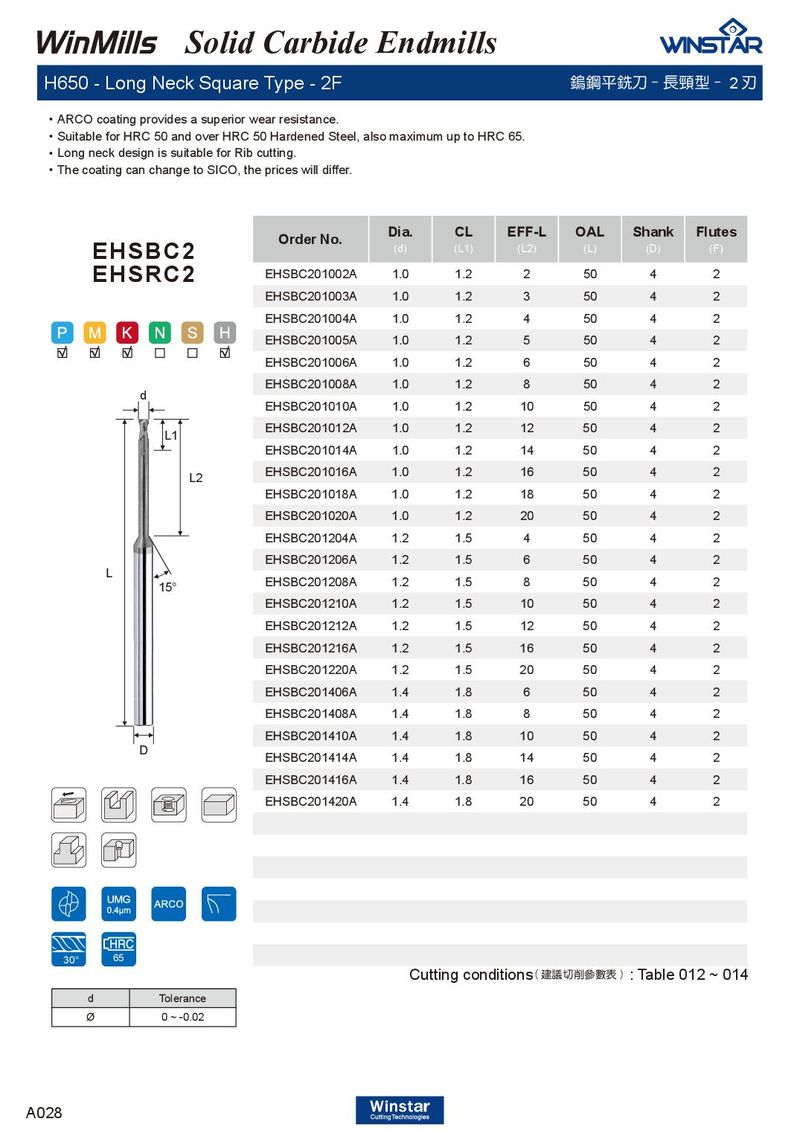

．ARCO coating provides a superior wear resistance. ．Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ．Long neck design is suitable for Rib cutting. ．The coating can change to SICO, the prices will differ.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHSBC201002A | 1.0 | 1.2 | 2 | 50 | 4 | 2 |
| EHSBC201003A | 1.0 | 1.2 | 3 | 50 | 4 | 2 |
| EHSBC201004A | 1.0 | 1.2 | 4 | 50 | 4 | 2 |
| EHSBC201005A | 1.0 | 1.2 | 5 | 50 | 4 | 2 |
| EHSBC201006A | 1.0 | 1.2 | 6 | 50 | 4 | 2 |
| EHSBC201008A | 1.0 | 1.2 | 8 | 50 | 4 | 2 |
| EHSBC201010A | 1.0 | 1.2 | 10 | 50 | 4 | 2 |
| EHSBC201012A | 1.0 | 1.2 | 12 | 50 | 4 | 2 |
| EHSBC201014A | 1.0 | 1.2 | 14 | 50 | 4 | 2 |
| EHSBC201016A | 1.0 | 1.2 | 16 | 50 | 4 | 2 |
| EHSBC201018A | 1.0 | 1.2 | 18 | 50 | 4 | 2 |
| EHSBC201020A | 1.0 | 1.2 | 20 | 50 | 4 | 2 |
| EHSBC201204A | 1.2 | 1.5 | 4 | 50 | 4 | 2 |
| EHSBC201206A | 1.2 | 1.5 | 6 | 50 | 4 | 2 |
| EHSBC201208A | 1.2 | 1.5 | 8 | 50 | 4 | 2 |
| EHSBC201210A | 1.2 | 1.5 | 10 | 50 | 4 | 2 |
| EHSBC201212A | 1.2 | 1.5 | 12 | 50 | 4 | 2 |
| EHSBC201216A | 1.2 | 1.5 | 16 | 50 | 4 | 2 |
| EHSBC201220A | 1.2 | 1.5 | 20 | 50 | 4 | 2 |
| EHSBC201406A | 1.4 | 1.8 | 6 | 50 | 4 | 2 |
| EHSBC201408A | 1.4 | 1.8 | 8 | 50 | 4 | 2 |
| EHSBC201410A | 1.4 | 1.8 | 10 | 50 | 4 | 2 |
| EHSBC201414A | 1.4 | 1.8 | 14 | 50 | 4 | 2 |
| EHSBC201416A | 1.4 | 1.8 | 16 | 50 | 4 | 2 |
| EHSBC201420A | 1.4 | 1.8 | 20 | 50 | 4 | 2 |
EHSRC2
d L1
L
D
30° 65 d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 012 ~ 014
( 建議切削參數表 )
