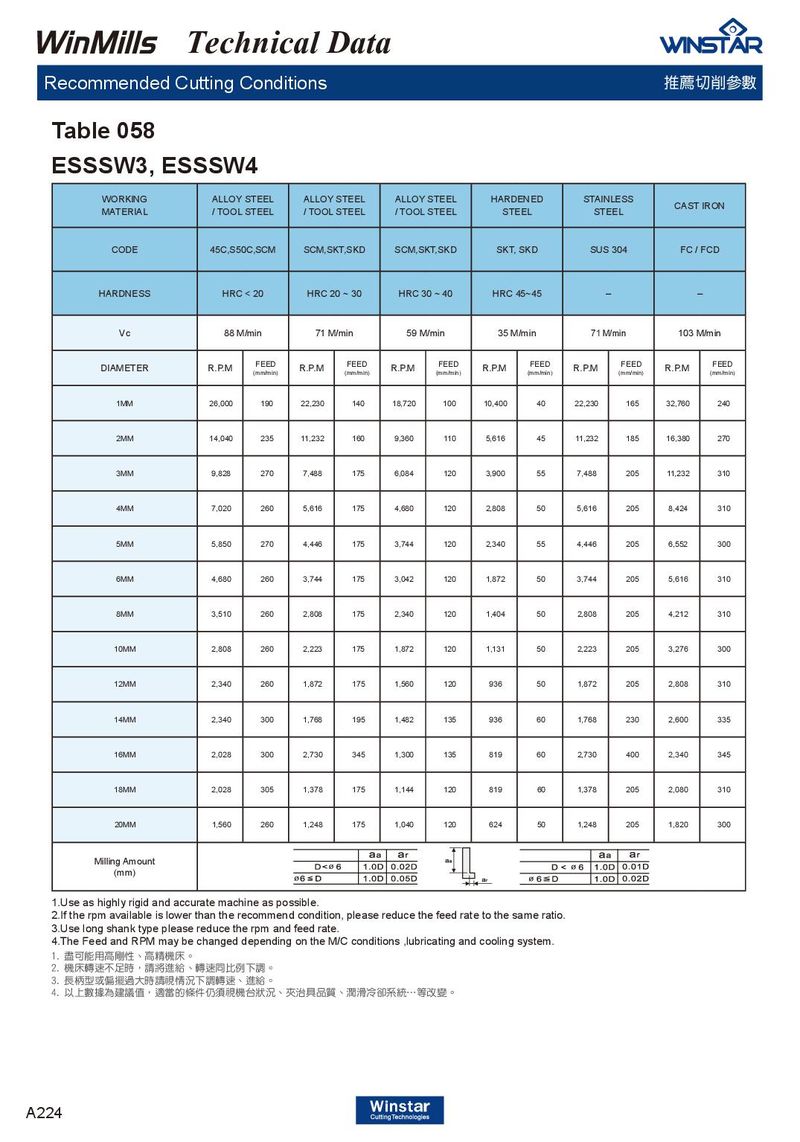

Table 058

ESSSW3, ESSSW4

WORKING MATERIAL CODE HARDNESSALLOY / TOOL 45C,S50 HRCSTEEL STEEL C,SCM < 20ALLOY / TOOL SCM,SK HRC 2STEEL STEEL T,SKD 0 ~ 30ALLOY / TOOL SCM,SK HRC 3STEEL STEEL T,SKD 0 ~ 40HARD STE SKT, HRC 4ENED EL SKD 5~45STAIN STE SUS ‒LESS EL 304CAST FC /IRON FCD ‒
Vc88 M/min71 M/min59 M/min35 M/min71 M/min103M/min
DIAMETERR.P.MFEED (mm/min)R.P.MFEED (mm/min)R.P.MFEED (mm/min)R.P.MFEED (mm/min)R.P.MFEED (mm/min)R.P.MFEED (mm/min)
1MM26,00019022,23014018,72010010,4004022,23016532,760240
2MM14,04023511,2321609,3601105,6164511,23218516,380270
3MM9,8282707,4881756,0841203,900557,48820511,232310
4MM7,0202605,6161754,6801202,808505,6162058,424310
5MM5,8502704,4461753,7441202,340554,4462056,552300
6MM4,6802603,7441753,0421201,872503,7442055,616310
8MM3,5102602,8081752,3401201,404502,8082054,212310
10MM2,8082602,2231751,8721201,131502,2232053,276300
12MM2,3402601,8721751,560120936501,8722052,808310
14MM2,3403001,7681951,482135936601,7682302,600335
16MM2,0283002,7303451,300135819602,7304002,340345
18MM2,0283051,3781751,144120819601,3782052,080310
20MM1,5602601,2481751,040120624501,2482051,820300
Milling Amount (mm)

1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system.

1. 盡可能用高剛性、高精機床。

2. 機床轉速不足時，請將進給、轉速同比例下調。

3. 長柄型或偏擺過大時請視情況下調轉速、進給。

4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
