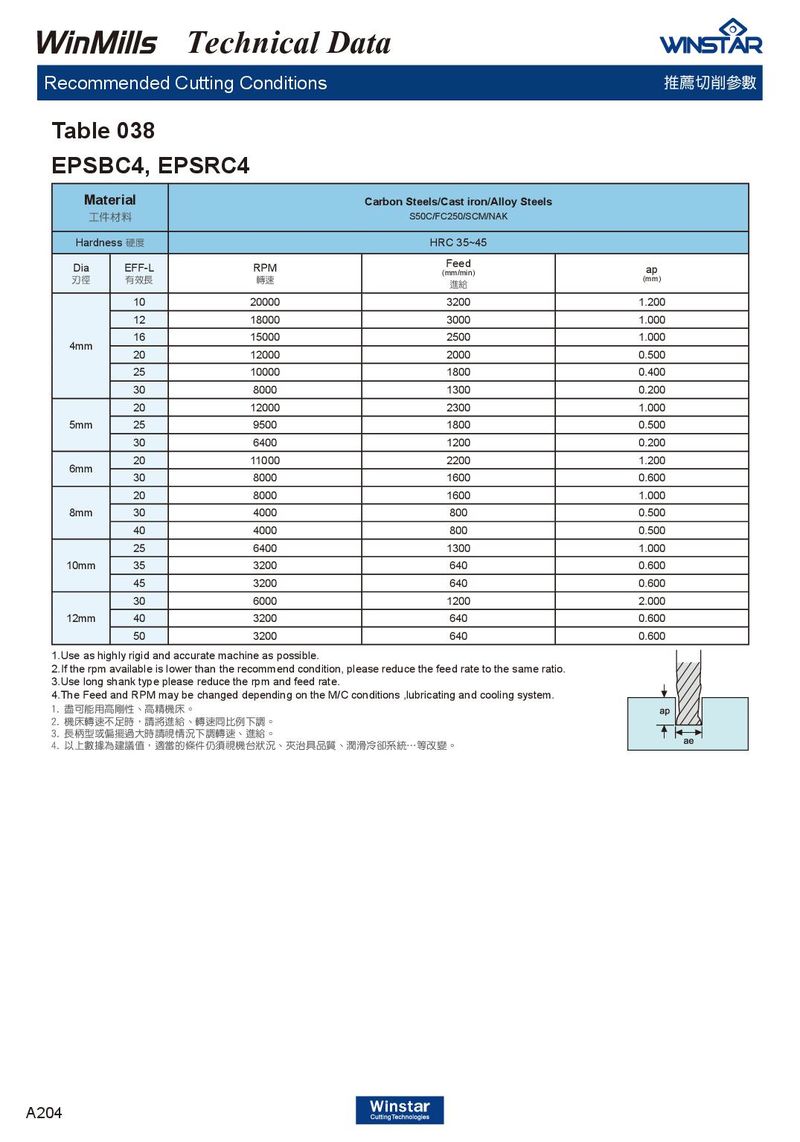

Table 038
EPSBC4, EPSRC4
| Mat 工件 | erial 材料 | Carbon Steels/Cast iron/Alloy Steels S50C/FC250/SCM/NAK |
| Hardne | ss 硬度 | HRC 35~45 |
| Dia 刃徑 | EFF-L 有效長 | RPM 轉速 Feed (mm/min) 進給 ap (mm) |
| 10 | 20000 3200 1.200 | |
| 12 | 18000 3000 1.000 | |
| 16 | 15000 2500 1.000 | |
| 4mm | 20 | 12000 2000 0.500 |
| 25 | 10000 1800 0.400 | |
| 30 | 8000 1300 0.200 | |
| 20 | 12000 2300 1.000 | |
| 5mm | 25 | 9500 1800 0.500 |
| 30 | 6400 1200 0.200 | |
| 6 | 20 | 11000 2200 1.200 |
| mm | 30 | 8000 1600 0.600 |
| 20 | 8000 1600 1.000 | |
| 8mm | 30 | 4000 800 0.500 |
| 40 | 4000 800 0.500 | |
| 25 | 6400 1300 1.000 | |
| 10mm | 35 | 3200 640 0.600 |
| 45 | 3200 640 0.600 | |
| 30 | 6000 1200 2.000 | |
| 12mm | 40 | 3200 640 0.600 |
| 50 | 3200 640 0.600 |
1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 1. 盡可能用高剛性、高精機床。 2. 機床轉速不足時，請將進給、轉速同比例下調。 3. 長柄型或偏擺過大時請視情況下調轉速、進給。 4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
