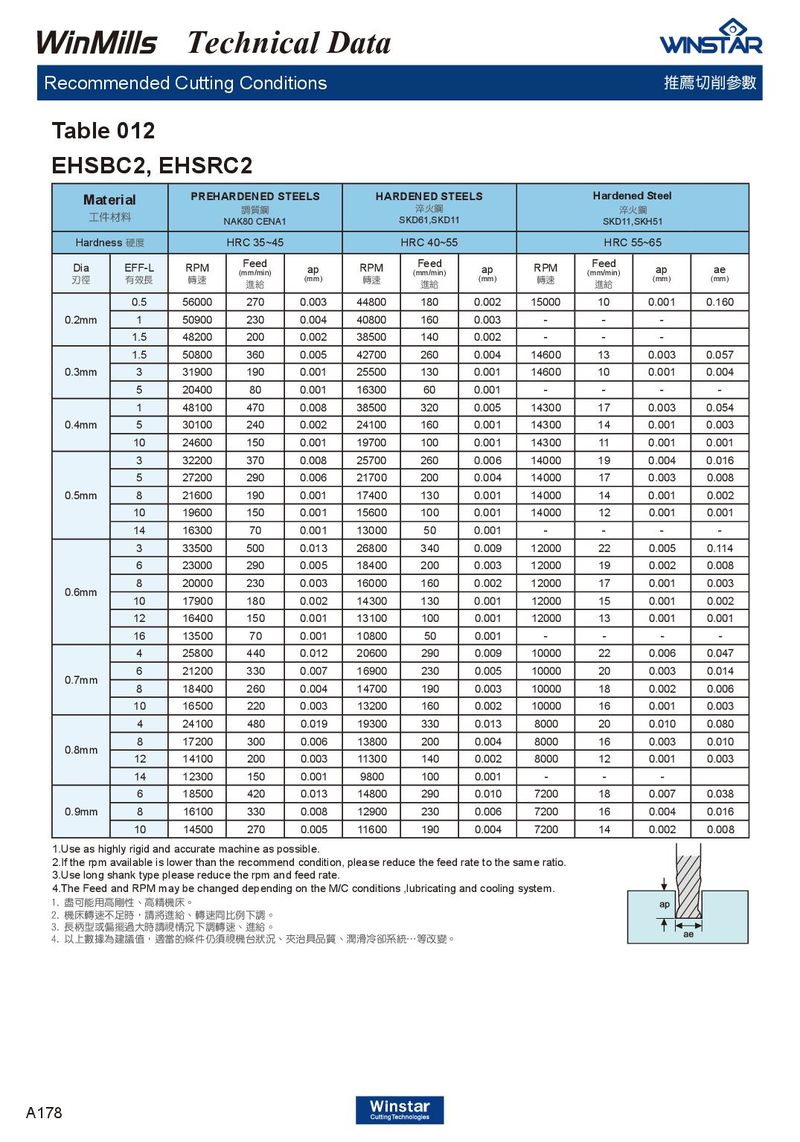

Table 012

EHSBC2, EHSRC2

Mat 工件 Hardne	erial 材料 ss 硬度	PREHA N	RDENED S 調質鋼 AK80 CENA1 HRC 35~45 Fd	TEELS	HAR	DENED STE 淬火鋼 SKD61,SKD11 HRC 40~55 Fd	ELS		Harden 淬 SKD11 HRC Fd	ed Steel 火鋼 ,SKH51 55~65
Dia 刃徑	EFF-L 有效長	RPM 轉速	ee (mm/min) 進給	ap (mm)	RPM 轉速	ee (mm/min) 進給	ap (mm)	RPM 轉速	ee (mm/min) 進給	ap (mm)	ae (mm)
	0.5	56000	270	0.003	44800	180	0.002	15000	10	0.001	0.160
0.2mm	1	50900	230	0.004	40800	160	0.003	-	-	-
	1.5	48200	200	0.002	38500	140	0.002	-	-	-
	1.5	50800	360	0.005	42700	260	0.004	14600	13	0.003	0.057
0.3mm	3	31900	190	0.001	25500	130	0.001	14600	10	0.001	0.004
	5	20400	80	0.001	16300	60	0.001	-	-	-	-
	1	48100	470	0.008	38500	320	0.005	14300	17	0.003	0.054
0.4mm	5	30100	240	0.002	24100	160	0.001	14300	14	0.001	0.003
	10	24600	150	0.001	19700	100	0.001	14300	11	0.001	0.001
	3	32200	370	0.008	25700	260	0.006	14000	19	0.004	0.016
	5	27200	290	0.006	21700	200	0.004	14000	17	0.003	0.008
0.5mm	8	21600	190	0.001	17400	130	0.001	14000	14	0.001	0.002
	10	19600	150	0.001	15600	100	0.001	14000	12	0.001	0.001
	14	16300	70	0.001	13000	50	0.001	-	-	-	-
	3	33500	500	0.013	26800	340	0.009	12000	22	0.005	0.114
	6	23000	290	0.005	18400	200	0.003	12000	19	0.002	0.008
	8	20000	230	0.003	16000	160	0.002	12000	17	0.001	0.003
0.6mm	10	17900	180	0.002	14300	130	0.001	12000	15	0.001	0.002
	12	16400	150	0.001	13100	100	0.001	12000	13	0.001	0.001
	16	13500	70	0.001	10800	50	0.001	-	-	-	-
	4	25800	440	0.012	20600	290	0.009	10000	22	0.006	0.047
07mm	6	21200	330	0.007	16900	230	0.005	10000	20	0.003	0.014
.	8	18400	260	0.004	14700	190	0.003	10000	18	0.002	0.006
	10	16500	220	0.003	13200	160	0.002	10000	16	0.001	0.003
	4	24100	480	0.019	19300	330	0.013	8000	20	0.010	0.080
	8	17200	300	0.006	13800	200	0.004	8000	16	0.003	0.010
0.8mm	12	14100	200	0.003	11300	140	0.002	8000	12	0.001	0.003
	14	12300	150	0.001	9800	100	0.001	-	-	-
	6	18500	420	0.013	14800	290	0.010	7200	18	0.007	0.038
0.9mm	8	16100	330	0.008	12900	230	0.006	7200	16	0.004	0.016
	10	14500	270	0.005	11600	190	0.004	7200	14	0.002	0.008

1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 1. 盡可能用高剛性、高精機床。 2. 機床轉速不足時，請將進給、轉速同比例下調。 3. 長柄型或偏擺過大時請視情況下調轉速、進給。 4. 以上數據為建議值，適當的條件仍須視機台狀況、夾治具品質、潤滑冷卻系統…等改變。
