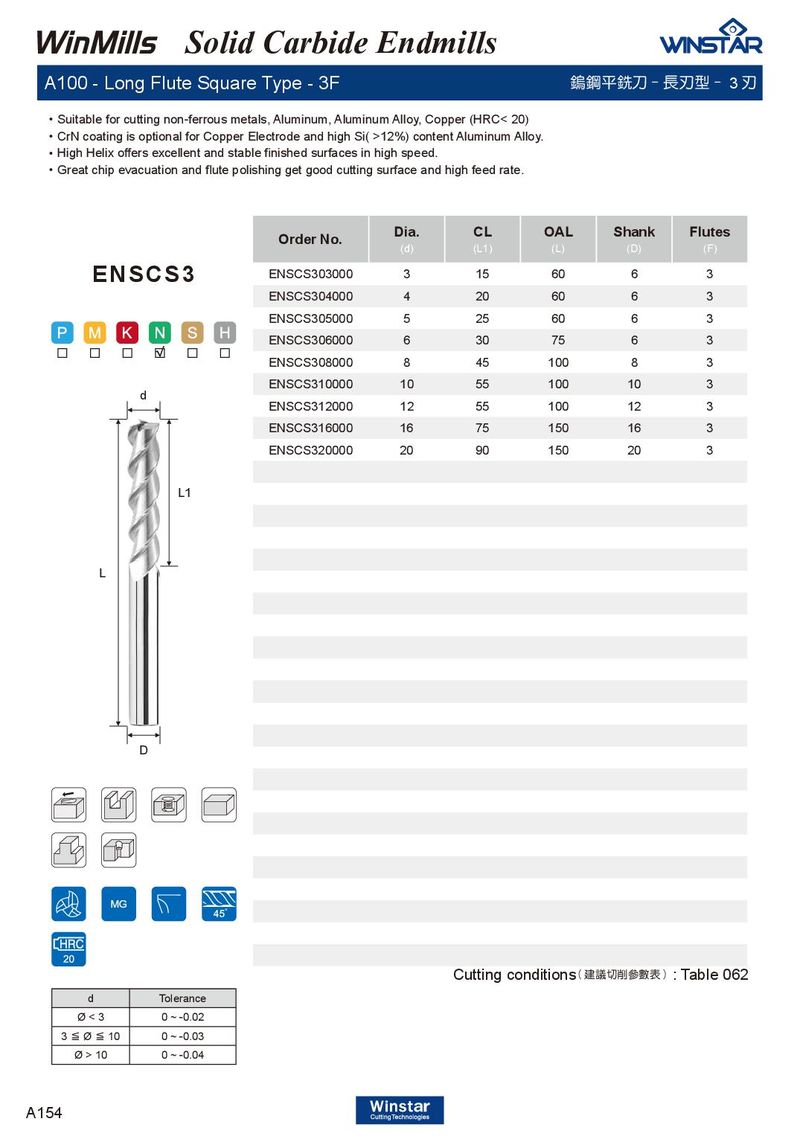

A100 - Long Flute Square Type - 3F 鎢鋼平銑刀 - 長刃型 - 3 刃
．Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20) ．CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ．High Helix offers excellent and stable finished surfaces in high speed. ．Great chip evacuation and flute polishing get good cutting surface and high feed rate.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ENSCS303000 | 3 | 15 | 60 | 6 | 3 |
| ENSCS304000 | 4 | 20 | 60 | 6 | 3 |
| ENSCS305000 | 5 | 25 | 60 | 6 | 3 |
| ENSCS306000 | 6 | 30 | 75 | 6 | 3 |
| ENSCS308000 | 8 | 45 | 100 | 8 | 3 |
| ENSCS310000 | 10 | 55 | 100 | 10 | 3 |
| ENSCS312000 | 12 | 55 | 100 | 12 | 3 |
| ENSCS316000 | 16 | 75 | 150 | 16 | 3 |
| ENSCS320000 | 20 | 90 | 150 | 20 | 3 |
ENSCS3
d
L1
L
D
Cutting conditions : Table 062
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
