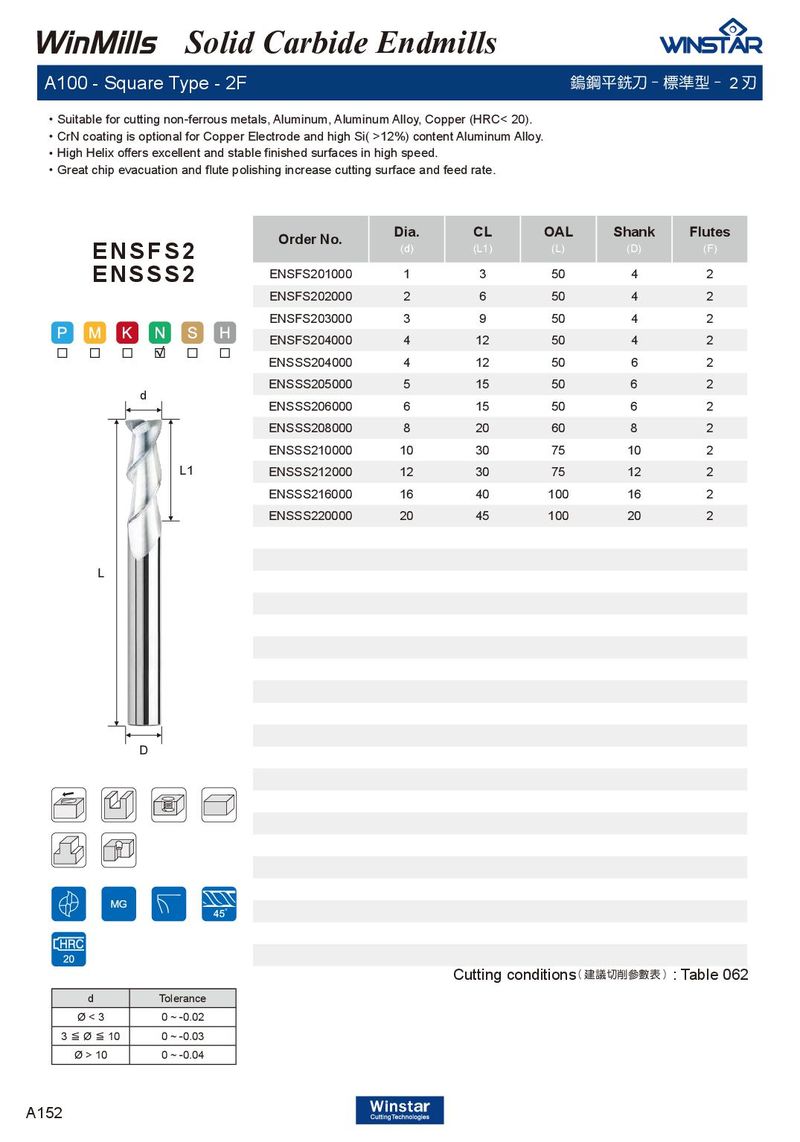

．Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20). ．CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ．High Helix offers excellent and stable finished surfaces in high speed. ．Great chip evacuation and flute polishing increase cutting surface and feed rate.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ENSFS201000 | 1 | 3 | 50 | 4 | 2 |
| ENSFS202000 | 2 | 6 | 50 | 4 | 2 |
| ENSFS203000 | 3 | 9 | 50 | 4 | 2 |
| ENSFS204000 | 4 | 12 | 50 | 4 | 2 |
| ENSSS204000 | 4 | 12 | 50 | 6 | 2 |
| ENSSS205000 | 5 | 15 | 50 | 6 | 2 |
| ENSSS206000 | 6 | 15 | 50 | 6 | 2 |
| ENSSS208000 | 8 | 20 | 60 | 8 | 2 |
| ENSSS210000 | 10 | 30 | 75 | 10 | 2 |
| ENSSS212000 | 12 | 30 | 75 | 12 | 2 |
| ENSSS216000 | 16 | 40 | 100 | 16 | 2 |
| ENSSS220000 | 20 | 45 | 100 | 20 | 2 |
ENSSS2
d
L
D
Cutting conditions : Table 062
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
