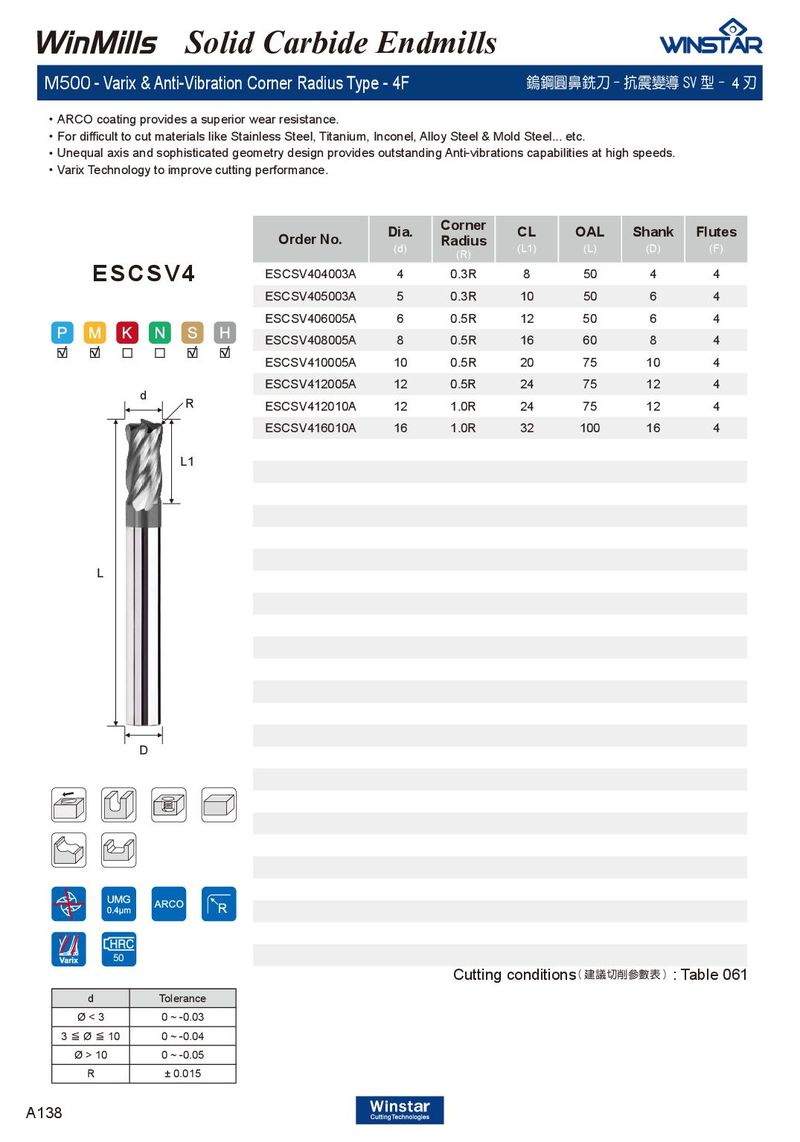

M500 - Varix & Anti-Vibration Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 抗震變導 SV 型 - 4 刃
．ARCO coating provides a superior wear resistance. ．For difficult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc. ．Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities at high speeds. ．Varix Technology to improve cutting performance.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ESCSV404003A | 4 | 0.3R | 8 | 50 | 4 | 4 |
| ESCSV405003A | 5 | 0.3R | 10 | 50 | 6 | 4 |
| ESCSV406005A | 6 | 0.5R | 12 | 50 | 6 | 4 |
| ESCSV408005A | 8 | 0.5R | 16 | 60 | 8 | 4 |
| ESCSV410005A | 10 | 0.5R | 20 | 75 | 10 | 4 |
| ESCSV412005A | 12 | 0.5R | 24 | 75 | 12 | 4 |
| ESCSV412010A | 12 | 1.0R | 24 | 75 | 12 | 4 |
| ESCSV416010A | 16 | 1.0R | 32 | 100 | 16 | 4 |
ESCSV4
d
L1
L
D
50
Cutting conditions : Table 061
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
| R | ± 0.015 |
