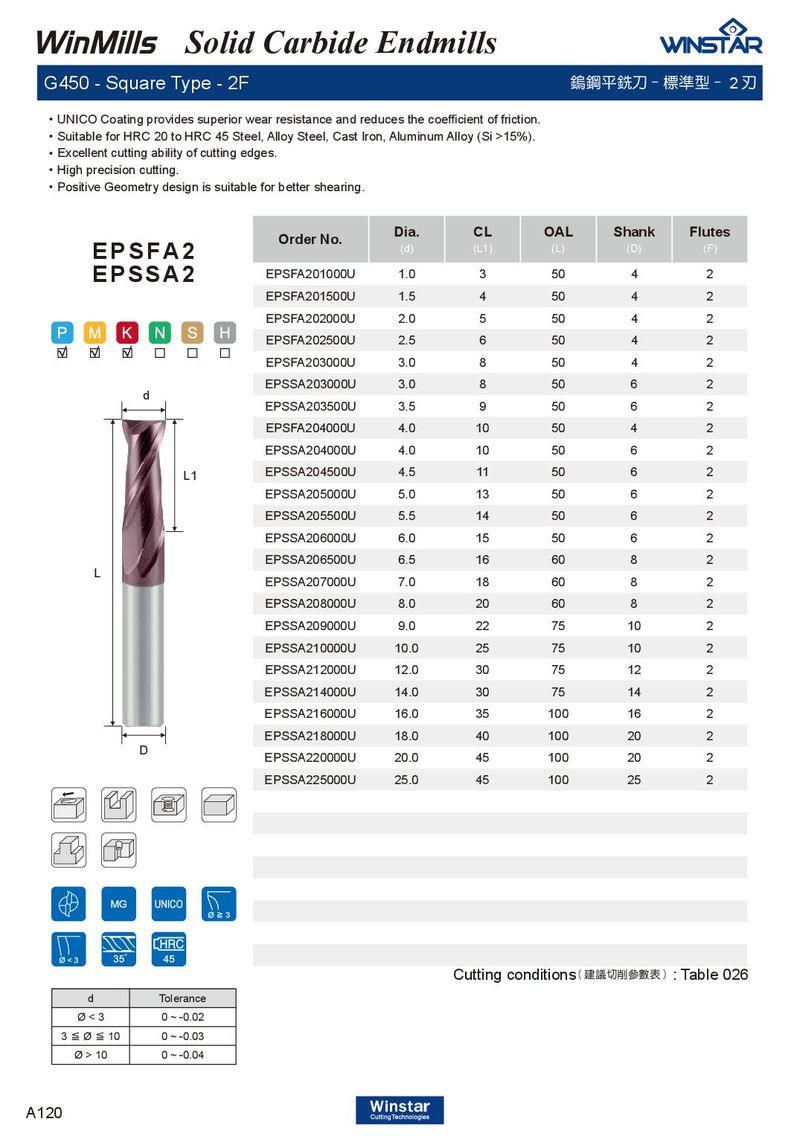

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 20 to HRC 45 Steel, Alloy Steel, Cast Iron, Aluminum Alloy (Si >15%). ．Excellent cutting ability of cutting edges. ．High precision cutting. ．Positive Geometry design is suitable for better shearing.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSFA201000U | 1.0 | 3 | 50 | 4 | 2 |
| EPSFA201500U | 1.5 | 4 | 50 | 4 | 2 |
| EPSFA202000U | 2.0 | 5 | 50 | 4 | 2 |
| EPSFA202500U | 2.5 | 6 | 50 | 4 | 2 |
| EPSFA203000U | 3.0 | 8 | 50 | 4 | 2 |
| EPSSA203000U | 3.0 | 8 | 50 | 6 | 2 |
| EPSSA203500U | 3.5 | 9 | 50 | 6 | 2 |
| EPSFA204000U | 4.0 | 10 | 50 | 4 | 2 |
| EPSSA204000U | 4.0 | 10 | 50 | 6 | 2 |
| EPSSA204500U | 4.5 | 11 | 50 | 6 | 2 |
| EPSSA205000U | 5.0 | 13 | 50 | 6 | 2 |
| EPSSA205500U | 5.5 | 14 | 50 | 6 | 2 |
| EPSSA206000U | 6.0 | 15 | 50 | 6 | 2 |
| EPSSA206500U | 6.5 | 16 | 60 | 8 | 2 |
| EPSSA207000U | 7.0 | 18 | 60 | 8 | 2 |
| EPSSA208000U | 8.0 | 20 | 60 | 8 | 2 |
| EPSSA209000U | 9.0 | 22 | 75 | 10 | 2 |
| EPSSA210000U | 10.0 | 25 | 75 | 10 | 2 |
| EPSSA212000U | 12.0 | 30 | 75 | 12 | 2 |
| EPSSA214000U | 14.0 | 30 | 75 | 14 | 2 |
| EPSSA216000U | 16.0 | 35 | 100 | 16 | 2 |
| EPSSA218000U | 18.0 | 40 | 100 | 20 | 2 |
| EPSSA220000U | 20.0 | 45 | 100 | 20 | 2 |
| EPSSA225000U | 25.0 | 45 | 100 | 25 | 2 |
EPSSA2
d
L
D
Cutting conditions : Table 026
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
