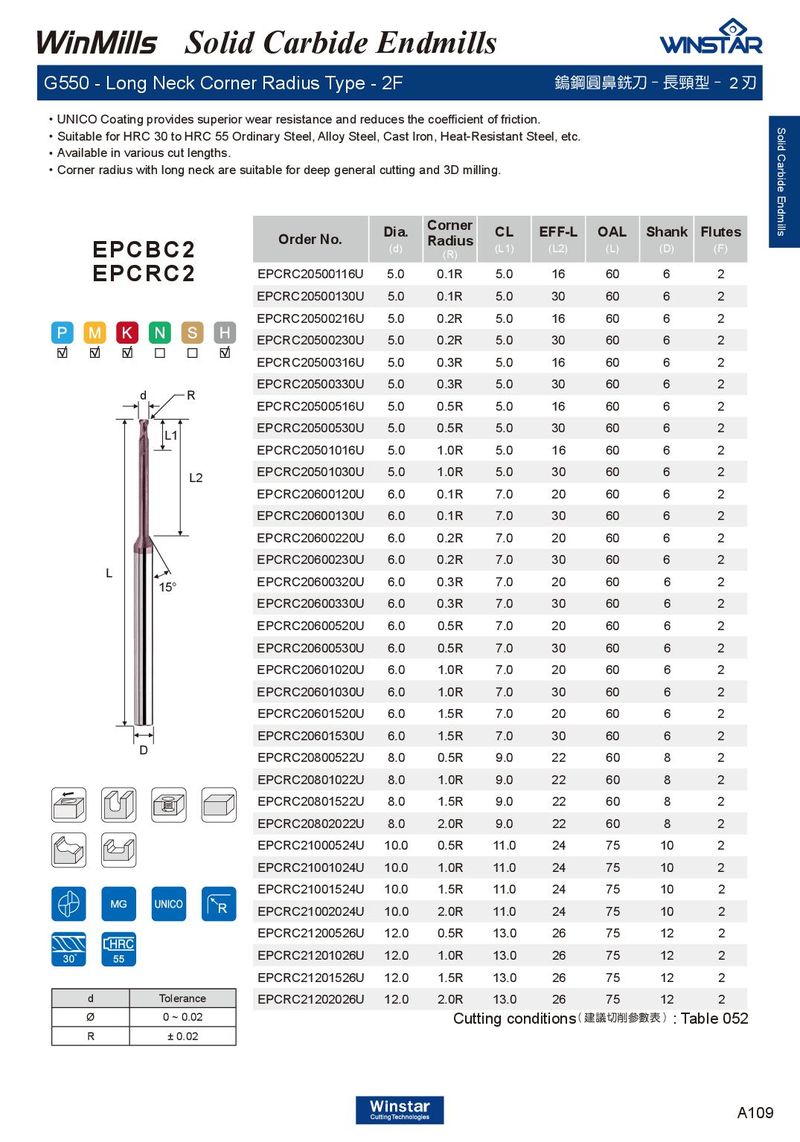

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Available in various cut lengths. ．Corner radius with long neck are suitable for deep general cutting and 3D milling.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPCRC20500116U | 5.0 | 0.1R | 5.0 | 16 | 60 | 6 | 2 |
| EPCRC20500130U | 5.0 | 0.1R | 5.0 | 30 | 60 | 6 | 2 |
| EPCRC20500216U | 5.0 | 0.2R | 5.0 | 16 | 60 | 6 | 2 |
| EPCRC20500230U | 5.0 | 0.2R | 5.0 | 30 | 60 | 6 | 2 |
| EPCRC20500316U | 5.0 | 0.3R | 5.0 | 16 | 60 | 6 | 2 |
| EPCRC20500330U | 5.0 | 0.3R | 5.0 | 30 | 60 | 6 | 2 |
| EPCRC20500516U | 5.0 | 0.5R | 5.0 | 16 | 60 | 6 | 2 |
| EPCRC20500530U | 5.0 | 0.5R | 5.0 | 30 | 60 | 6 | 2 |
| EPCRC20501016U | 5.0 | 1.0R | 5.0 | 16 | 60 | 6 | 2 |
| EPCRC20501030U | 5.0 | 1.0R | 5.0 | 30 | 60 | 6 | 2 |
| EPCRC20600120U | 6.0 | 0.1R | 7.0 | 20 | 60 | 6 | 2 |
| EPCRC20600130U | 6.0 | 0.1R | 7.0 | 30 | 60 | 6 | 2 |
| EPCRC20600220U | 6.0 | 0.2R | 7.0 | 20 | 60 | 6 | 2 |
| EPCRC20600230U | 6.0 | 0.2R | 7.0 | 30 | 60 | 6 | 2 |
| EPCRC20600320U | 6.0 | 0.3R | 7.0 | 20 | 60 | 6 | 2 |
| EPCRC20600330U | 6.0 | 0.3R | 7.0 | 30 | 60 | 6 | 2 |
| EPCRC20600520U | 6.0 | 0.5R | 7.0 | 20 | 60 | 6 | 2 |
| EPCRC20600530U | 6.0 | 0.5R | 7.0 | 30 | 60 | 6 | 2 |
| EPCRC20601020U | 6.0 | 1.0R | 7.0 | 20 | 60 | 6 | 2 |
| EPCRC20601030U | 6.0 | 1.0R | 7.0 | 30 | 60 | 6 | 2 |
| EPCRC20601520U | 6.0 | 1.5R | 7.0 | 20 | 60 | 6 | 2 |
| EPCRC20601530U | 6.0 | 1.5R | 7.0 | 30 | 60 | 6 | 2 |
| EPCRC20800522U | 8.0 | 0.5R | 9.0 | 22 | 60 | 8 | 2 |
| EPCRC20801022U | 8.0 | 1.0R | 9.0 | 22 | 60 | 8 | 2 |
| EPCRC20801522U | 8.0 | 1.5R | 9.0 | 22 | 60 | 8 | 2 |
| EPCRC20802022U | 8.0 | 2.0R | 9.0 | 22 | 60 | 8 | 2 |
| EPCRC21000524U | 10.0 | 0.5R | 11.0 | 24 | 75 | 10 | 2 |
| EPCRC21001024U | 10.0 | 1.0R | 11.0 | 24 | 75 | 10 | 2 |
| EPCRC21001524U | 10.0 | 1.5R | 11.0 | 24 | 75 | 10 | 2 |
| EPCRC21002024U | 10.0 | 2.0R | 11.0 | 24 | 75 | 10 | 2 |
| EPCRC21200526U | 12.0 | 0.5R | 13.0 | 26 | 75 | 12 | 2 |
| EPCRC21201026U | 12.0 | 1.0R | 13.0 | 26 | 75 | 12 | 2 |
| EPCRC21201526U | 12.0 | 1.5R | 13.0 | 26 | 75 | 12 | 2 |
| EPCRC21202026U | 12.0 | 2.0R | 13.0 | 26 | 75 | 12 | 2 |
EPCRC2
d R L1
L
D
| d | Tolerance |
| Ø | 0 ~ 0.02 |
| R | ± 0.02 |
( 建議切削參數表 )
