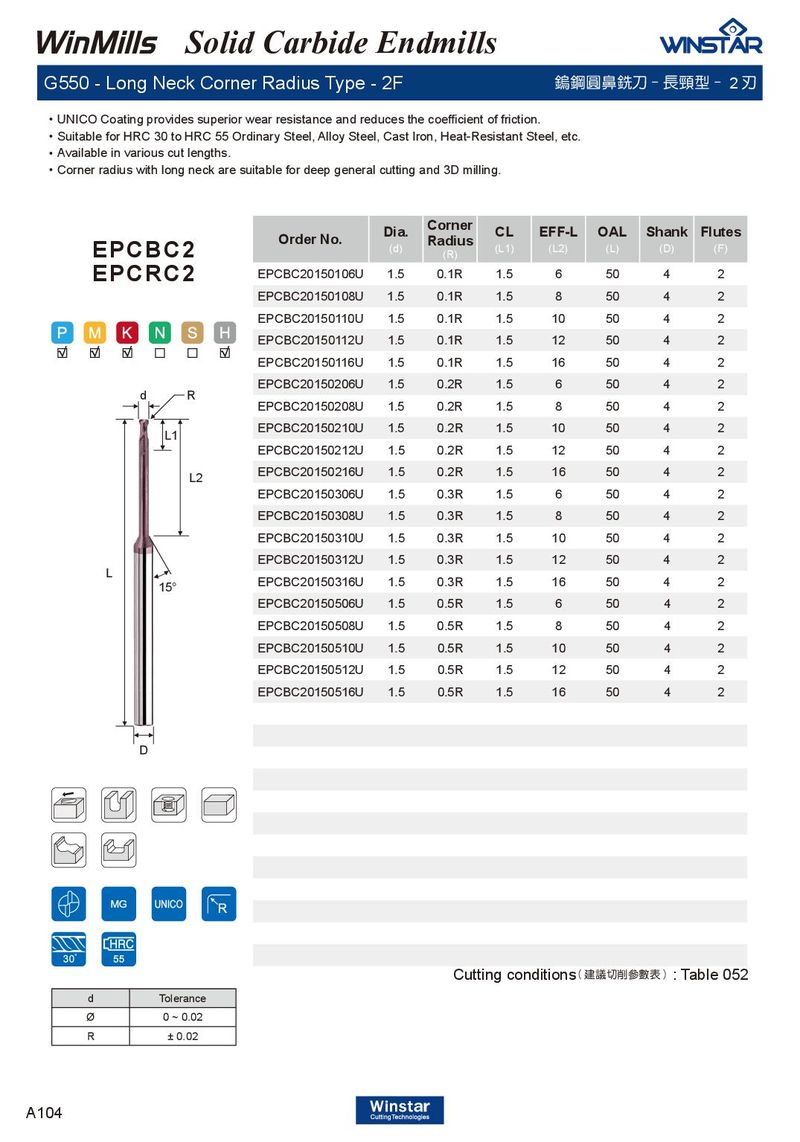

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Available in various cut lengths. ．Corner radius with long neck are suitable for deep general cutting and 3D milling.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPCBC20150106U | 1.5 | 0.1R | 1.5 | 6 | 50 | 4 | 2 |
| EPCBC20150108U | 1.5 | 0.1R | 1.5 | 8 | 50 | 4 | 2 |
| EPCBC20150110U | 1.5 | 0.1R | 1.5 | 10 | 50 | 4 | 2 |
| EPCBC20150112U | 1.5 | 0.1R | 1.5 | 12 | 50 | 4 | 2 |
| EPCBC20150116U | 1.5 | 0.1R | 1.5 | 16 | 50 | 4 | 2 |
| EPCBC20150206U | 1.5 | 0.2R | 1.5 | 6 | 50 | 4 | 2 |
| EPCBC20150208U | 1.5 | 0.2R | 1.5 | 8 | 50 | 4 | 2 |
| EPCBC20150210U | 1.5 | 0.2R | 1.5 | 10 | 50 | 4 | 2 |
| EPCBC20150212U | 1.5 | 0.2R | 1.5 | 12 | 50 | 4 | 2 |
| EPCBC20150216U | 1.5 | 0.2R | 1.5 | 16 | 50 | 4 | 2 |
| EPCBC20150306U | 1.5 | 0.3R | 1.5 | 6 | 50 | 4 | 2 |
| EPCBC20150308U | 1.5 | 0.3R | 1.5 | 8 | 50 | 4 | 2 |
| EPCBC20150310U | 1.5 | 0.3R | 1.5 | 10 | 50 | 4 | 2 |
| EPCBC20150312U | 1.5 | 0.3R | 1.5 | 12 | 50 | 4 | 2 |
| EPCBC20150316U | 1.5 | 0.3R | 1.5 | 16 | 50 | 4 | 2 |
| EPCBC20150506U | 1.5 | 0.5R | 1.5 | 6 | 50 | 4 | 2 |
| EPCBC20150508U | 1.5 | 0.5R | 1.5 | 8 | 50 | 4 | 2 |
| EPCBC20150510U | 1.5 | 0.5R | 1.5 | 10 | 50 | 4 | 2 |
| EPCBC20150512U | 1.5 | 0.5R | 1.5 | 12 | 50 | 4 | 2 |
| EPCBC20150516U | 1.5 | 0.5R | 1.5 | 16 | 50 | 4 | 2 |
EPCRC2
d R L1
L
D
Cutting conditions : Table 052
( 建議切削參數表 )
| d | Tolerance |
| Ø | 0 ~ 0.02 |
| R | ± 0.02 |
