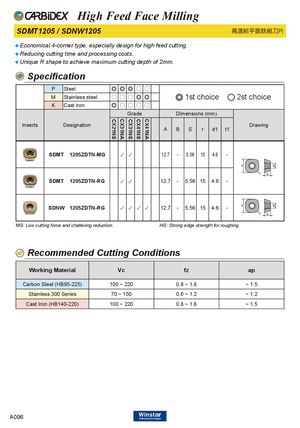

SDMT1205 / SDNW1205 高進給平面銑削刀片

  • Economical 4-corner type, especially design for high feed cutting.
  • Reducing cutting time and processing costs.
  • Unique R shape to achieve maximum cutting depth of 2mm. Specification
PSteel◎ ◎ ◎○ ○
MStainless steel1st choice 2st choice
KCast iron◎○ ○ ○ ○
GradeDimensions (mm)

Inserts Designation Drawing

ABSrd1t1
SDMT 1205ZDTN-MG✓ ✓12.7-5.56 154.6-

SDMT 1205ZDTN-RG ✓ ✓ 12.7 - 5.56 15 4.6 -

SDNW 1205ZDTN-RG ✓ ✓ ✓ ✓ 12.7 - 5.56 15 4.6 -

MG: Low cutting force and chattering reduction. HG: Strong edge strength for roughing. Recommended Cutting Conditions

Working MaterialVcfzap
Carbon Steel (HB85-225)100 ~ 2200.8 ~ 1.8~ 1.5
Stainless 300 Series70 ~ 1500.6 ~ 1.2~ 1.2
Cast Iron (HB140-220)100 ~ 2200.8 ~ 1.8~ 1.5
