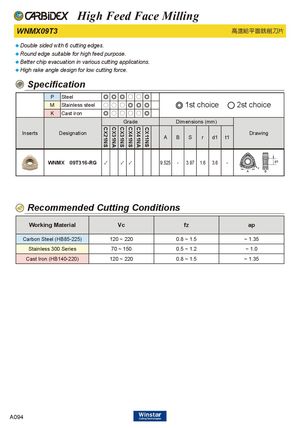

WNMX09T3 高進給平面銑削刀片

♦Double sided with 6 cutting edges. ♦Round edge suitable for high feed purpose. ♦Better chip evacuation in various cutting applications. ♦High rake angle design for low cutting force.

Specification

PSteel◎◎◎○○◎
MStainless steel○○○◎◎◎1stchoice2st choice
KCast iron◎○○○○◎
GradeDimensions(mm)
InsertsDesignationCX21NSCX31NACX31NSCX41NSCX41NACX11NSABSrd1t1Drawing
WNMX 09T316-RG✓✓✓9.525-3.971.63.6-

Recommended Cutting Conditions

Working MaterialVcfzap
Carbon Steel (HB85-225)120 ~ 2200.8 ~ 1.5~ 1.35
Stainless 300 Series70 ~ 1500.5 ~ 1.2~ 1.0
Cast Iron (HB140-220)120 ~ 2200.8 ~ 1.5~ 1.35
