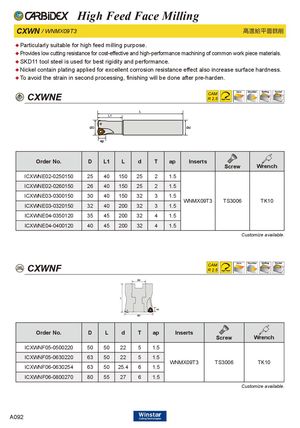

Каталог Carbidex сменные пластины 2020 - страница 94
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
♦Particularly suitable for high feed milling purpose.
- Provides low cutting resistance for cost-effective and high-performance machining of common work piece materials.
♦SKD11 tool steel is used for best rigidity and performance.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
♦To avoid the strain in second processing, finishing will be done after pre-harden.
CXWNE
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| ICXWNE02-0250150 | 25 | 40 | 150 | 25 | 2 | 1.5 | |||
| ICXWNE02-0260150 | 26 | 40 | 150 | 25 | 2 | 1.5 | |||
| ICXWNE03-0300150 | 30 | 40 | 150 | 32 | 3 | 1.5 | WNMX09T3 | TS3006 | TK10 |
| ICXWNE03-0320150 | 32 | 40 | 200 | 32 | 3 | 1.5 | |||
| ICXWNE04-0350120 | 35 | 45 | 200 | 32 | 4 | 1.5 | |||
| ICXWNE04-0400120 | 40 | 45 | 200 | 32 | 4 | 1.5 |
Customize available.
CXWNF
ap
| Order No. | D | L | d | T | ap | Inserts | Screw | Wrench |
| ICXWNF05-0500220 | 50 | 50 | 22 | 5 | 1.5 | |||
| ICXWNF05-0630220 | 63 | 50 | 22 | 5 | 1.5 | WNMXT | TS | TK1 |
| ICXWNF06-0630254 | 63 | 50 | 25.4 | 6 | 1.5 | 093 | 3006 | 0 |
| ICXWNF06-0800270 | 80 | 55 | 27 | 6 | 1.5 |
Customize available.
