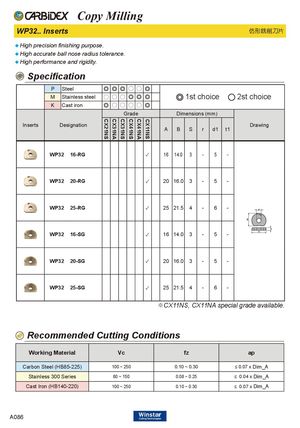

WP32.. Inserts 仿形銑削刀片
- High precision finishing purpose.
- High accurate ball nose radius tolerance.
- High performance and rigidity. Specification
| P St | eel | ◎ | ◎ | ◎ | ○ | ○◎ | ||||||||
| M St | ainless steel | ○ | ○ | ○ | ◎ | ◎◎ | 1st | cho | ice | 2st choice | ||||
| K Ca | st iron | ◎ | ○ | ○ | ○ | ○◎ | ||||||||
| It | D | iti | CX | CX | G CX | rad CX | e CX CX | Dim | ensio | ns( | mm) | Di | ||
| nsers | e | gnaon | 21NS | 31NA | 31NS | 41NS | 41NA 11NS | A | B | S | r | d1 | t1 | rawng |
| WP32 | 16-RG | ✓ | 16 | 14.0 | 3 | - | 5 | - | ||||||
| WP32 | 20-RG | ✓ | 20 | 16.0 | 3 | - | 5 | - | ||||||
| WP32 | 25-RG | ✓ | 25 | 21.5 | 4 | - | 6 | - | ||||||
| WP32 | 16-SG | ✓ | 16 | 14.0 | 3 | - | 5 | - | ||||||
| WP32 | 20-SG | ✓ | 20 | 16.0 | 3 | - | 5 | - | ||||||
| WP32 | 25-SG | ✓ | 25 | 21.5 | 4 | - | 6 | - |
※CX11NS, CX11NA special grade available.
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 100 ~ 250 | 0.10 ~ 0.30 | ≤ 0.07 xDimA |
| Stainless 300 Series | 80 ~ 150 | 0.08 ~ 0.25 | ≤ 0.04 xDimA |
| Cast Iron (HB140-220) | 100 ~ 250 | 0.10 ~ 0.30 | ≤ 0.07 xDimA |
