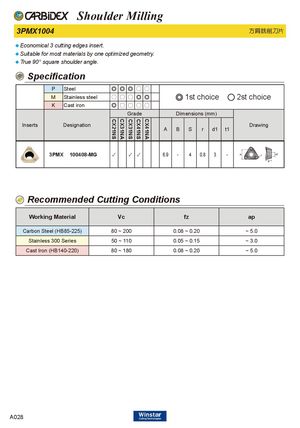

3PMX1004 方肩銑削刀片
♦Economical 3 cutting edges insert. ♦Suitable for most materials by one optimized geometry. ♦True 90° square shoulder angle.
Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | ||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st choice | ||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | ||||||||
| Gra | de | Dim | ensi | ons( | mm) | |||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Drawing | |
| 3PM | X 100408-MG | ✓ | ✓ | ✓ | 6.9 | - | 4 | 0.8 | 3 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.08 ~ 0.20 | ~ 5.0 |
| Stainless 300 Series | 50 ~ 110 | 0.05 ~ 0.15 | ~ 3.0 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.08 ~ 0.20 | ~ 5.0 |
