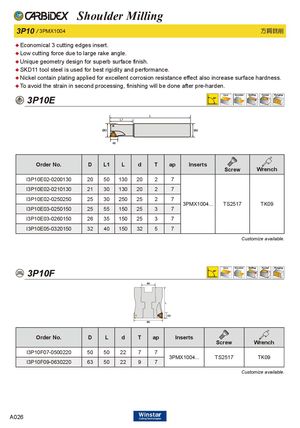

♦Economical 3 cutting edges insert.
- Low cutting force due to large rake angle.
♦Unique geometry design for superb surface finish.
- SKD11 tool steel is used for best rigidity and performance.
♦Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦To avoid the strain in second processing, finishing will be done after pre-harden.
3P10E
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| I3P10E02-0200130 | 20 | 50 | 130 | 20 | 2 | 7 | |||
| I3P10E02-0210130 | 21 | 30 | 130 | 20 | 2 | 7 | |||
| I3P10E02-0250250 | 25 | 30 | 250 | 25 | 2 | 7 | 3PMX1004 | TS2517 | TK09 |
| I3P10E03-0250150 | 25 | 55 | 150 | 25 | 3 | 7 | ... | ||
| I3P10E03-0260150 | 26 | 35 | 150 | 25 | 3 | 7 | |||
| I3P10E05-0320150 | 32 | 40 | 150 | 32 | 5 | 7 |
Customize available.
3P10F
ap
| Order No. | D | L | d | T | ap | Inserts | Screw | Wrench |
| I3P10F07-0500220 I3P10F09-0630220 | 50 63 | 50 50 | 22 22 | 7 9 | 7 7 | 3PMX1004... | TS2517 | TK09 |
Customize available.
