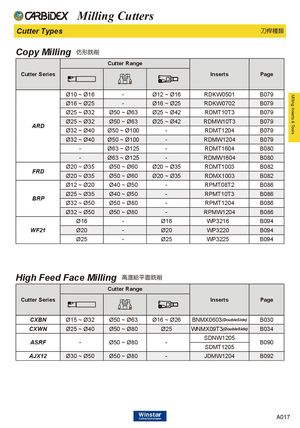

Copy Milling
仿形銑削
| Cutter Range | |||||
| Cutter Series | Inserts | Page | |||
| Ø10 ~ Ø16 | - | Ø12 ~ Ø16 | RDKW0501 | B079 | |
| Ø16 ~ Ø25 | - | Ø16 ~ Ø25 | RDKW0702 | B079 | |
| Ø25 ~ Ø32 | Ø50 ~ Ø63 | Ø25 ~ Ø42 | RDMT10T3 | B079 | |
| ARD | Ø25 ~ Ø32 | Ø50 ~ Ø63 | Ø25 ~ Ø42 | RDMW10T3 | B079 |
| Ø32 ~ Ø40 | Ø50 ~ Ø100 | - | RDMT1204 | B079 | |
| Ø32 ~ Ø40 | Ø50 ~ Ø100 | - | RDMW1204 | B079 | |
| - | Ø63 ~ Ø125 | - | RDMT1604 | B080 | |
| - | Ø63 ~ Ø125 | - | RDMW1604 | B080 | |
| FRD | Ø20 ~ Ø35 | Ø50 ~ Ø60 | Ø20 ~ Ø35 | RDMT1003 | B082 |
| Ø20 ~ Ø35 | Ø50 ~ Ø60 | Ø20 ~ Ø35 | RDMX1003 | B082 | |
| Ø12 ~ Ø20 | Ø40 ~ Ø50 | - | RPMT08T2 | B086 | |
| BRP | Ø25 ~ Ø35 | Ø40 ~ Ø50 | - | RPMT10T3 | B086 |
| Ø32 ~ Ø50 | Ø50 ~ Ø80 | - | RPMT1204 | B086 | |
| Ø32 ~ Ø50 | Ø50 ~ Ø80 | - | RPMW1204 | B086 | |
| Ø16 | - | Ø16 | WP3216 | B094 | |
| WF21 | Ø20 | - | Ø20 | WP3220 | B094 |
| Ø25 | - | Ø25 | WP3225 | B094 |
High Feed Face Milling
高進給平面銑削
| Cutter Range | |||||
| Cutter Series | Inserts | Page | |||
| CXBN | Ø15 ~ Ø32 | Ø50 ~ Ø63 | Ø16 ~ Ø26 | BNMX0603(DoubleSide) | B030 |
| CXWN | Ø25 ~ Ø40 | Ø50 ~ Ø80 | Ø25 | WNMX09T3(DoubleSide) | B034 |
| ASRF | - | Ø50 ~ Ø80 | - | SDNW1205 SDMT1205 | B090 |
| AJX12 | Ø30 ~ Ø50 | Ø50 ~ Ø80 | - | JDMW1204 | B092 |
