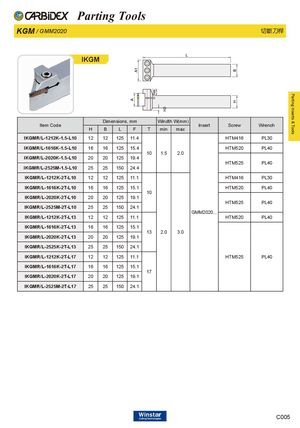

KGM / GMM2020 切斷刀桿
IKGM
| Item Code | Dim | ensions | , mm | Windth | W(mm) | Insert | Screw | Wrench | ||
| H | B | L | F | T | min | max | ||||
| IKGMR/L-1212K-1.5-L10 | 12 | 12 | 125 | 11.4 | HTM416 | PL30 | ||||
| IKGMR/L-1616K-1.5-L10 | 16 | 16 | 125 | 15.4 | 10 | 15 | 20 | HTM520 | PL40 | |
| IKGMR/L-2020K-1.5-L10 | 20 | 20 | 125 | 19.4 | . | . | HTM525 | PL40 | ||
| IKGMR/L-2525M-1.5-L10 | 25 | 25 | 150 | 24.4 | ||||||
| IKGMR/L-1212K-2T-L10 | 12 | 12 | 125 | 11.1 | HTM416 | PL30 | ||||
| IKGMR/L-1616K-2T-L10 | 16 | 16 | 125 | 15.1 | 10 | HTM520 | PL40 | |||
| IKGMR/L-2020K-2T-L10 | 20 | 20 | 125 | 19.1 | HTM525 | PL40 | ||||
| IKGMR/L-2525M-2T-L10 | 25 | 25 | 150 | 24.1 | GMM2020 | |||||
| IKGMR/L-1212K-2T-L13 | 12 | 12 | 125 | 11.1 | ... | HTM520 | PL40 | |||
| IKGMR/L-1616K-2T-L13 | 16 | 16 | 125 | 15.1 | 13 | 20 | 30 | |||
| IKGMR/L-2020K-2T-L13 | 20 | 20 | 125 | 19.1 | . | . | ||||
| IKGMR/L-2525K-2T-L13 | 25 | 25 | 150 | 24.1 | ||||||
| IKGMR/L-1212K-2T-L17 | 12 | 12 | 125 | 11.1 | HTM525 | PL40 | ||||
| IKGMR/L-1616K-2T-L17 | 16 | 16 | 125 | 15.1 | ||||||
| IKGMR/L-2020K-2T-L17 | 20 | 20 | 125 | 19.1 | 17 | |||||
| IKGMR/L-2525M-2T-L17 | 25 | 25 | 150 | 24.1 |
