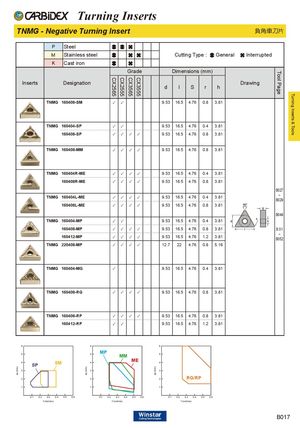

| TNMG - | P Neg | Steel ative Turning | Ins | e | rt | 負角車 | 刀片 | ||||||
| M | Stainless steel | Cutt | ing Ty | pe : | Gen | eral Interrupted | |||||||
| K | Cast iron | ||||||||||||
| C | C | Gr C | ade C | Dime | nsions | (mm | ) | Tool | |||||
| Inserts | Designation | X2565 | X2555 | X3565 | X3555 | d | l | S | r | h | Drawing | Page | |
| TNMG | 160408-SM | ✓ | ✓ | 9.53 | 16.5 | 4.76 | 0.8 | 3.81 | |||||
| TNMG | 160404-SP 160408-SP | ✓ ✓ | ✓ ✓ | ✓ | ✓ | 9.53 9.53 | 16.5 16.5 | 4.76 4.76 | 0.4 0.8 | 3.81 3.81 | |||
| TNMG | 160408-MM | ✓ | ✓ | ✓ | ✓ | 9.53 | 16.5 | 4.76 | 0.8 | 3.81 | |||
| TNMG | 160404R-ME 160408R-ME | ✓ ✓ | ✓ ✓ | ✓ ✓ | ✓ ✓ | 9.53 9.53 | 16.5 16.5 | 4.76 4.76 | 0.4 0.8 | 3.81 3.81 | B027 | ||
| TNMG | 160404L-ME 160408L-ME | ✓ ✓ | ✓ ✓ | ✓ ✓ | ✓ ✓ | 9.53 9.53 | 16.5 16.5 | 4.76 4.76 | 0.4 0.8 | 3.81 3.81 | ~ B029 B049 | ||
| TNMG | 160404-MP 160408-MP | ✓ ✓ | ✓ ✓ | ✓ | ✓ | 9.53 9.53 | 16.5 16.5 | 4.76 4.76 | 0.4 0.8 | 3.81 3.81 | B.51 | ||
| 160412-MP | ✓ | ✓ | ✓ | ✓ | 9.53 | 16.5 | 4.76 | 1.2 | 3.81 | ~ B052 | |||
| TNMG | 220408-MP | ✓ | ✓ | ✓ | ✓ | 12.7 | 22 | 4.76 | 0.8 | 5.16 | |||
| TNMG | 160404-MG | ✓ | 9.53 | 16.5 | 4.76 | 0.4 | 3.81 | ||||||
| TNMG | 160408-RG | ✓ | ✓ | ✓ | ✓ | 9.53 | 16.5 | 4.76 | 0.8 | 3.81 | |||
| TNMG | 160408-RP 160412-RP | ✓ ✓ | ✓ ✓ | ✓ | ✓ | 9.53 9.53 | 16.5 16.5 | 4.76 4.76 | 0.8 1.2 | 3.81 3.81 |
| 6 | 6 | 6 |
| MP | ||
| 5 | 5 | MM 5 |
| SM | ME | |
| 4 | SP 4 | 4 |
| 3 | 3 | 3 |
| RG/RP | ||
| 2 | 2 | 2 |
f (mm/rev) f (mm/rev) f (mm/rev)
