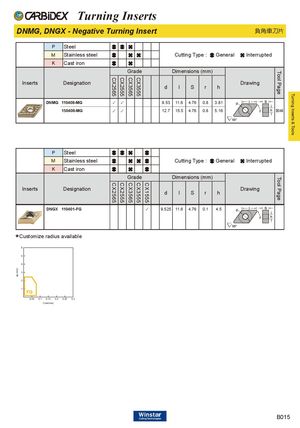

| DNMG, | DNG | X - Negative | Tur | ni | ng | Insert | 負角車 | 刀片 | |||||
| P | Steel | ||||||||||||
| M | Stainless steel | Cutti | ng Typ | e : | Gener | al Interrupted | |||||||
| K | Cast iron | ||||||||||||
| C | C | Gra C | de C | Dimen | sions | (mm | ) | Tool | |||||
| Inserts | Designation | X2565 | X2555 | X3565 | X3555 | d | l | S | r | h | Drawing | Page | |
| DNMG | 110408-MG | ✓ | ✓ | 9.53 | 11.6 | 4.76 | 0.8 | 3.81 | |||||
| 150408-MG | ✓ | ✓ | 12.7 | 15.5 | 4.76 | 0.8 | 5.16 | B049 | |||||
| P | Steel | ||||||||||||
| M | Stainless steel | Cutti | ng Typ | e : | Gener | al Interrupted | |||||||
| K | Cast iron | ||||||||||||
| Inserts | Designation | CX2565 | CX2555 | Gra CX3565 | de CX3555 CX1555 | d | Dimen l | sions S | (mm r | ) h | Drawing | Tool Page | |
| DNGX | 110401-FG | ✓ | 9.525 | 11.6 | 4.76 | 0.1 | 4.5 |
*Customize radius available
6 5 4 3 2 1 FG
0.05 0.1 0.15 0.2 0.25 0.3
f (mm/rev)
