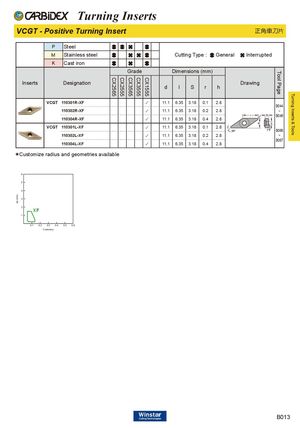

| VCGT - | Posi | tive Turning | Inse | r | t | 正角車 | 刀片 | ||||||
| P | Steel | ||||||||||||
| M | Stainless steel | Cutti | ng Ty | pe : | Gen | eral Interrupted | |||||||
| K | Cast iron | ||||||||||||
| Gra | de | Dime | nsions | (mm | ) | To | |||||||
| Inserts | Designation | CX2565 | CX2555 | CX3565 | CX3555 CX1555 | d | l | S | r | h | Drawing | ol Page | |
| VCGT | 110301R-XF | ✓ | 11.1 | 6.35 | 3.18 | 0.1 | 2.8 | B044 | |||||
| 110302R-XF 110304R-XF | ✓ ✓ | 11.1 11.1 | 6.35 6.35 | 3.18 3.18 | 0.2 0.4 | 2.8 2.8 | ~ B046 | ||||||
| VCGT | 110301L-XF | ✓ | 11.1 | 6.35 | 3.18 | 0.1 | 2.8 | B066 | |||||
| 110302L-XF | ✓ | 11.1 | 6.35 | 3.18 | 0.2 | 2.8 | ~ | ||||||
| 110304L-XF | ✓ | 11.1 | 6.35 | 3.18 | 0.4 | 2.8 | B067 |
*Customize radius and geometries available
6 5 4 3 2 XF 1
0.1 0.2 0.3 0.4 0.5 0.6
f (mm/rev)
