Additional information

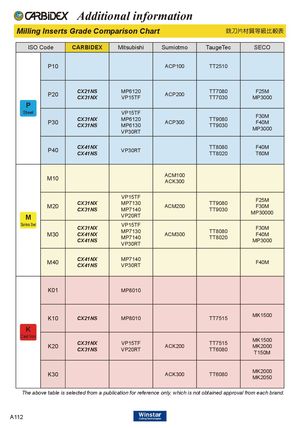

| Milling Inserts | Grade Com | parison Cha | rt | 銑刀 | 片材質等級比較表 |
| ISO Code | CARBIDEX | Mitsubishi | Sumiotmo | TaugeTec | SECO |
| P10 | ACP100 | TT2510 | |||
| P P20 | CX21NS CX31NX | MP6120 VP15TF | ACP200 | TT7080 TT7030 | F25M MP3000 |
| Steel P30 | CX31NX CX31NS | VP15TF MP6120 MP6130 VP30RT | ACP300 | TT9080 TT9030 | F30M F40M MP3000 |
| P40 | CX41NX CX41NS | VP30RT | TT8080 TT8020 | F40M T60M | |
| M10 | ACM100 ACK300 | ||||
| M M20 | CX31NX CX31NS | VP15TF MP7130 MP7140 VP20RT | ACM200 | TT9080 TT9030 | F25M F30M MP30000 |
| Stainless Steel M30 | CX31NX CX41NX CX41NS | VP15TF MP7130 MP7140 VP30RT | ACM300 | TT8080 TT8020 | F30M F40M MP3000 |
| M40 | CX41NX CX41NS | MP7140 VP30RT | F40M | ||
| K01 | MP8010 | ||||
| K K10 | CX21NS | MP8010 | TT7515 | MK1500 | |
| Cast Iron K20 | CX31NX CX31NS | VP15TF VP20RT | ACK200 | TT7515 TT6080 | MK1500 MK2000 T150M |
| K30 | ACK300 | TT6080 | MK2000 MK2050 |
The above table is selected from a publication for reference only, which is not obtained approval from each brand.
