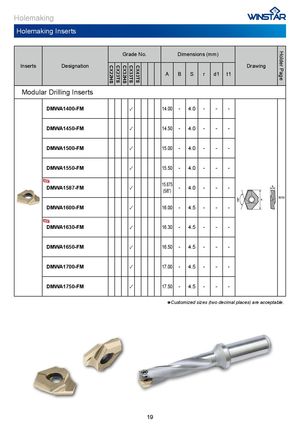

Grade No. Dimensions (mm)
Inserts Designation CX22HS CX23TS CX32HS CX33TS CX43TS Drawing
| A | B S | r | d1 | t1 | ||
| Modular Drilling Inserts | ||||||
| DMWA1400-FM | ✓ | 14.00 - | 4.0 | - | - | - |
| DMWA1450-FM | ✓ | 14.50 - | 4.0 | - | - | - |
| DMWA1500-FM | ✓ | 15.00 - | 4.0 | - | - | - |
| DMWA1550-FM | ✓ | 15.50 - | 4.0 | - | - | - |
| DMWA1587-FM | 15.875 | |||||
| ✓ | - 4.0 | - | - | - | ||
| (5/8") | ||||||
| B050 | ||||||
| DMWA1600-FM | ✓ | 16.00 - | 4.5 | - | - | - |
| DMWA1630-FM | ✓ | 16.30 - | 4.5 | - | - | - |
| DMWA1650-FM | ✓ | 16.50 - | 4.5 | - | - | - |
| DMWA1700-FM | ✓ | 17.00 - | 4.5 | - | - | - |
| DMWA1750-FM | ✓ | 17.50 - | 4.5 | - | - | - |
*Customized sizes (two decimal places) are acceptable.
