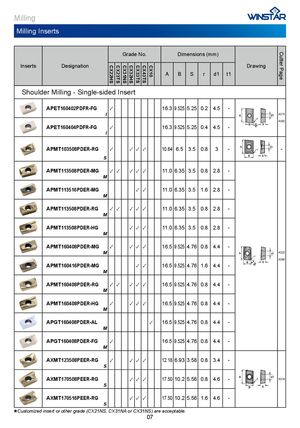

Брошюра Winstar пластины 2021

Grade No. Dimensions (mm)

Inserts Designation CX22HS CX23TS CX31NS CX32HS CX33TS CX43TS CX10 Drawing

				A	d1 r S B t1
Shoulder Milling - Single-sided Insert
APET160402PDFR-FG		✓		16.3 9.525 5.25 0.2 4.5	-
		I			A315
					A392
APET160404PDFR-FG		✓		16.3 9.525 5.25 0.4 4.5	-
		I
APMT103508PDER-RG		✓	✓ ✓ ✓	10.64 6.5 3.5 0.8	- 3 -
	S
APMT113508PDER-MG		✓ ✓	✓ ✓ ✓	11.0 6.35 3.5 0.8 2.8	-
	M
APMT113516PDER-MG				✓ ✓ 11.0 6.35 3.5 1.6 2.8	-
	M
APMT113508PDER-RG		✓ ✓	✓ ✓ ✓	11.0 6.35 3.5 0.8 2.8	-
	M
APMT113508PDER-HG			✓ ✓ ✓	11.0 6.35 3.5 0.8 2.8	-
	M
APMT160408PDER-MG		✓	✓ ✓ ✓	16.5 9.525 4.76 0.8 4.4	-
	M				A323
					A390
APMT160416PDER-MG				✓ ✓ 16.5 9.525 4.76 1.6 4.4	-
	M
APMT160408PDER-RG		✓ ✓	✓ ✓ ✓	16.5 9.525 4.76 0.8 4.4	-
	M
APMT160408PDER-HG		✓	✓ ✓ ✓	16.5 9.525 4.76 0.8 4.4	-
	M
APGT160408PDER-AL				✓ 16.5 9.525 4.76 0.8 4.4	-
	M
APGT160408PDER-FG		✓		16.5 9.525 4.76 0.8 4.4	-
	M
AXMT123508PEER-RG		✓	✓ ✓ ✓	12.18 6.93 3.58 0.8 3.4	-
	S
AXMT170508PEER-RG			✓ ✓ ✓	17.50 10.2 5.56 0.8 4.6	A319 -
	S
AXMT170516PEER-RG			✓ ✓ ✓	17.50 10.2 5.56 1.6 4.6	-
