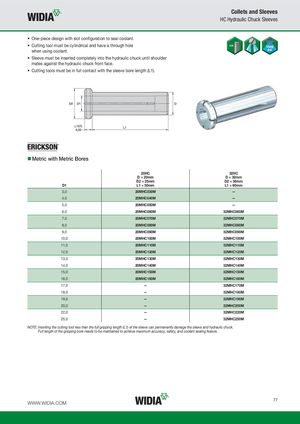

Collets and Sleeves
HC Hydraulic Chuck Sleeves
- One-piece design with slot configuration to seal coolant.
- Cutting tool must be cylindrical and have a through hole when using coolant.
- Sleeve must be inserted completely into the hydraulic chuck until shoulder mates against the hydraulic chuck front face.
- Cutting tools must be in full contact with the sleeve bore length (L1).
Metric with Metric Bores
| D1 | 20HC D = 20mm D2 = 25mm L1 = 50mm | 32HC D = 32mm D2 = 36mm L1 = 60mm |
| 3,0 | 20MHC030M | — |
| 4,0 | 20MHC040M | — |
| 5,0 | 20MHC050M | — |
| 6,0 | 20MHC060M | 32MHC060M |
| 7,0 | 20MHC070M | 32MHC070M |
| 8,0 | 20MHC080M | 32MHC080M |
| 9,0 | 20MHC090M | 32MHC090M |
| 10,0 | 20MHC100M | 32MHC100M |
| 11,0 | 20MHC110M | 32MHC110M |
| 12,0 | 20MHC120M | 32MHC120M |
| 13,0 | 20MHC130M | 32MHC130M |
| 14,0 | 20MHC140M | 32MHC140M |
| 15,0 | 20MHC150M | 32MHC150M |
| 16,0 | 20MHC160M | 32MHC160M |
| 17,0 | — | 32MHC170M |
| 18,0 | — | 32MHC180M |
| 19,0 | — | 32MHC190M |
| 20,0 | — | 32MHC200M |
| 22,0 | — | 32MHC220M |
| 25,0 | — | 32MHC250M |
NOTE: Inserting the cutting tool less than the full gripping length (L1) of the sleeve can permanently damage the sleeve and hydraulic chuck. Full length of the gripping bore needs to be maintained to achieve maximum accuracy, safety, and coolant sealing feature.
