| Cutting Tool Sha metric(IS cutting tool | nk Requ O standa | irements rd) |
| shank diameter | tolerance | |
| 6 | h6 | 0,000/-0,008 |
| 8 & 10 | h6 | 0,000/-0,009 |
| 12, 14, 16, & 18 | h6 | 0,000/-0,011 |
| 20 | h6 | 0,000/-0,013 |

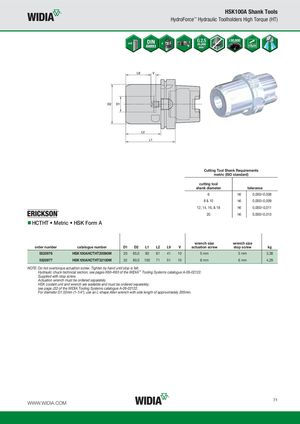

HCTHT • Metric • HSK Form A
| order number | catalogue number | D1 | D2 | L1 | L2 | L9 | V | wrench size actuation screw | wrench size stop screw | kg |
| 5520976 | HSK100AHCTHT20090M | 20 | 65,0 | 90 | 61 | 41 | 10 | 5 mm | 5 mm | 3,38 |
| 5520977 | HSK100AHCTHT32100M | 32 | 80,0 | 100 | 71 | 51 | 10 | 6 mm | 6 mm | 4,29 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see pages K60–K63 of the WIDIA™ Tooling Systems catalogue A-09-02122. Supplied with stop screw. Actuation wrench must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page J32 of the WIDIA Tooling Systems catalogue A-09-02122. For diameter D1 32mm (1-1/4"), use an L-shape Allen wrench with side length of approximately 200mm.
