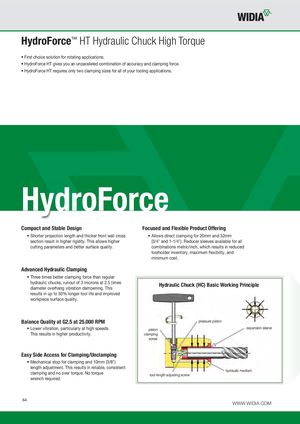

HydroForce™ HT Hydraulic Chuck High Torque

• First choice solution for rotating applications.
• HydroForce HT gives you an unparalleled combination of accuracy and clamping force.
• HydroForce HT requires only two clamping sizes for all of your tooling applications.

HydroForce y

Compact and Stable Design Focused and Flexible Product Offering

• Shorter projection length and thicker front wall cross
• Allows direct clamping for 20mm and 32mm

section result in higher rigidity. This allows higher (3/4" and 1-1/4"). Reducer sleeves available for all cutting parameters and better surface quality. combinations metric/inch, which results in reduced toolholder inventory, maximum fl exibility, and minimum cost.

Advanced Hydraulic Clamping

• Three times better clamping force than regular hydraulic chucks, runout of 3 microns at 2.5 times Hydraulic Chuck (HC) Basic Working Principle diameter overhang vibration dampening. This results in up to 50% longer tool life and improved workpiece surface quality.

Balance Quality at G2.5 at 25.000 RPM

• Lower vibration, particularly at high speeds. This results in higher productivity.

Easy Side Access for Clamping/Unclamping

• Mechanical stop for clamping and 10mm (3/8") length adjustment. This results in reliable, consistent clamping and no over torque. No torque wrench required.

pressure piston expansion sleeve piston clamping screw

hydraulic medium tool length adjusting screw
